SKF MKU Series - Hydraulic and Electrical Connections

33
4
Exa
mpl
e for Hydraulic c
onnection
MKF
, Fig.
7

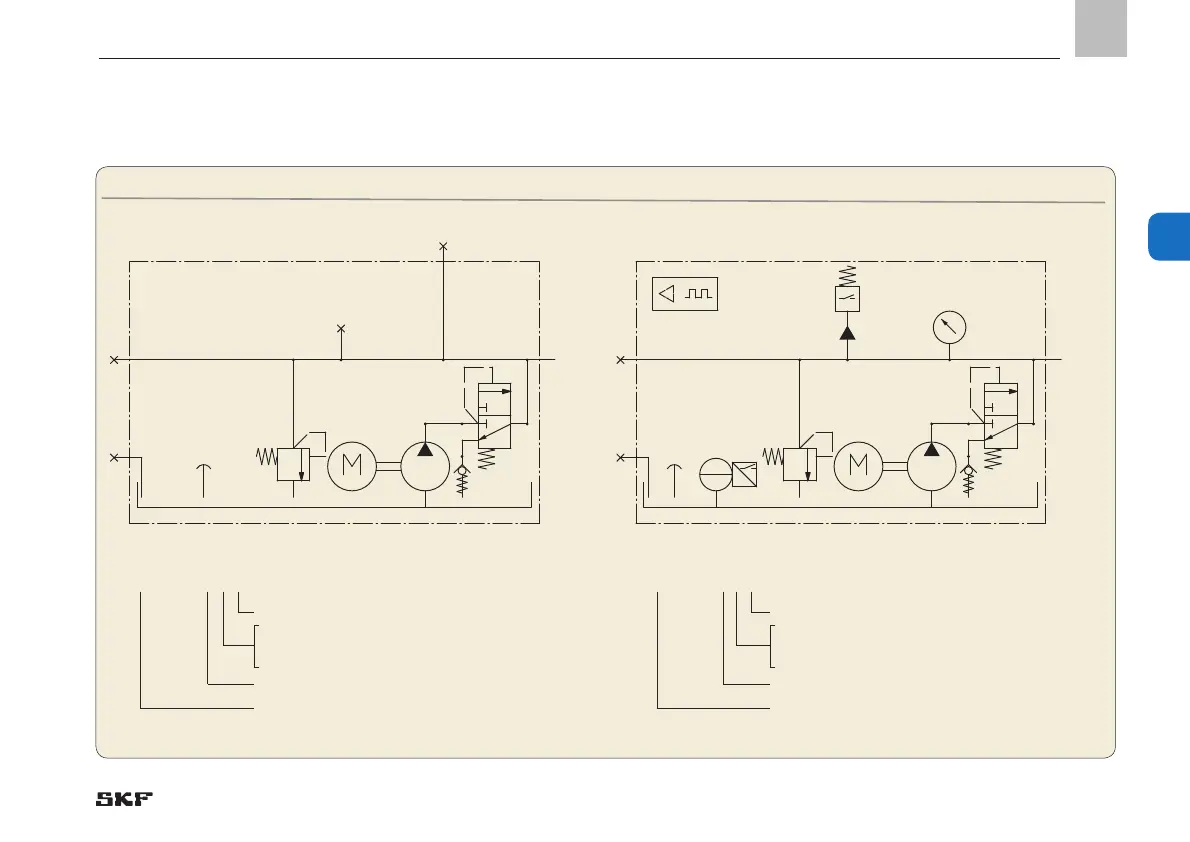

4.3.5 Example hydraulic connection MKF
P P
R
G1/4
0,5 bar
30 bar
P P
0,5 bar
30 bar
20 bar
L
R
G1/4
MKF x - 1xAX0x000+xxx
without optional Pressure gauge
without optional Fill level switch (NC)
without optional Pressure switch (20 bar)
with control unit A
for Fluid grease lubricant
MKF x-1xCC1x000+xxx
with Pressure gauge
with Fill level switch (NC)
with Pressure switch (20 bar)
with control unit A
for Fluid grease lubricant
EN
4. Assembly
