SKF MKU Series - Replacing a Defective Fuse (24 VDC)

91
9
• Resolve the cause of the malfunction
• Disconnect the gear pump unit from the
power supply
• Loosen screws on both sides of the
motor's cover cap using a screwdriver
• Carefully lift the cover cap and put it aside
•
Push in the bayonet closure (1) of the fuse
housing and loosen it counterclockwise

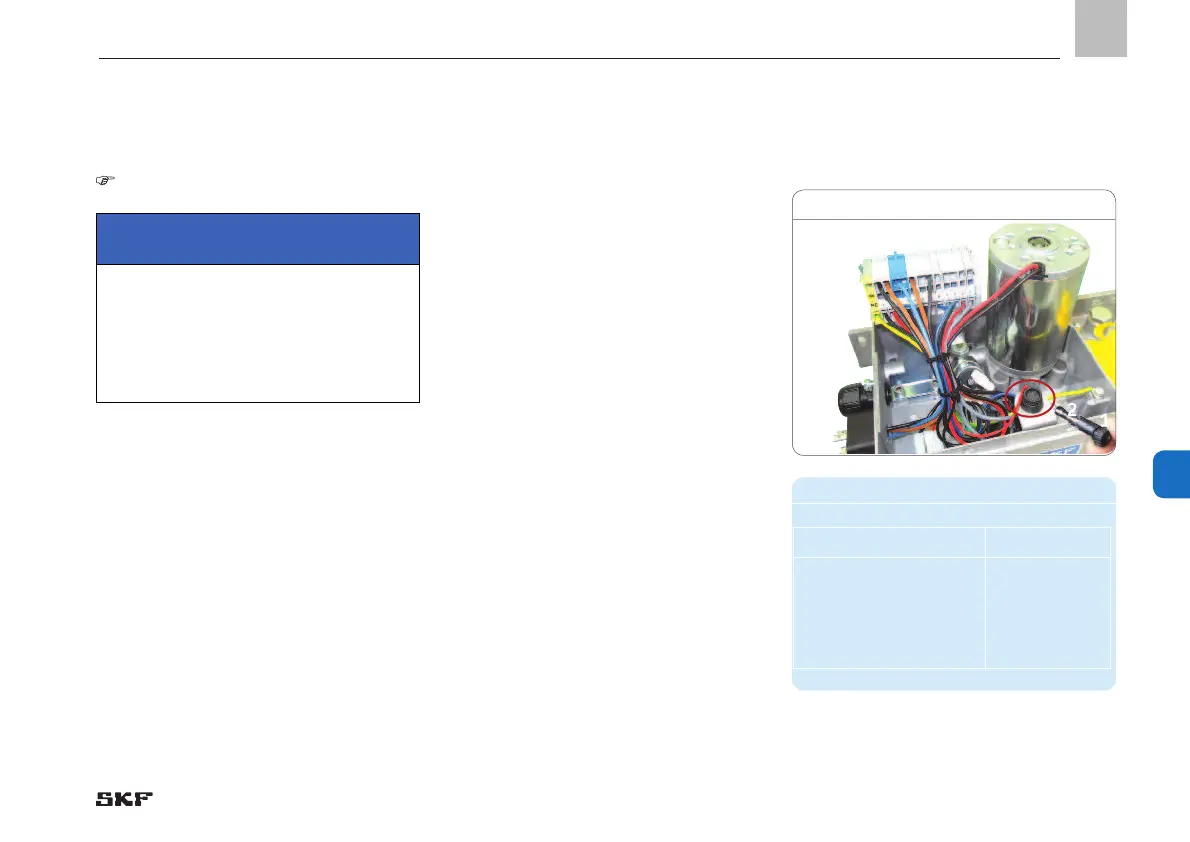

Fuse replacement, Fig. 5
9.2 Replacing a defective fuse (24 VDC)
• Replace the defective fuse (2) with a new
fuse of the same type
• Push the bayonet closure(1) of the fuse
housing into the fuse box and turn it
clockwise to seal
• Apply the cover cap and tighten both
screws
• Connect the gear pump unit to the power
supply
• Switch on the gear pump unit
• Conduct a functional test
See Figure 5
Spare part, Table 5
Designation Order No.
Fuse
Fuse-link (5x20mm)
T2A acc. to DIN EN
60127-2
(VDE 0820-2)
standard sheet 3
179-990-206
EN
9. Malfunctions, causes, and remedies
NOTE
The cause of the malfunction must be re-
solved prior to replacing the defective fuse.
The defective fuse may only be replaced
with a fuse of the same type.
