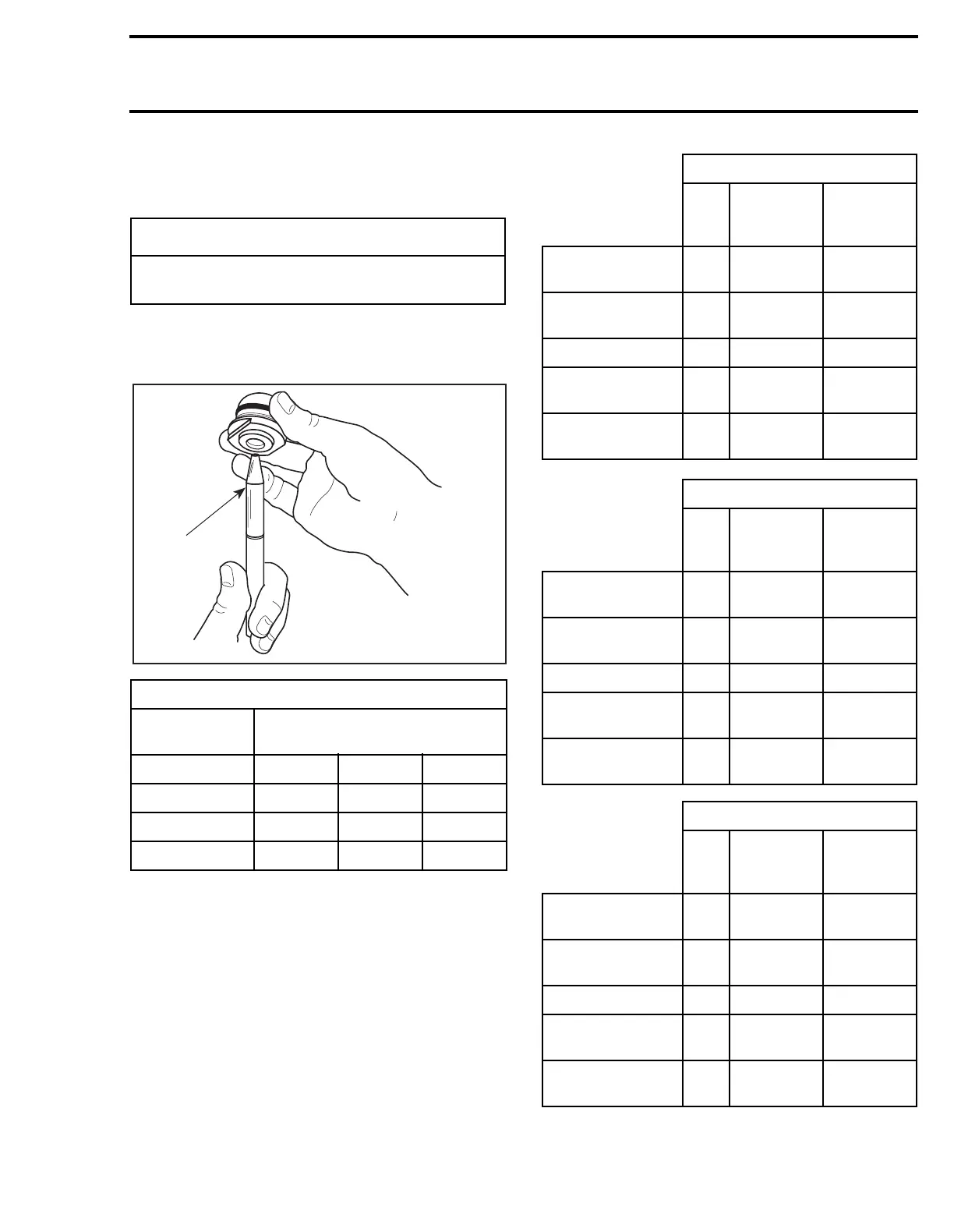

Ski-Doo FORMULA SL 1997 User Manual

Section 06 REAR SUSPENSION
Sub-Section 02 (SC-10 SUSPENSIONS (ALL VERSIONS))
06-02-15
If the seal carrier assembly is replaced, use seal
pilot (P/N 529 0265 00) to guide seal over damper
shaft. Lubricate seal carrier guide pilot before use.
Reassemble damper rod assembly, using care to
properly assemble shim packs as required for
your damping needs.
-
CAUTION
Failure to use seal pilot will result in seal
damage.
SHIM EQUIVALENCE FOR SAME DIAMETER
THICKNESS
mm
SHIM QUANTITY
0.114 11 5.6 2.4
0.152 4.7 2.4 1
0.203 2 1
0.254 1
A06F12A
529 0265 00
FRONT
QTY
D
mm
(in)
Thick
mm
(in)
Spacer 1
12 mm
(0.472 in)
0.023 mm
(0.008 in)
Extension shims 5
26 mm
(1.020 in)
0.203 mm
(0.008 in)
Piston slit 4
Compression
shims
8
30 mm
(1.180 in)
0.152 mm
(0.006 in)
Spacer 2
15 mm
(0.590)
0.114 mm
(0.0045 in)
CENTER
QTY
D
mm
(in)
Thick
mm
(in)
Spacer 1
12 mm
(0.472 in)
0.023 mm
(0.008 in)
Extension shims 8
26 mm
(1.020 in)
0.152 mm
(0.006 in)
Piston slit 4
Compression
shims
10
30 mm
(1.180 in)
0.203 mm
(0.008 in)
Spacer 3
16 mm
(0.630)
0.203 mm
(0.008 in)
REAR
QTY
D
mm
(in)
Thick
mm
(in)
Spacer 1
15 mm
(0.590 in)
0.023 mm
(0.008 in)
Extension shims 10
26 mm
(1.02 in)
0.152 mm
(0.006 in)
Piston slit 2
Compression
shims
7
30 mm
(1.180 in)
0.203 mm
(0.008 in)
Spacer 3
15 mm
(0.590)
0.203 mm
(0.008 in)
