Page 102 (Model J)

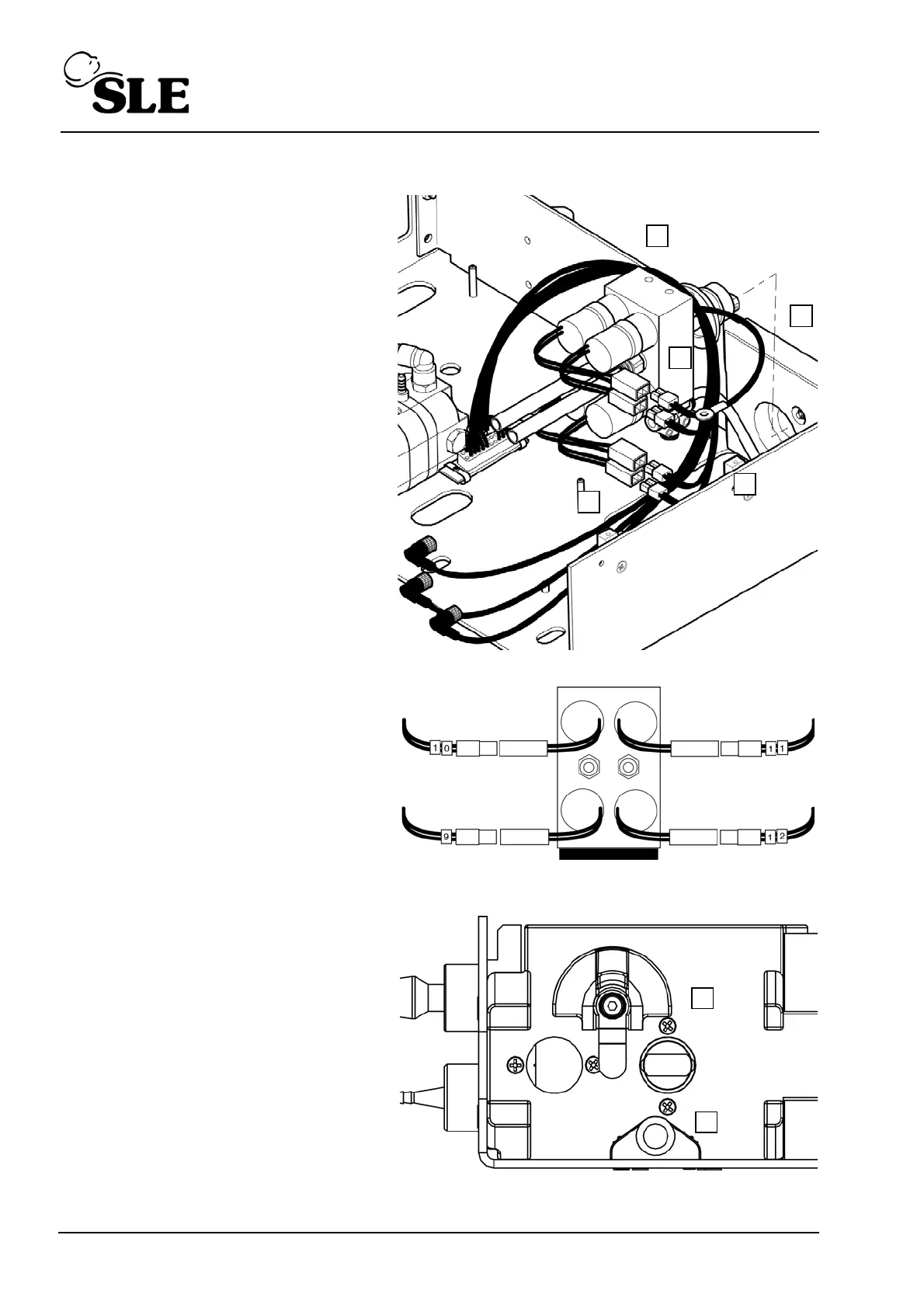

16.6.7 Installation of new high speed valve assembly
1. Insert the new high speed valve
assembly (A) into the partition
assembly (B). Connect the electrical
connectors (C) as per the following
diagram.
Ensure that the black foam pad is
next to the bulkhead.
Ensure that tube (D) is below the jet
block.
Note: Electrical connections for high
speed valves.
2. Insert the two screws (E) to retain
the jet block.
Note: Apply a thread locking
compound to the threads.


A
D


C
C

B


E
E
