Page 106 (Model J)

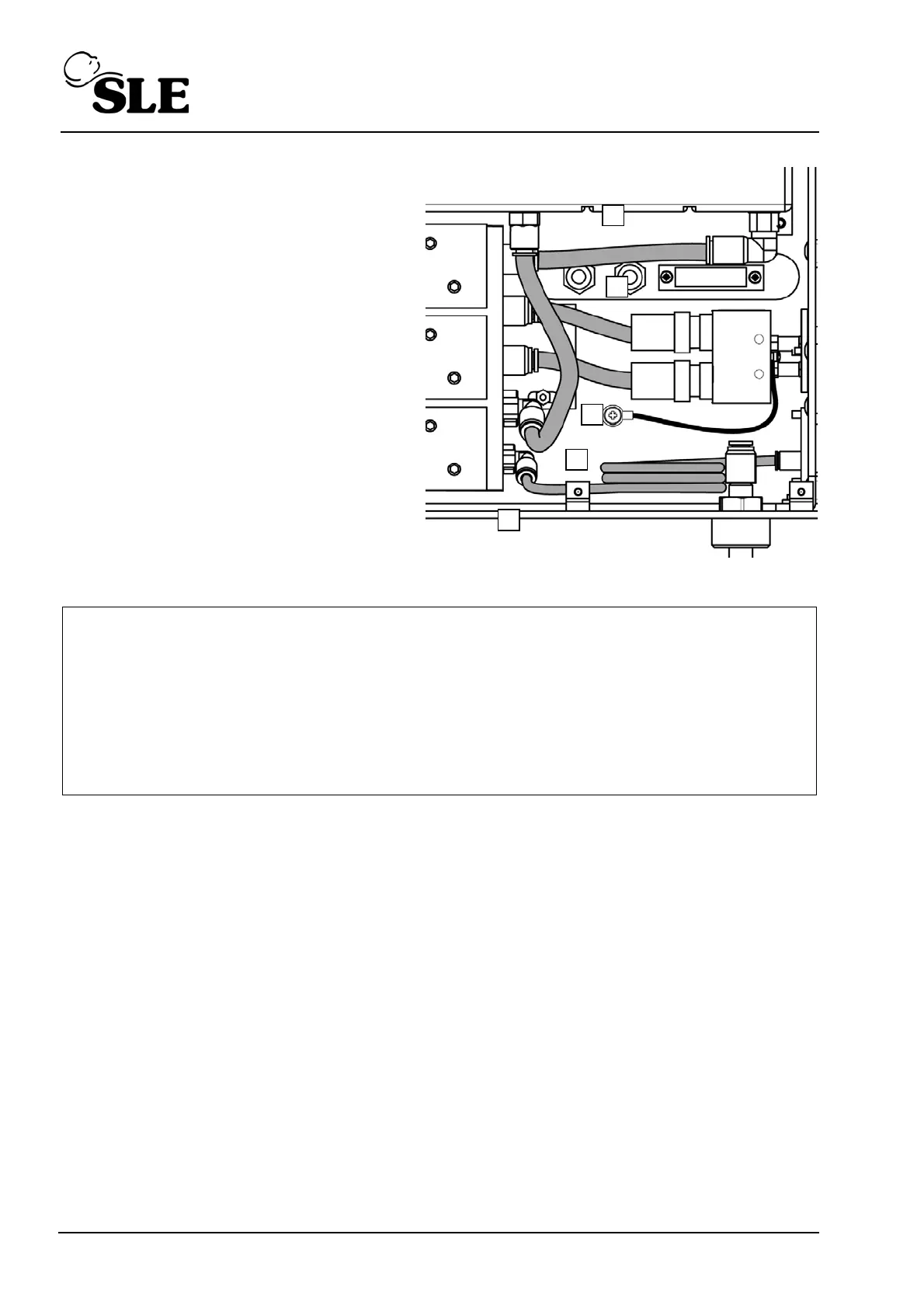

9. Reconnect the pressure regulator
assembly and High speed valve
assembly pneumatic tubing as follows:
Tube (K) volume chamber to PR3.
Tube (L) PR3 to SV9 & SV10.
Tube (M) PR4 to SV11 & SV12.
Tube (N) volume chamber to PR4
Tube (P) PR6 to mean jet.
16.6.9 Setup
1. Carry out a full system calibration.
2. Reset the time and date.
3. Carry out the two point oxygen calibration.
4. Replace all the covers.
Please note: that the new assembly
L0S80/405/002 reduces the maximum
Delta p that can be achieved from 180
mbar to 155 mbar.
