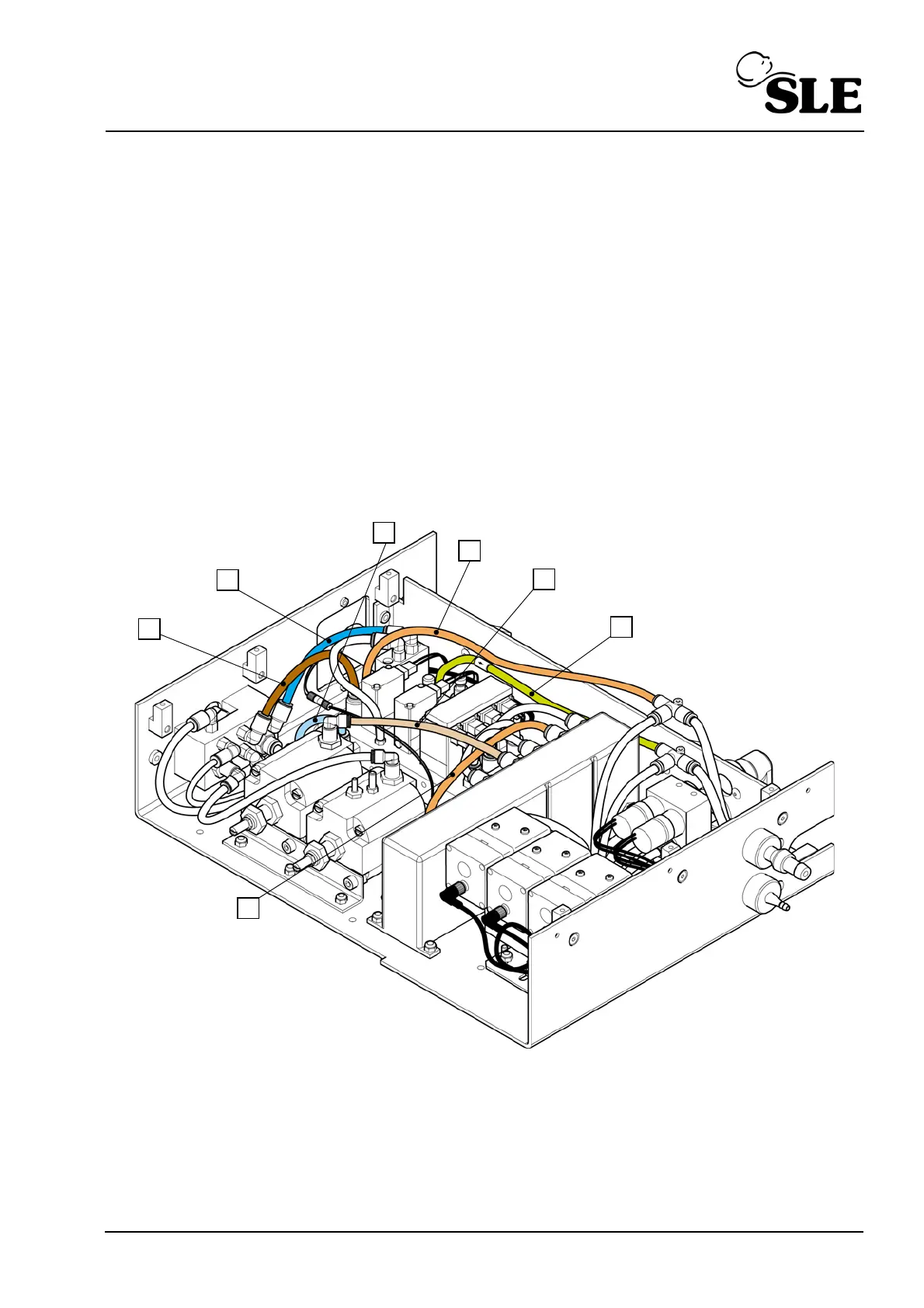

8. Re-connect the following tubes:
(A) fresh gas to PRV1 tube,
(B) O
2
cell sample dump tube,
(C) fresh gas dump tube,
(D) fresh gas supply tube,
(E) blender O
2
supply tube,
(F) proximal airway bleed tube,
(G) forward jet supply tube,
(H) reverse jet supply tube,
(J) air inlet tube.
B
F
C
D
A
E
J
