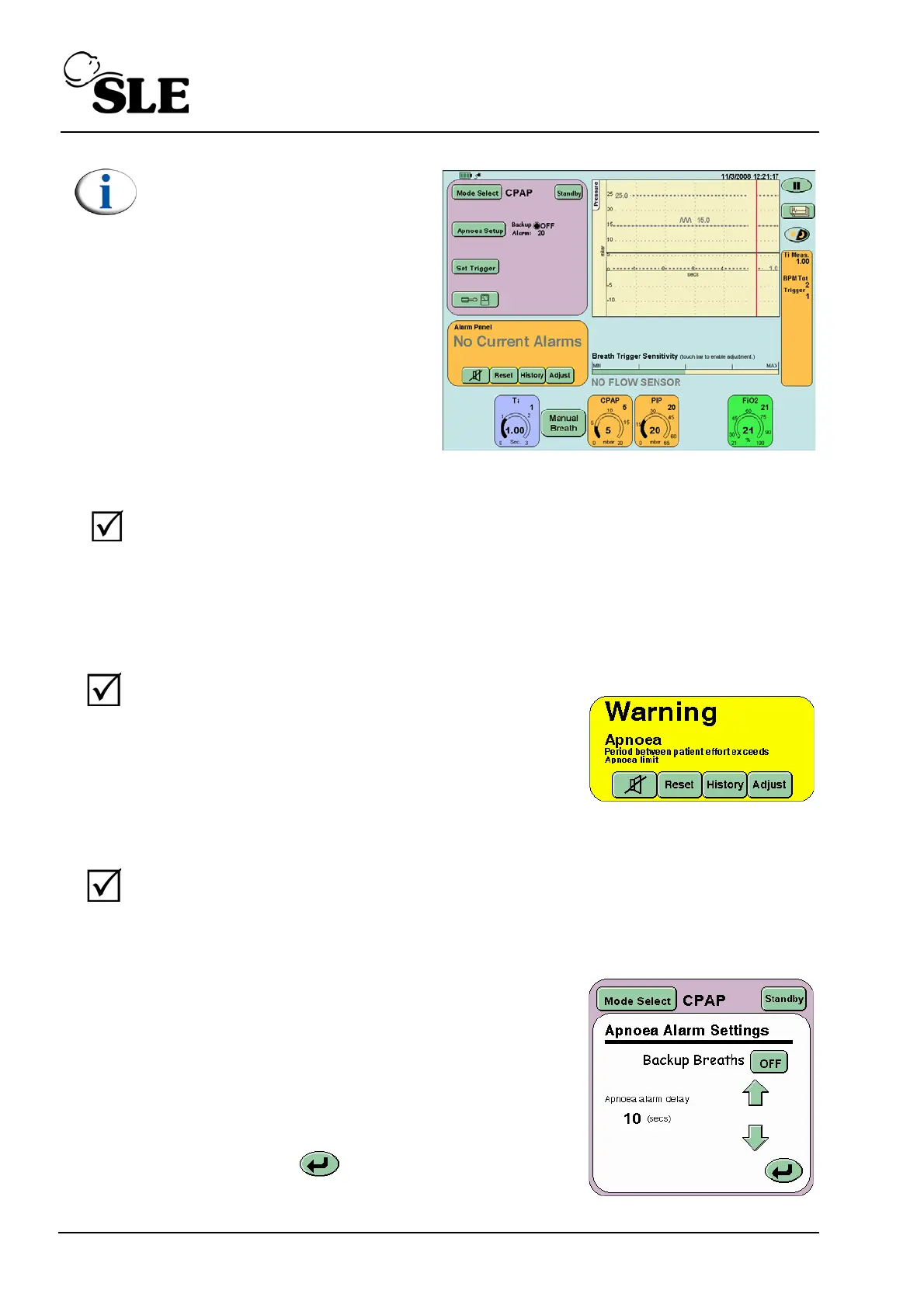

Page 136 (Model J)
Note: If functional testing the
ventilator without a flow sensor
fitted the TTV
plus
button will not
appear and the Flow v Time &
Tidal Volume v Time windows
will be replaced by the Breath
Trigger Level bar.
Step 12 Remove the test lung and connect the ET manifold to the calibration analyser.
Check that the analsyer reads 5 mbar. Increase the CPAP pressure to 10 mbar.
Verify that the readings correspond. return the CPAP pressure to 5 mbar.
Re-fit the test lung to the ET manifold.
Step 13 Pull the test lung to mimic a breath, then acknowledge and reset the alarm.
Verify that:
after 20 seconds the visual and
audible Apnoea alarm is triggered.
Step 14 Pull the test lung to mimic a breath, then acknowledge and reset the alarm.
Verify that:
a manual breath is delivered when the manual breath button is
pressed.
Step 15 Press the Apnoea Setup button on the Mode
Panel. The Apnoea Settings panel will now be
displayed.
Set Apnoea delay to 10 seconds.
Set the Backup Breaths button to ON
Press the Return button to return to the mode
panel.
