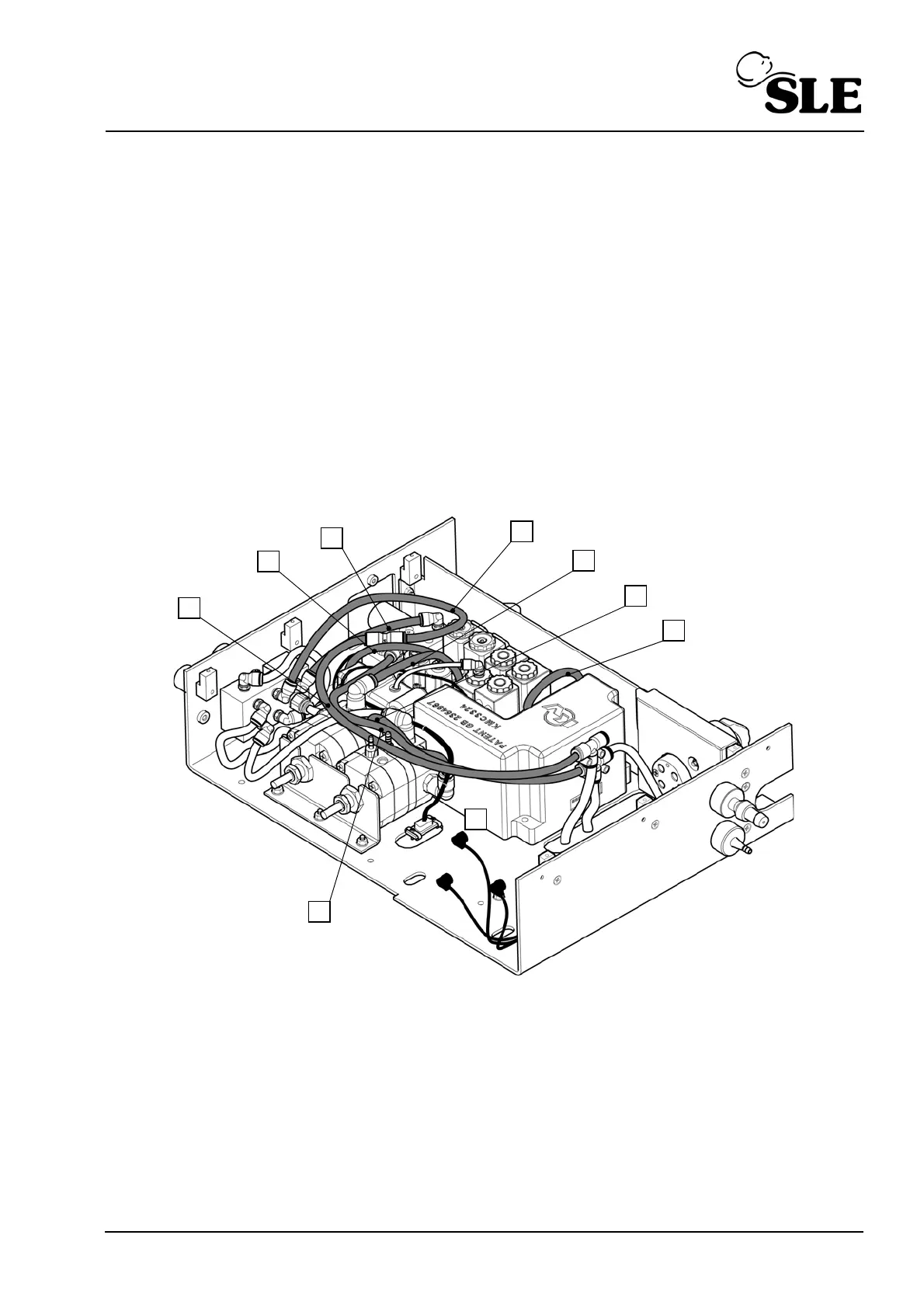

16.6.3 Removal of N0280/01 blender
1. Disconnect and remove the following tubes:
(A) fresh gas supply tube,
(B) fresh gas dump tube,
(C) O
2
cell sample dump tube,
(D) fresh gas to PRV1 tube,
(E) blender O
2
supply tube,
(F) air inlet tube,
(G) forward jet supply tube,
(H) proximal airway bleed tube,
2. Disconnect the electircal connector (J).
B
F
C
D
A
E
H
G
J

