• Show Digital KV—available only in ignition scope, adds a kilovolt reading to the screen.
• Show Grid—switches grid lines on the screen off and on (Figure 8-19).

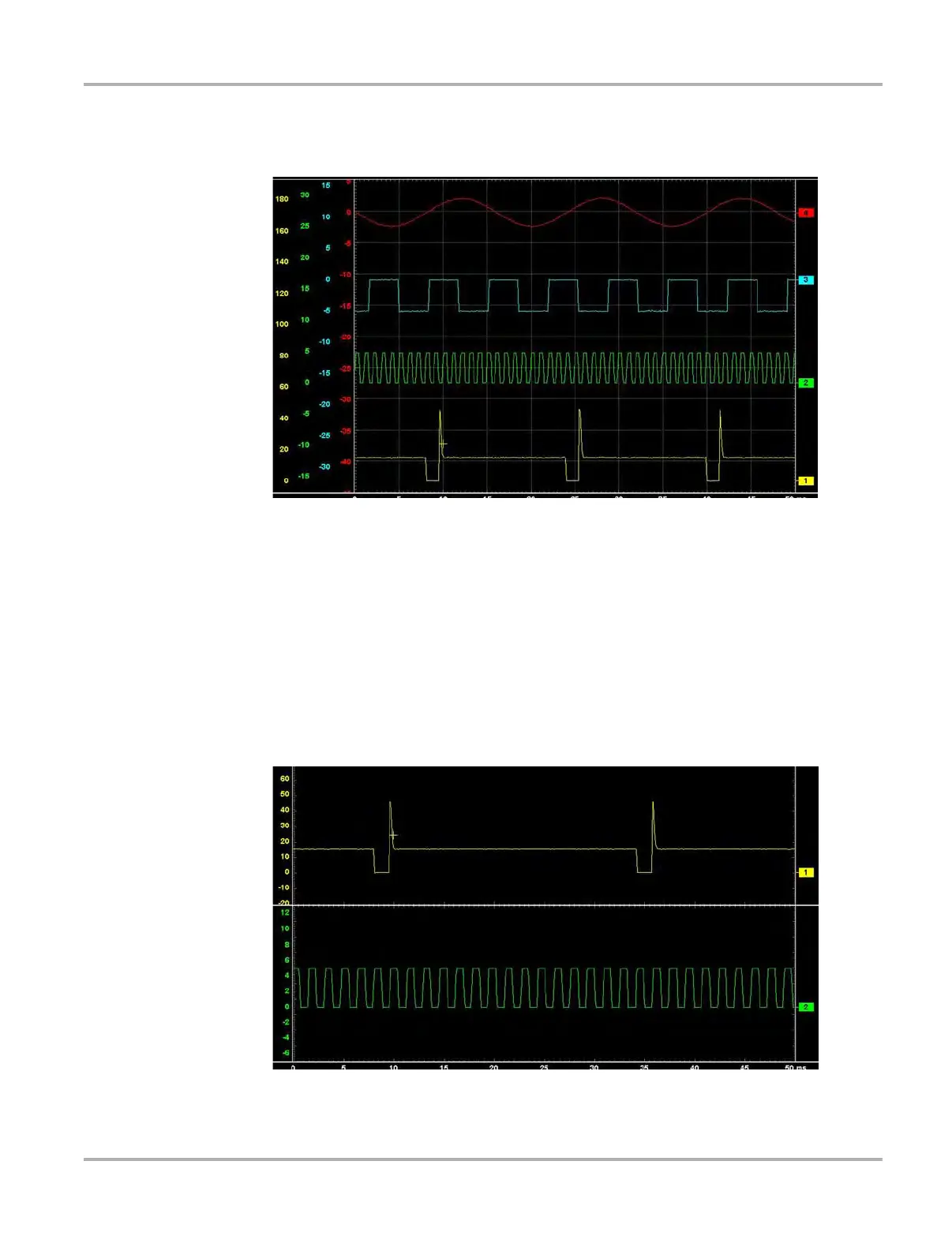

Figure 8-19 Sample grid selected
• Invert Colors—switches the screen background to white.
Layout Settings
The selected radio knob on the Layout dialog box shows which setting is active. Use a finger or the
stylus to switch between settings:
• 1 window—shows all traces on the same screen (Figure 8-19).
• 2 windows—shows two separate traces in two ways: horizontal, one below another
(Figure 8-20) or vertical, side-by-side (Figure 8-21)
Figure 8-20 Sample 2 Windows horizontal display
