Somat eDAQ
lite
196
I2773-4.4 en

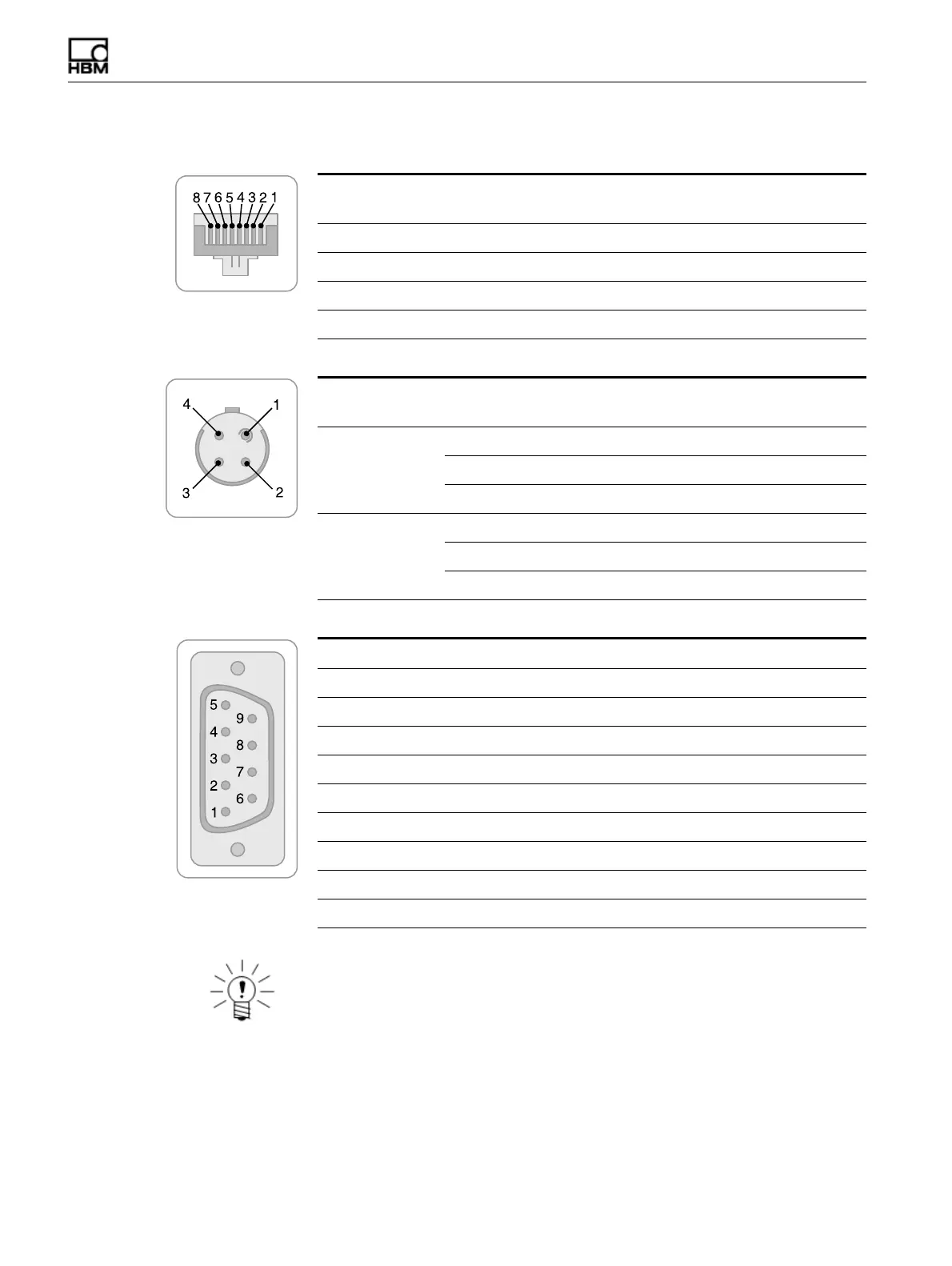

RJ-45 Ethernet Connector
LEMO Networking Connector
9-Pin D-Sub Serial Connector
NOTE
This information is for the current communications cable, which is a fully molded
connector/cable assembly. The original communications cable is not a molded
assembly and differs as follows from the current cable: ground on the serial connector
is white instead of gray and the HUB 10/100BASE-T Receive+ and Transmit+ colors
are white/orange and white/green, respectively.
Function
26-Pin
D-Sub
RJ-45
Pin
Wire Color
(X/O)
Wire Color
(HUB)
10/100 BASE-T Receive + 3 3 Orange/White Green/White
10/100 BASE-T Receive - 4 6 Orange Green
10/100 BASE-T Transmit + 2 1 Green/White Orange/White
10/100 BASE-T Transmit - 1 2 Green Orange
Connector Function
26-Pin
D-Sub LEMO Pin Wire Color
Sync 1 Clock + 5 1 Red
Clock - 8 2 Black
Shield 7 3 bare wire
Sync 2 Clock + 6 1 Red
Clock - 9 2 Black
Shield 7 3 bare wire
Function 26-Pin D-Sub Serial Pin Wire Color
CTS (clear to send) 17 7 Yellow
DCD (data carrier detect) 10 4 Red
DSR (data set ready) 15 1 Violet
DTR (data terminal ready) 13 6 Orange
Rx (received) 11 3 Brown
RI (ring indicator) 18 9 Blue
RTS (request to send) 16 8 Green
Tx (transmitted) 12 2 Black
Ground 14 5 Gray
