Somat eDAQ lite
12 Cable Pinouts
12.1 ELCPU (Main Processor)
12.1.1 Communications Cable
The eDAQ lite is compatible with several different communications cables each of
which provide a 26-pin D-Sub connector for connection to the eDAQ
lite Comm port.
The following table lists the communications cables and their connectors.
The 26-pin D-Sub connector has dedicated pins for each type of available connector.
As shown in the diagram below, pins 1-4 are for Ethernet communication, pins 5-9 are
for the networking sync connectors and pins 10-18 correspond to the serial 9-pin
connector.

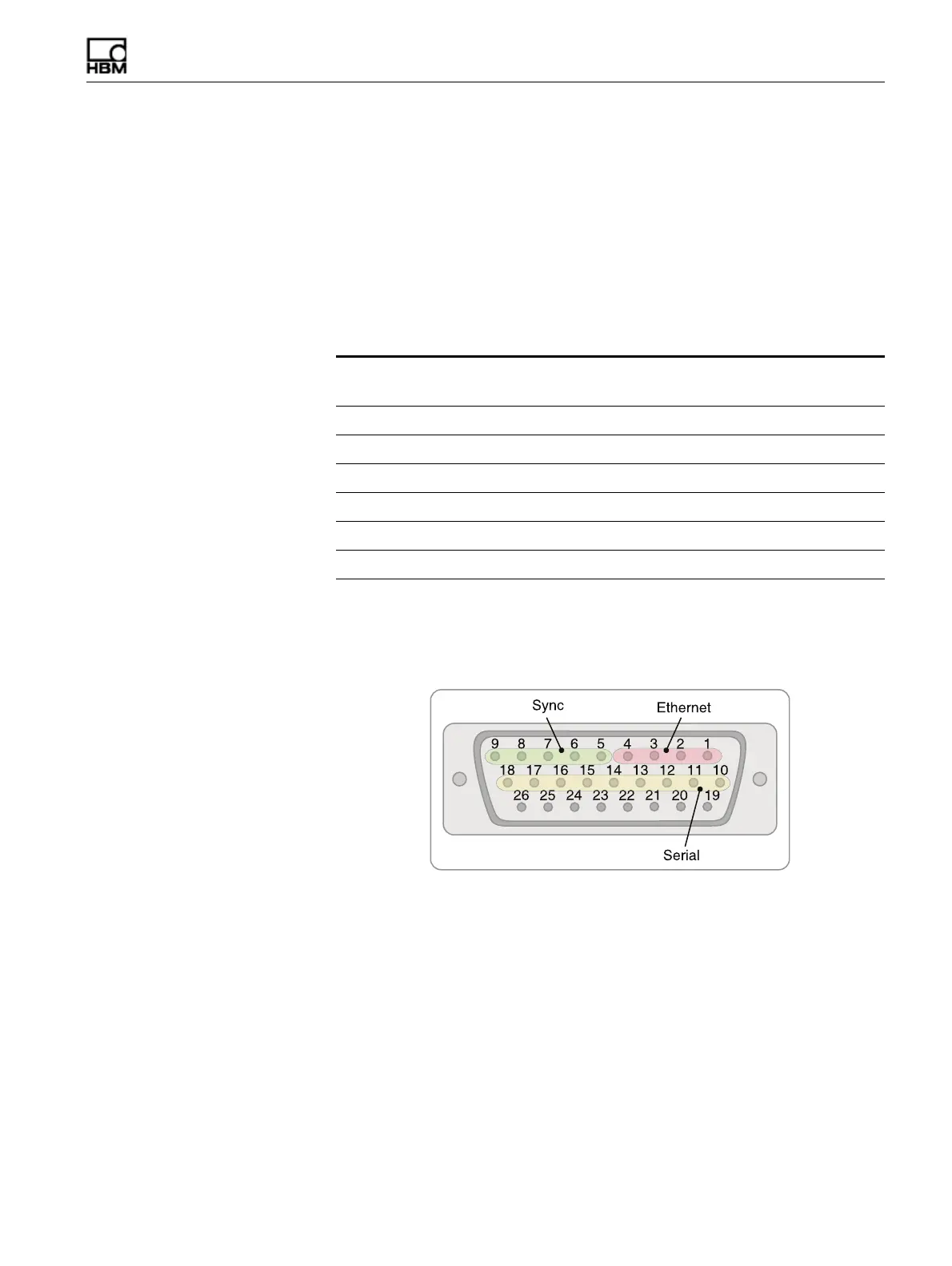

Figure 12-1: Diagram of the 26-pin D-Sub connector on the communications cables for
connection to the eDAQ
lite .
The following tables list the pinouts for each type of available connector and the
corresponding pin on the 26-pin D-Sub Comm connector.
Communications Cable
Ethernet
(X/O)
Ethernet
(HUB) Serial Sync
1-E-ETHERNET X/O-2 X
1-E-ETHERNET HUB-2 X
1-SAC-ESR9/XO-2 X X
1-SAC-ESR9/HUB-2 X X
1-SAC-ESYNCADAPT-2 X X
1-SAC-ESYNCADAPT-SC-2 X X X
