4.5.6 Digital Readout
The digital readout display continuously shows two sets of minimum and maximum
readings in a digital format for up to 16 channels. The last reading min and max
columns display the minimum and maximum values from the latest reading. The since
reset min and max columns show the overall minimum and maximum values since the
start of the display or the last reset. The digital readout is available as a run-time
display only.

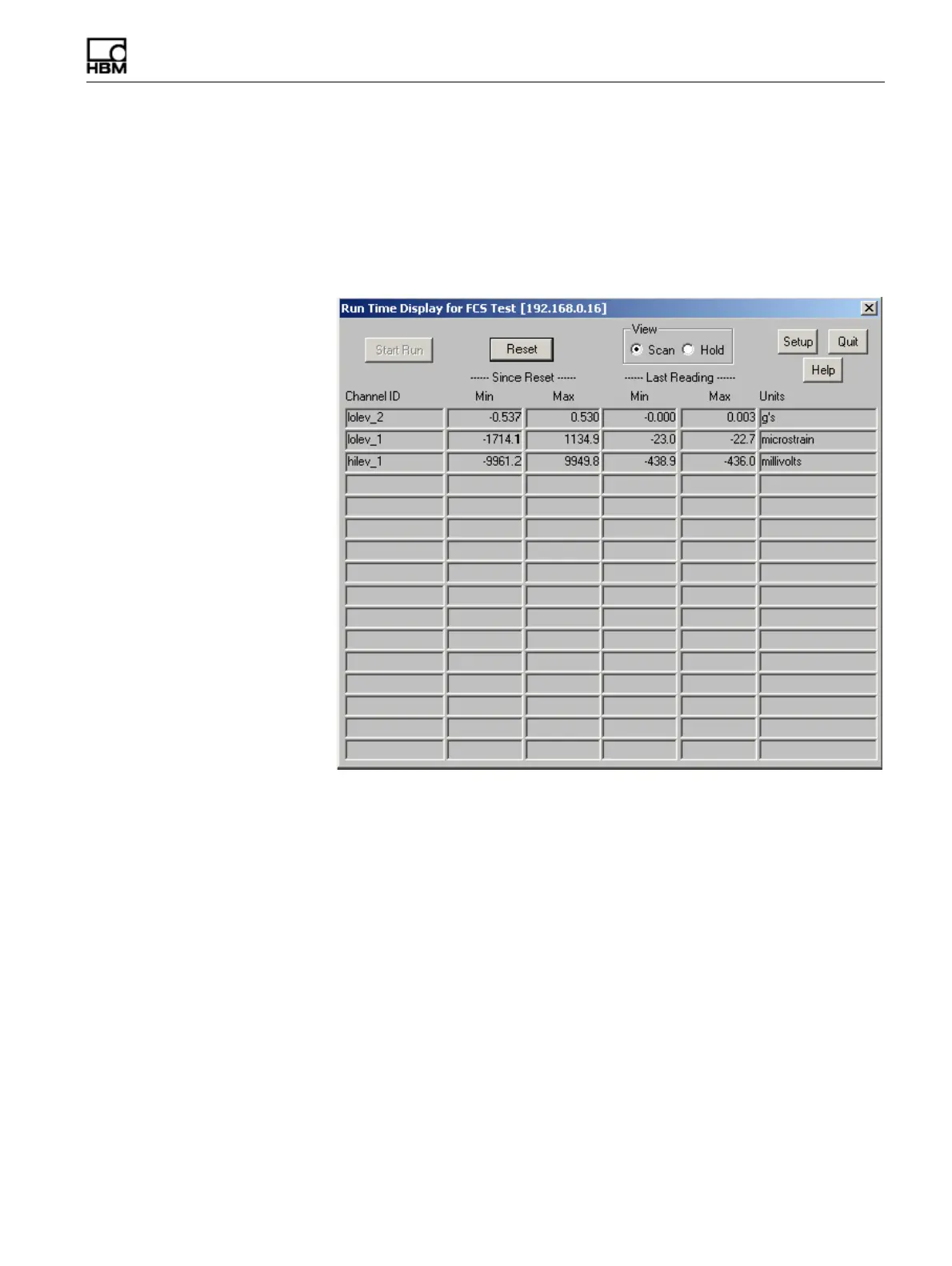

Figure 4-6:
A TCE digital readout run-time display.
Reset
Click the Reset button or use the ALT+R keyboard shortcut to reset the tracking and
display of the overall minimum and maximum values.
