13.2 ELHLS (High Level Analog Layer)
13.2.1 ELHLS Analog Input
Use the Somat SAC-TRAN-MP Transducer Cable (1-SAC-TRAN-MP-2-2 or
1-SAC-TRAN-MP-10-2) to wire ELHLS analog inputs.
NOTE
Do not use this wiring diagram for ELBRG channels.

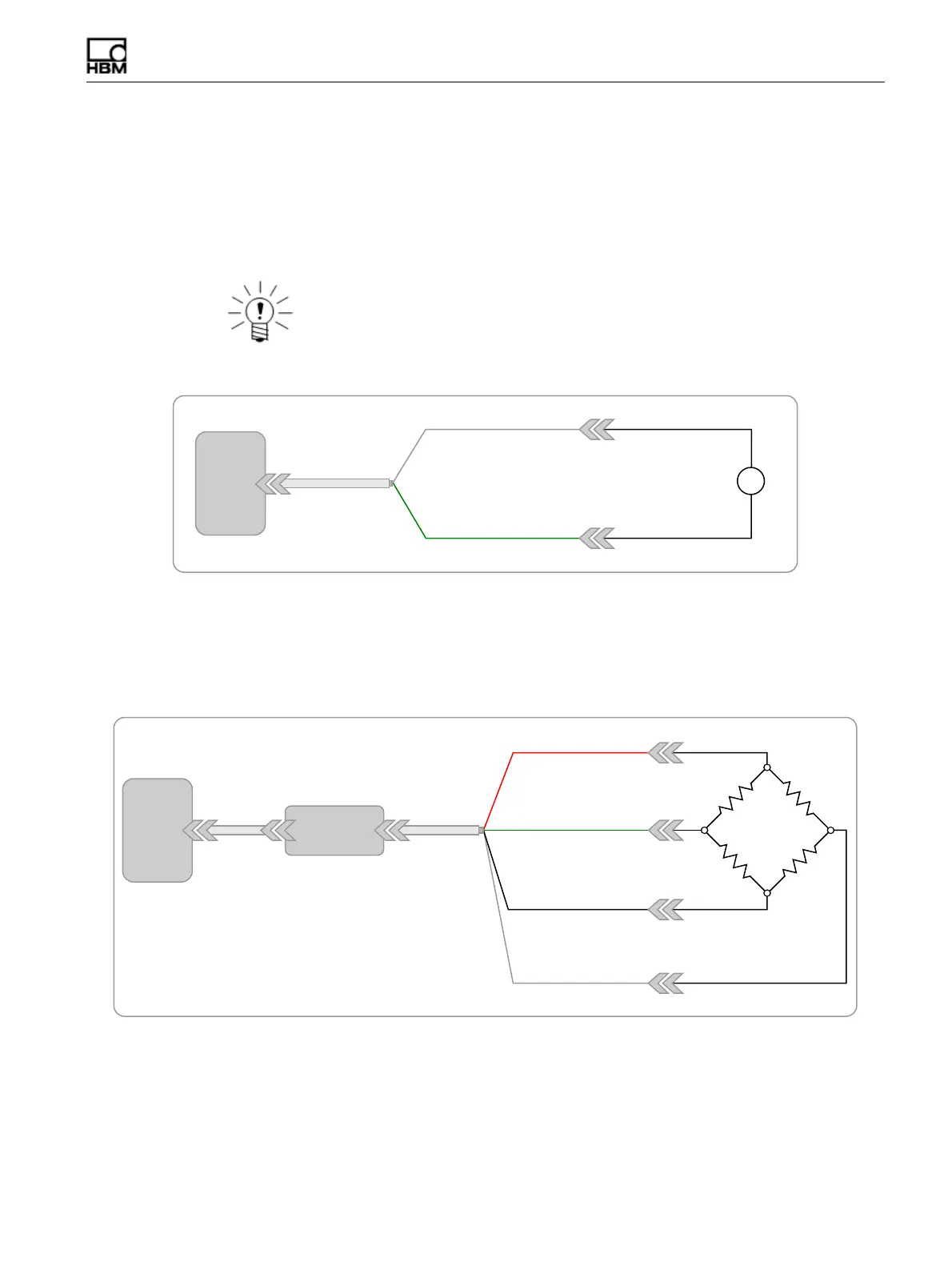

Figure 13-5: Wiring diagram for a standard analog input on an ELHLS layer.
13.2.2 SMSTRB4 (Strain SMART Module)
Use the Somat SAC-TRAN-MP Transducer Cable (1-SAC-TRAN-MP-2-2 or
1-SAC-TRAN-MP-10-2) to wire SMSTRB4 inputs. The following diagrams are also
applicable to older SMART bridge modules that support one fixed bridge type.
Figure 13-6: Wiring diagram for a full-bridge configuration using a Strain SMART Module.
5KIPCN
5KIPCN
YJKVG
ITGGP
8
'.*.5
5#%64#0/2


'ZEKVCVKQP
5KIPCN
'ZEKVCVKQP
TGF
ITGGP
DNCEM
5KIPCN
YJKVG
5/564$
'.*.5
5#%':6/(
5#%64#0/2
