12.1.2 Power Cable

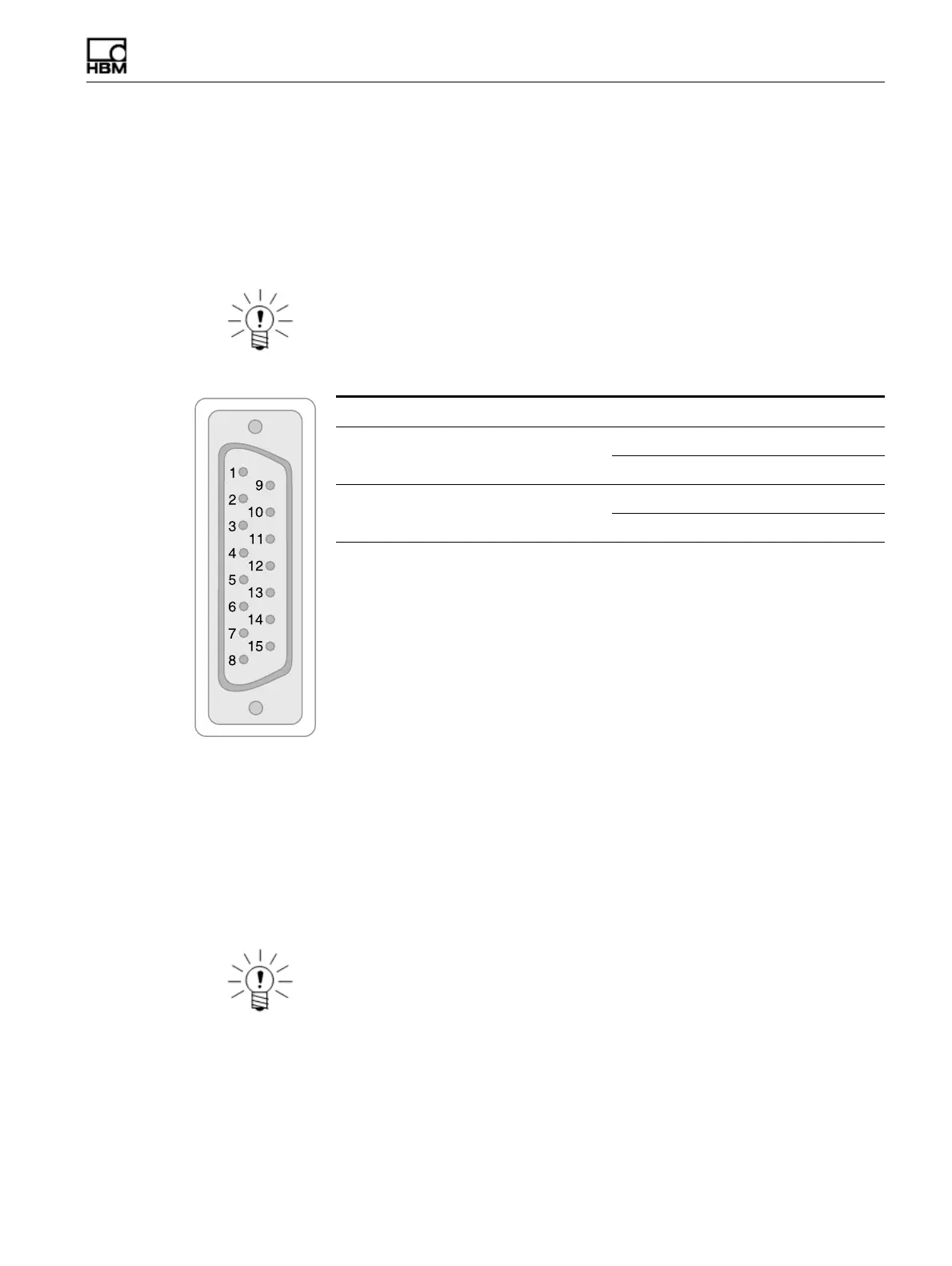

The Somat EPWR15 Power Cable (1-EPWR15-2) has a 15-pin D-Sub connector for
connection to the Power port on the eDAQ
lite
and two sets of pigtail wires: one for
main power and one for remote power. The following table lists the pinouts for the
EPWR15 cable.
NOTE
Though the current EPWR15 cables use only one pin each for power and ground, the
Power connector on the eDAQ
lite
can receive + Main Power on pins 1, 2 and 9 and -
Main Power on pins 7, 8 and 15.
Pin 3 is jumpered to pin 4.
12.2 ELCOM (Vehicle Communications Layer)
Transducer Cable for Dedicated CAN Interface
The dedicated CAN interface on the ELCOM layer uses a Somat SAC-TRAN-MP
Transducer Cable (1-SAC-TRAN-MP-2-2 or 1-SAC-TRAN-MP-10-2) with an M8
connector and a set of color-coded pigtail wires. The following table lists the pinouts
for the SAC-TRAN-MP cable when used with a dedicated CAN interface on the
ELCOM layer.
NOTE
Connection to both the SWC pin and the CAN pins is allowed, but only one source can
be used at any given time.
Cable Function Pin Wire Color
Main Power Cable (gray) + Main Power 1 Red
- Main Power 8 Black
Remote Power Control Cable (black) + Remote Power 6 Red
- Remote Power 14 Black
