Negative Battery Terminal Switching
For a system with a switched power system that removes the negative battery terminal
from the equipment chassis ground, carefully follow the illustrated recommendation.
CAUTION
Failure to follow these suggestions may result in blown fuses and/or permanent
damage to the eDAQ
lite . Improper powering of the unit requiring repairs by HBM
technicians may be deemed as non-warranty usage, resulting in service charges.

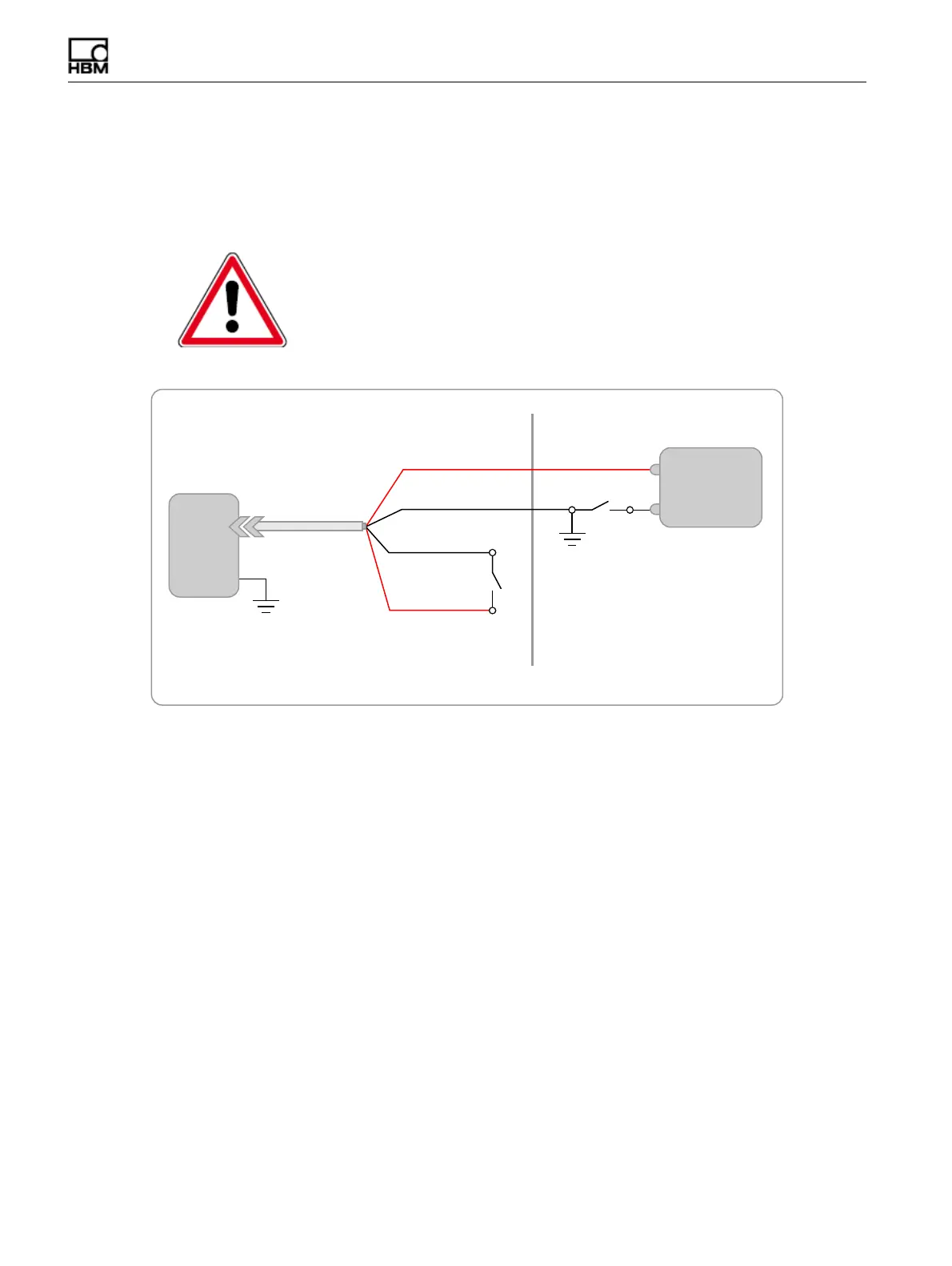

Figure 2-4: Vehicle battery connection for switching battery to ground.
The figure below shows an example of improper powering that may result in a short
and damage the eDAQ
lite .
8GJKENG
$CVVGT[


8GJKENGHKTGYCNN
8
8
DNCEM
TGF
4GOQVG2QYGT
8
8
DNCEM
TGF
/CKP2QYGT
G&#3
5#%'294
2QYGT
