4-10
DSR-70/70P

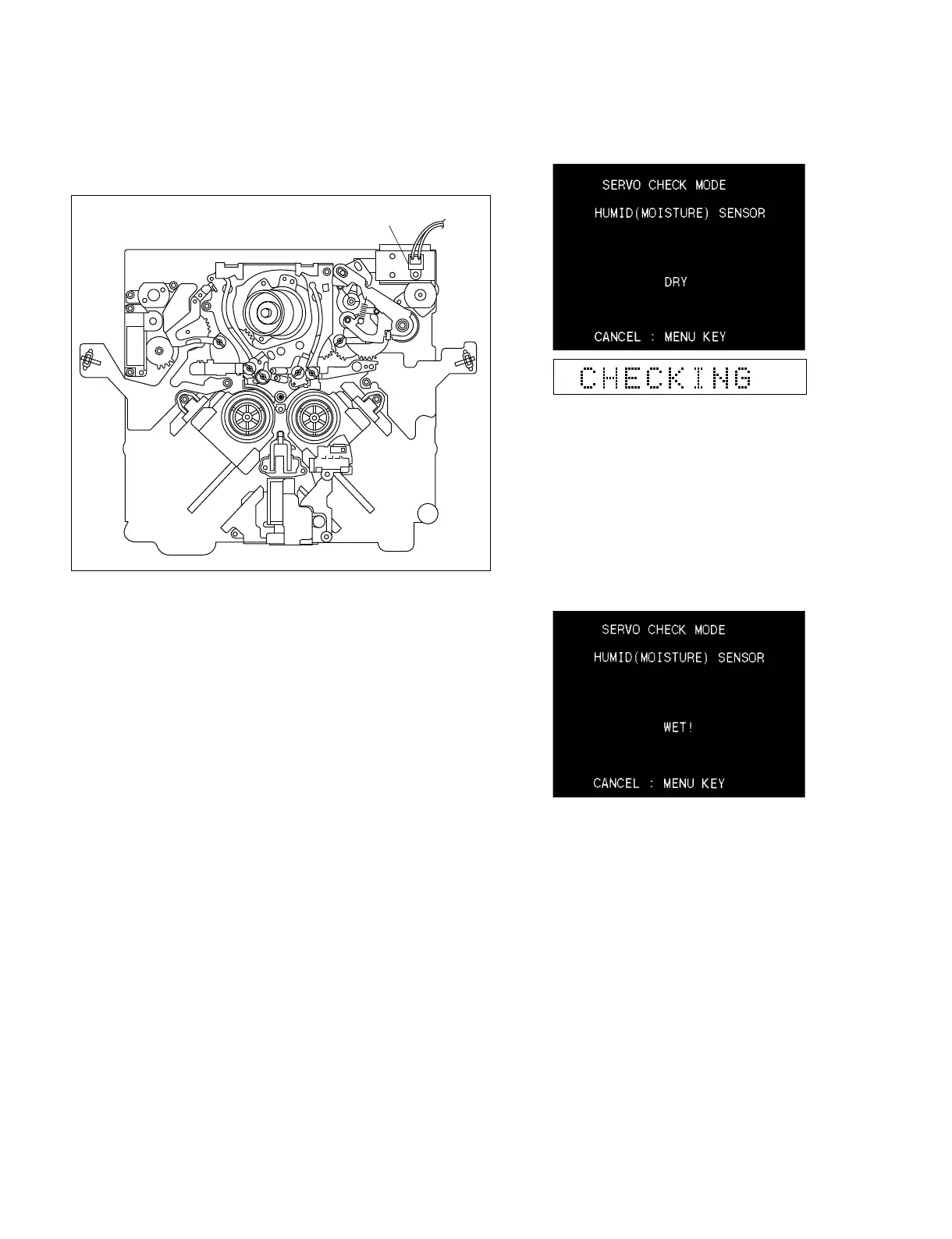

HUMID (condensation) sensor
3 HUMID (MOISTURE)
Checks the HUMID (condensation) sensor.
1. Bring a cotton swab moistened with water in contact with the
HUMID sensor.
Confirm that [DRY] changes to [WET!] on the monitor
display.
2. Blow wind onto the HUMID sensor to evaporate any water.
Confirm that the display changes to [DRY] on the monitor.
In case of trouble :
If the display does not change from DRY to WET!, check whether
the HUMID sensor itself is defective.
Check also the HUMID sensor amplifier (DR-364 board).
