Sony DSBK-150 - Page 191

To Next Page

To Previous Page

4-11

DSR-70/70P

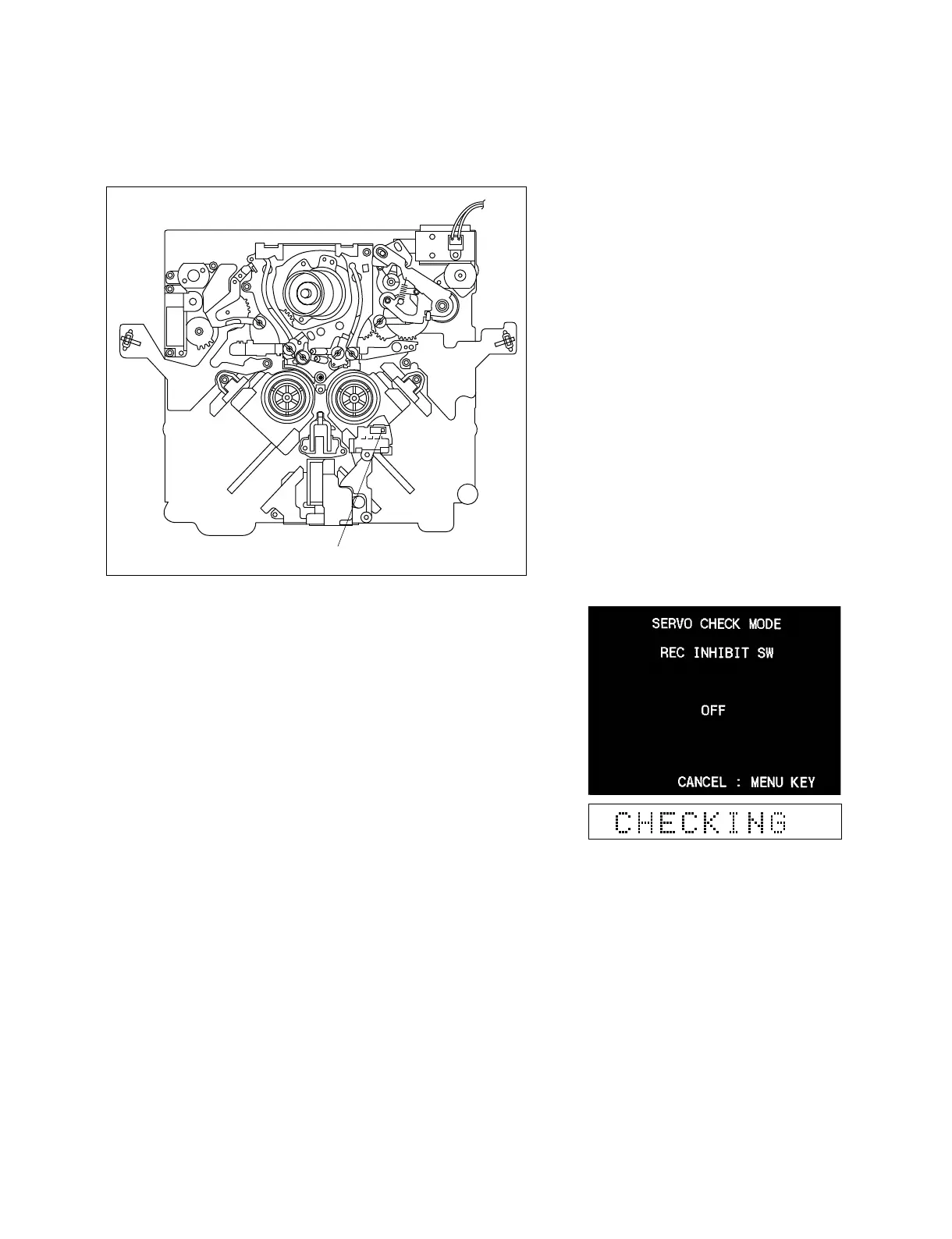

REC INHIBIT switch

4 REC INHIBIT

Checks the REC INHIBIT switch.

1. Press the REC INHIBIT switch.

Confirm that OFF is displayed on the monitor display.

In case of trouble :

If OFF is not displayed, check the sensor on the MIC arm board.
