6-5
DSR-70/70P
Flexible card wire
CN483 (S side)
DR-364 board
A
B
Reel shift motor
Gear B
Reel motor (T)
Open arm assembly
Position A
S brake assembly
Reel motor (S)

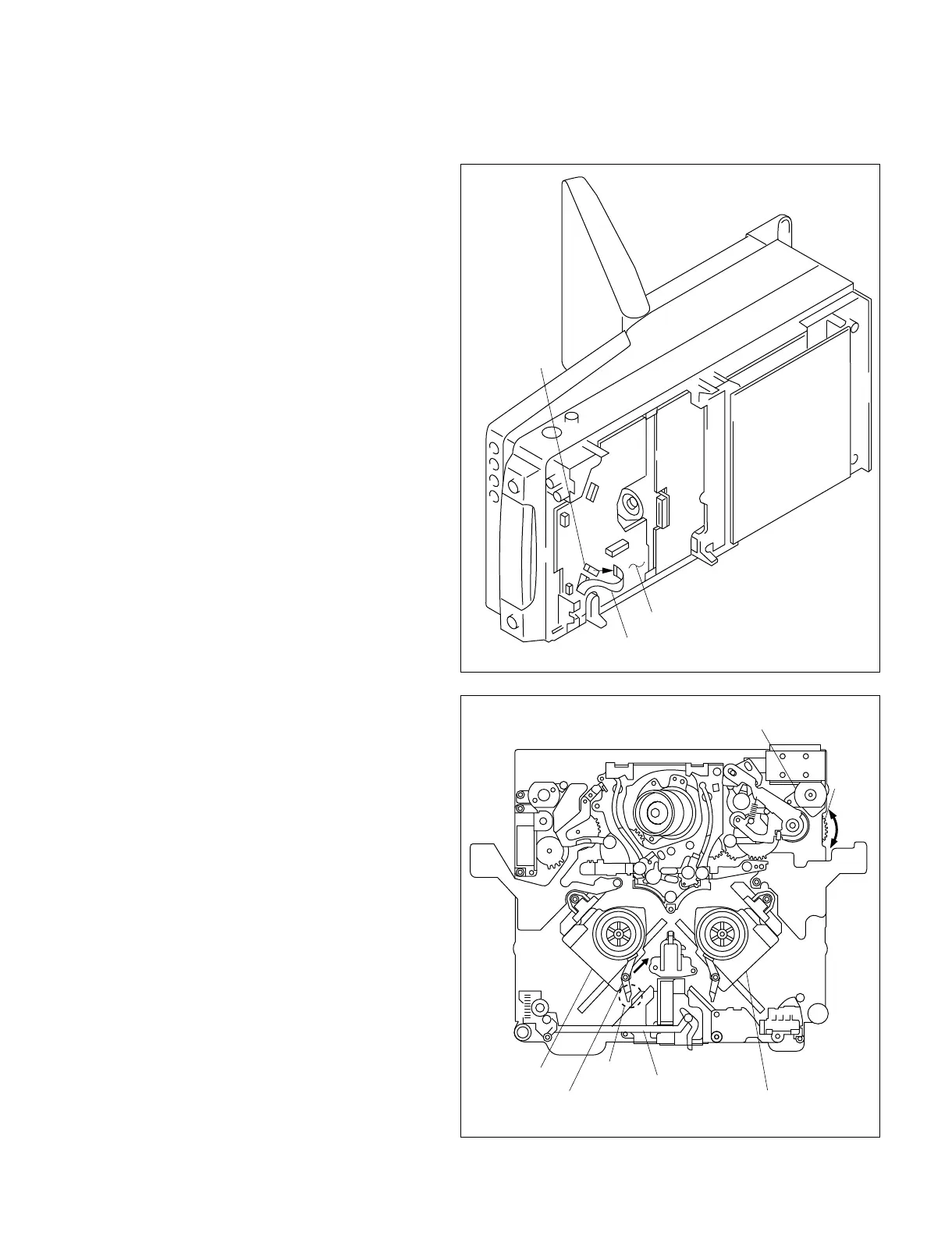

6-3. DC MOTOR SRD13A/J-RP (REEL MOTOR S) REPLACEMENT
Tools
Cleaning cloth : 3-184-527-01
Cleaning fluid : 9-919-573-01
Grease (SGL-505) : 7-662-010-04
Three bond-1401B : 7-432-114-11
Removal
1. Place the DSR-70/70P with its left side down,
and remove the bottom plate.
(Refer to section 2-6-3.)
2. Remove the flexible card wire from the
connector (CN483) on the DR-364 board.
3. Place the DSR-70/70P horizontally.
4. Revolve gear B of the reel shift motor in
direction A with your fingers until the reel motor
(S) has moved to the standard cassette position.
5. Revolve gear B in direction B until the S brake
assembly of the reel motor (S) has moved to
position A.
To Next Page
