Notes about battery usage
• Before using the batteries, be sure to charge them fully with the special
battery charger. Refer to the operating instructions of your battery charger
for more information about how to charge the batteries.
• Batteries may not be completely charged if you charge them immediately
after use when they are still warm. You should wait until the batteries
cool before charging them.
Using the BP-L60(A)/L90(A) Battery Pack
This unit can be operated for about 120 minutes at normal temperature on
fully charged BP-L90 Battery Pack. (When no optional board is installed.)
To charge the battery pack
Before use, charge the battery pack with the BC-L100/L100CE Battery
Charger. It takes about 2.5 hours to charge the BP-L60(A) and about 3.5
hours to charge the BP-L90(A).
For more information about how to charge the battery pack, refer to the manual
for the BC-L100/L100CE.
To attach the battery pack

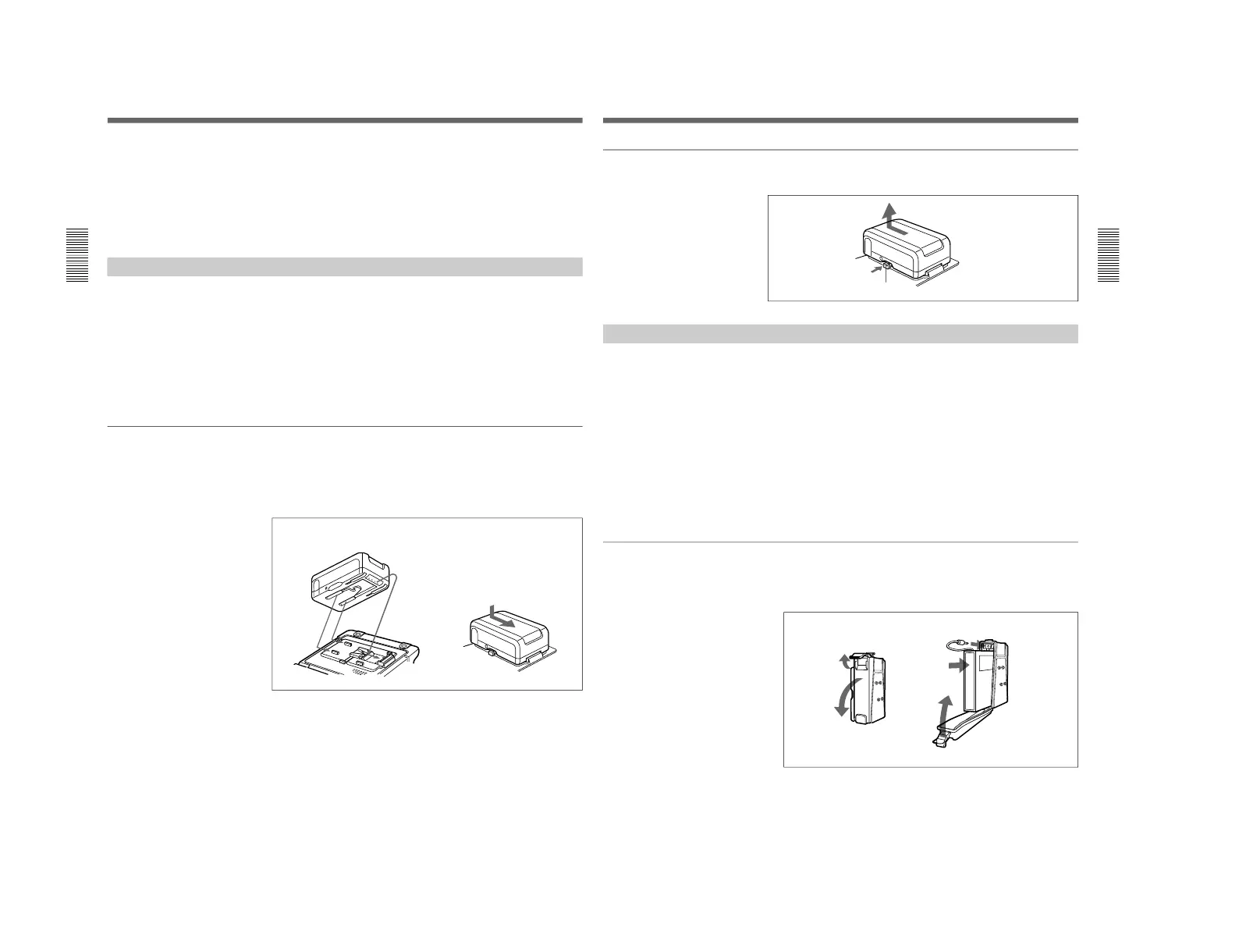

Attach the BP-L60(A)/L90(A) as shown in the following figure. Before
attaching, remove the cover of the battery connector.
Remove the cover in the same way that you remove the battery pack. For details
see the next section “To remove the battery pack”.
1
Align the groove on the top panel of
the BP-L60(A)/L90(A) with the
guides.
2
Slide the BP-L60(A)/L90(A) in so
that its connector is firmly
connected to the unit’s battery
connector.
Chapter 2 Power Preparations and Connections
Chapter 2 Power Preparations and Connections
31
To remove the battery pack
With the lever pushed in, slide the BP-L60(A)/L90(A) out.
Using the BP-90(A) Battery Pack
Different battery adaptors are used when mounting the BP-90(A) on the
top panel of this unit and when connecting it the DC IN connector.
This unit can be operated for about 70 minutes at normal temperature on a
fully charged BP-90(A) Battery Pack. (When no optional board is
installed.)
To charge the battery pack
Before use, be sure to charge the battery pack with the BC-210/210CE/
410/410CE Battery Charger. It takes about 2 hours to charge the BP-
90(A).
For more information about how to charge the battery pack, refer to the manual
for the BC-210/210CE/410/410CE.
To attach to the top panel of this unit
Use the DC-L90 Battery Adaptor.
1
Mount the BP-90(A) in the DC-L90.
Lever
BP-L60(A)/L90(A)
1 Lift the lever up.
5 Close the side cover and
pull the lever down.
3 Insert the BP-90(A).
4 Push the plug in.
2 Open the side cover.
(Continued)
