7-2
DSR-70/70P
6. Information to use the tracking alignment tape (XH2-1AST)
(1) Check the following contents of this manual before using
the tracking adjustment mode.
. For the procedure to enter the maintenance menu, refer to
sections 4-2-1 and 4-2-2.
. For the procedure to exit the maintenance menu, refer to
sections 4-2-3.
7. Operating procedure of tracking adjustment
(1) Enter the maintenance menu.

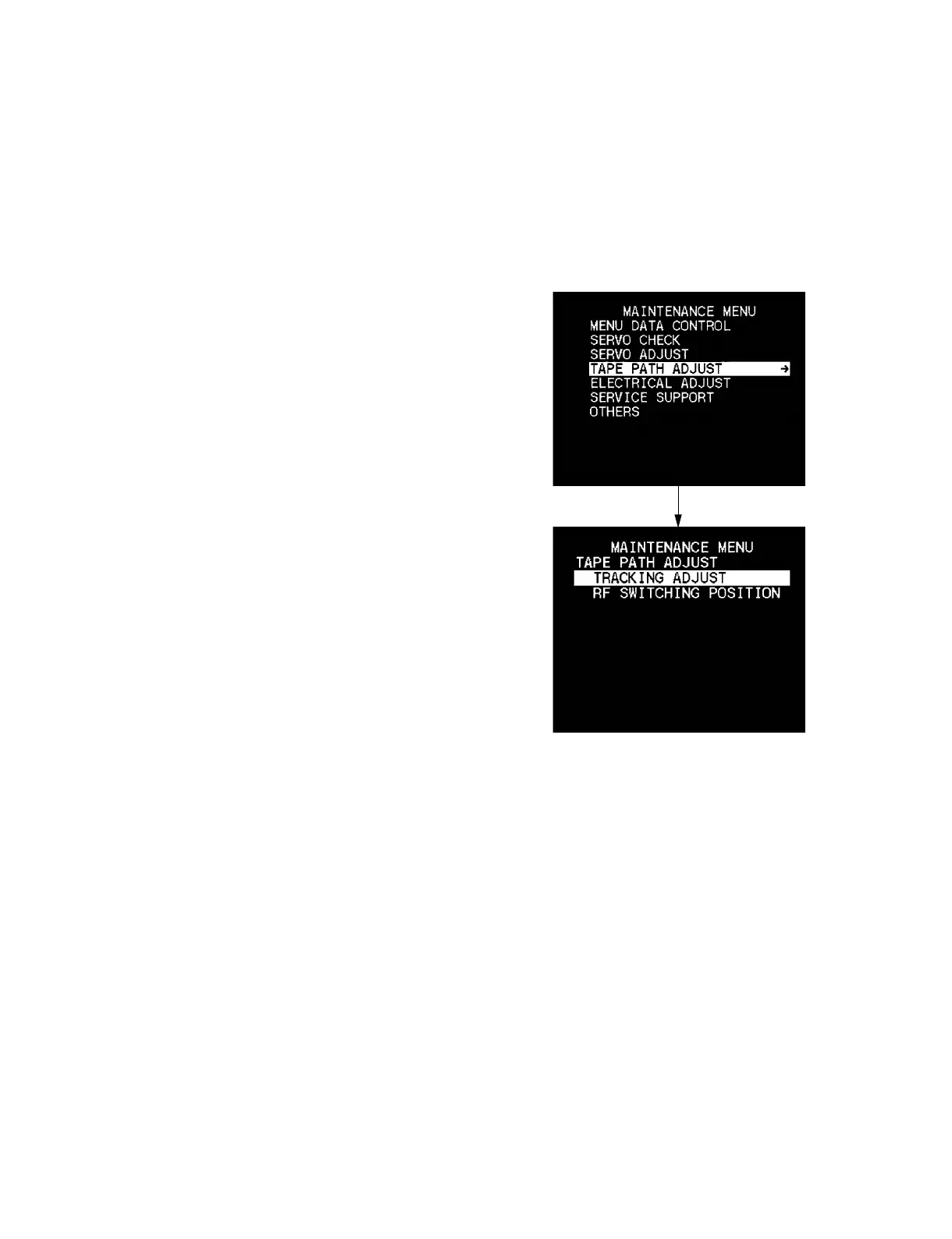

(2) Move the cursor to “TAPE PATH ADJUST” which is
displayed with a white background, using the [ENTRY]
(↑), [AUTO|EDIT] (↓) keys.
(3) Press the [OUT] (→) key.
This selects “TAPE PATH ADJUST” and menu of the
lower level directory appears.
(4) Move the cursor to “TRACKING ADJUST” which is
displayed with a white background, using the [ENTRY]
(↑), [AUTO|EDIT] (↓) keys.
To Next Page
