SoundCraft Vi3000 User Manual

4.3: INPUT CHANNEL > DYNAMICS
Vi3000 USER MANUAL
®
4.3 INPUT CHANNEL > De Esser
Vi3000 USER MANUAL
®
17.1 17.1: FX > USING THE FX
17.1: FX > USING THE FX

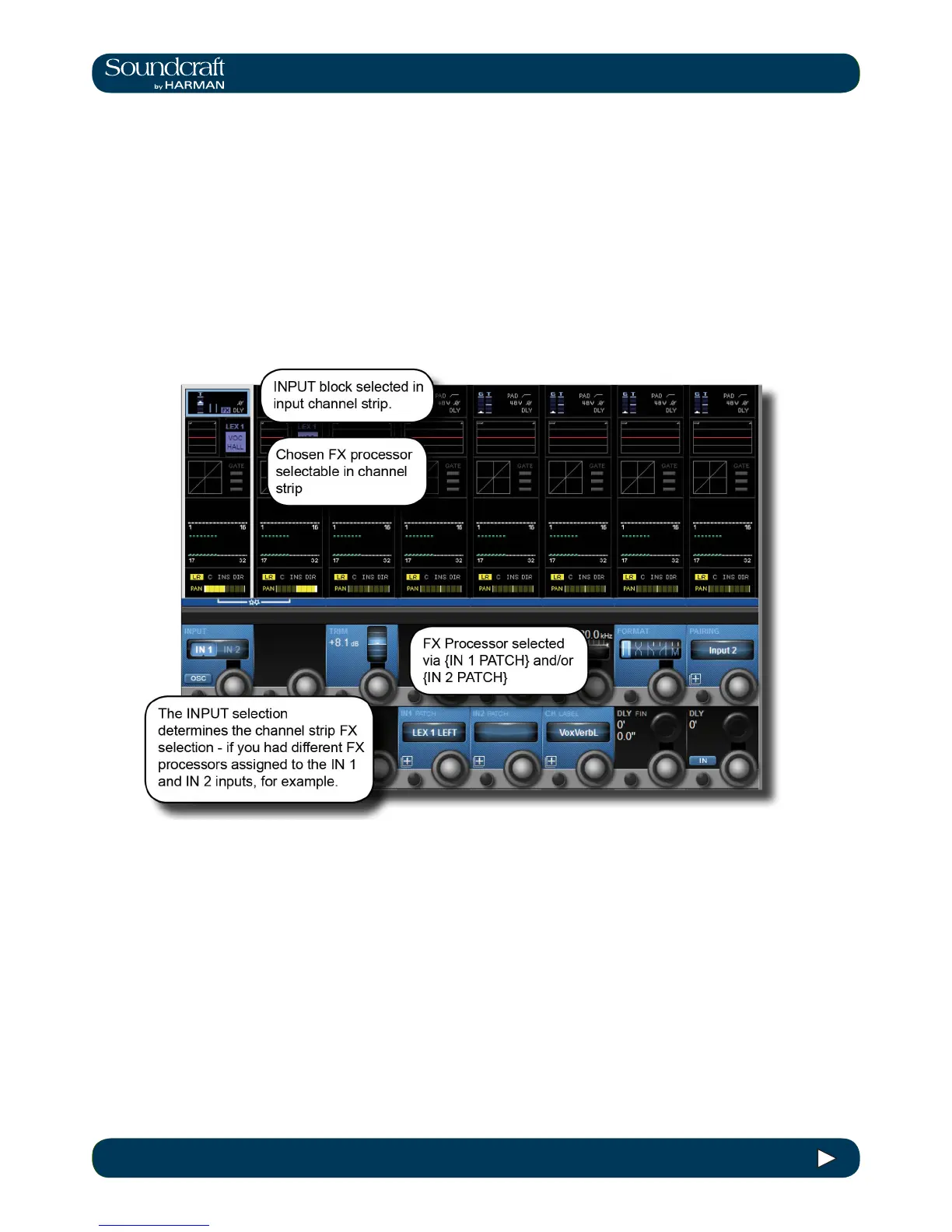

To patch an input channel as an FX return, select that input’s input block from the top of the touch screen channel
strip, then use either the {IN 1 PATCH} or {IN 2 PATCH} option to assign the output of an FX unit to that channel.
Touch the Insert/output/delay block in the channel strip, then use the BUS OUT PATCH or INS PATCH options in the
VST section to bring up the relevant patching options onto the touch screen. Simply select the Lexicon In page from
the options on the right hand side of the touch screen and then select the required FX unit.
If you are patching the output of a stereo aux bus, then left and right buttons will appear in the patch screen. For nor-
mal routing you should assign each to the corresponding inputs of an FX unit.
As An FX Return

SoundCraft Vi3000 Specifications

General

Busses	24 mono/stereo
Fader Layers	4
Touch Screens	2
Sample Rate	96 kHz
Bit Depth	24-bit
Faders Type	Motorized
Digital I/O	AES/EBU
Remote Control	Via ViSi Remote iPad app
Faders	36
EQ	4-band parametric
Output Channels	24 mono/stereo busses + matrix
Connectivity	Ethernet, USB
Mixing Channels	Up to 96
Effects	Lexicon FX engine
Routing	Fully flexible
Input Channels	Up to 96
