Vi3000 USER MANUAL
®
16.10 16.10: MENU > SYSTEM
16.10: MENU > SYSTEM
System monitoring and HiQnet setup.
In normal operation, the main System Monitoring Overview Display Area is located at the top right of the Master Bay
touch screen, and the Error Log Display Area is just below it. Within the System Monitoring Overview Display Area
each hardware device and the HiQnet™ network state is represented with a coloured label. The label colour indicates
the overall state of the system monitoring page. A green label indicates that this device is running correctly, whereas a
red label indicates an error condition.
Error and warnings are displayed in the Error Log Display Area.

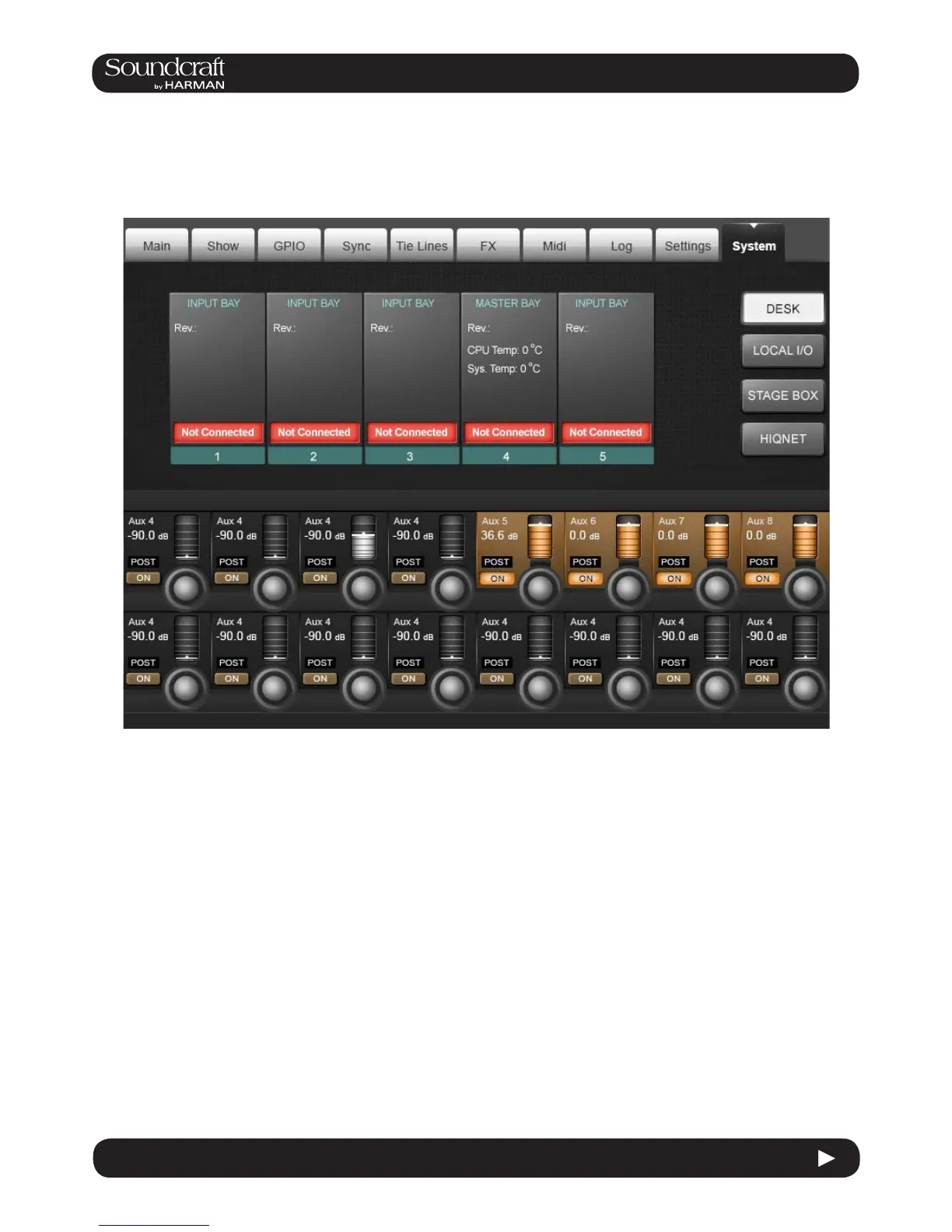

To access detailed System information, enter either though the main menu by pressing [MENU] then (System), or
by touching the System Monitoring Overview Display Area. When the System page has been opened, there are 4
sub-pages accessed via the touch-pads on the right hand side: DESK, LOCAL I/O, STAGE BOX and HiQnet™.
MENU: SYSTEM
System Monitoring and HiQnet/VM² Setup

SoundCraft Vi3000 Specifications

General

Busses	24 mono/stereo
Fader Layers	4
Touch Screens	2
Sample Rate	96 kHz
Bit Depth	24-bit
Faders Type	Motorized
Digital I/O	AES/EBU
Remote Control	Via ViSi Remote iPad app
Faders	36
EQ	4-band parametric
Output Channels	24 mono/stereo busses + matrix
Connectivity	Ethernet, USB
Mixing Channels	Up to 96
Effects	Lexicon FX engine
Routing	Fully flexible
Input Channels	Up to 96
