16.3 16.3: MENU > GPIO
16.3: MENU > GPIO
You can congure all available GPIO channels in the GPIO (General Purpose Input Output) tab of the main menu.
However, please note that ‘virtual’ GPIO pins can also be assigned to cues in the cue list via the Snapshot SETUP
page. Virtual GPIO Pins are assigned via the function/parameter setting in the main GPIO settings.
The GPIO card provides electrically isolated opto-coupler inputs with integrated current sink (5 to 24 VDC) and electri-
cally isolated outputs using SPST relay contacts. 5 VDC and Gnd supply pins are provided. Inputs and outputs are on
standard D-type connectors (female).

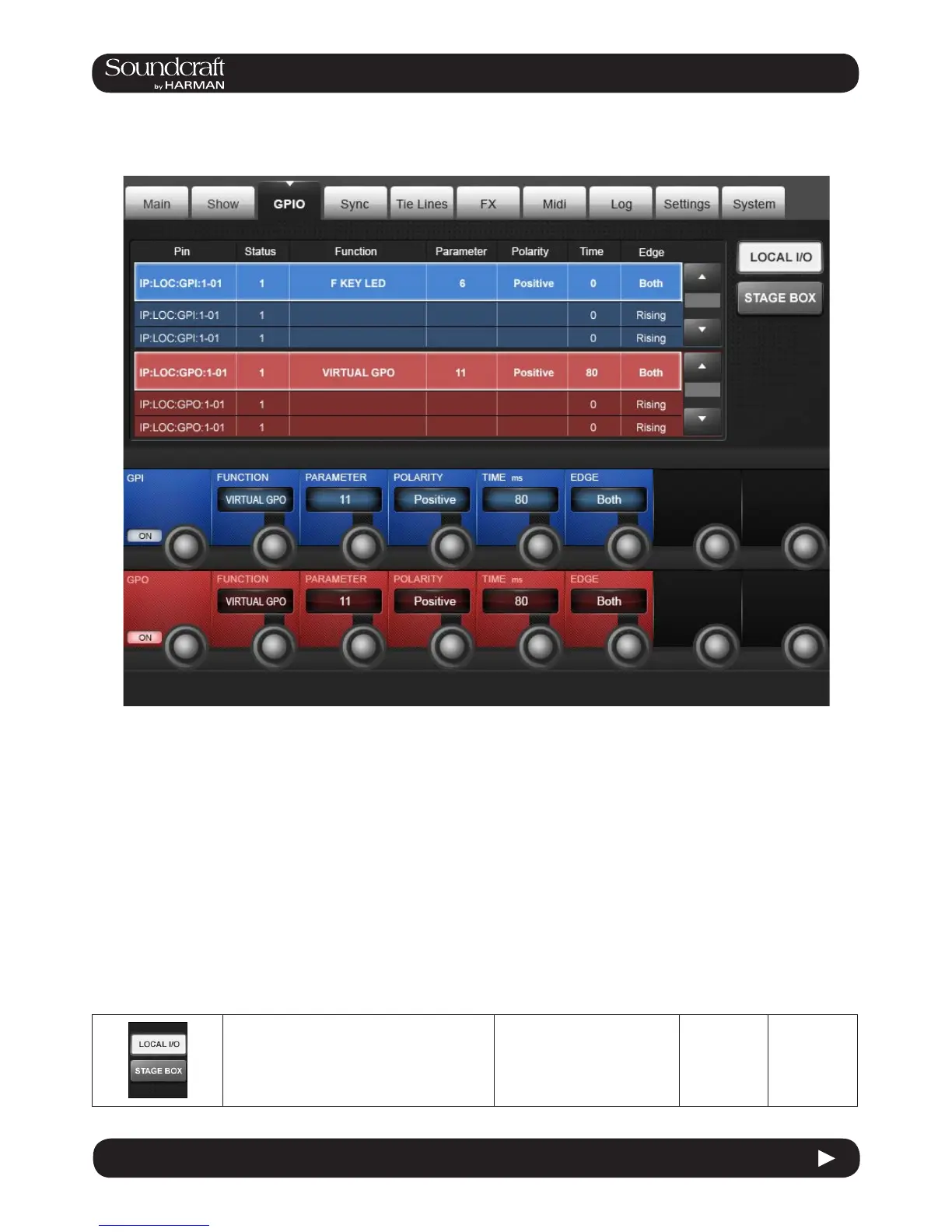

The main screen shows a list of available GPIO connections on the selected hardware (console, stage box, and so
on). The upper section shown in blue is the GPI (input) section, and the lower section shown in red is the GPO (out-
put) section. Each entry shows its various congurations across several columns; these are set in the VST section of
the master bay Vistonics.
Menu: GPIO
Console GPIO
Select
Selects the GPIO in the Local Rack (16 GPIO
channels).

SoundCraft Vi3000 Specifications

General

Busses	24 mono/stereo
Fader Layers	4
Touch Screens	2
Sample Rate	96 kHz
Bit Depth	24-bit
Faders Type	Motorized
Digital I/O	AES/EBU
Remote Control	Via ViSi Remote iPad app
Faders	36
EQ	4-band parametric
Output Channels	24 mono/stereo busses + matrix
Connectivity	Ethernet, USB
Mixing Channels	Up to 96
Effects	Lexicon FX engine
Routing	Fully flexible
Input Channels	Up to 96
