Vi3000 USER MANUAL

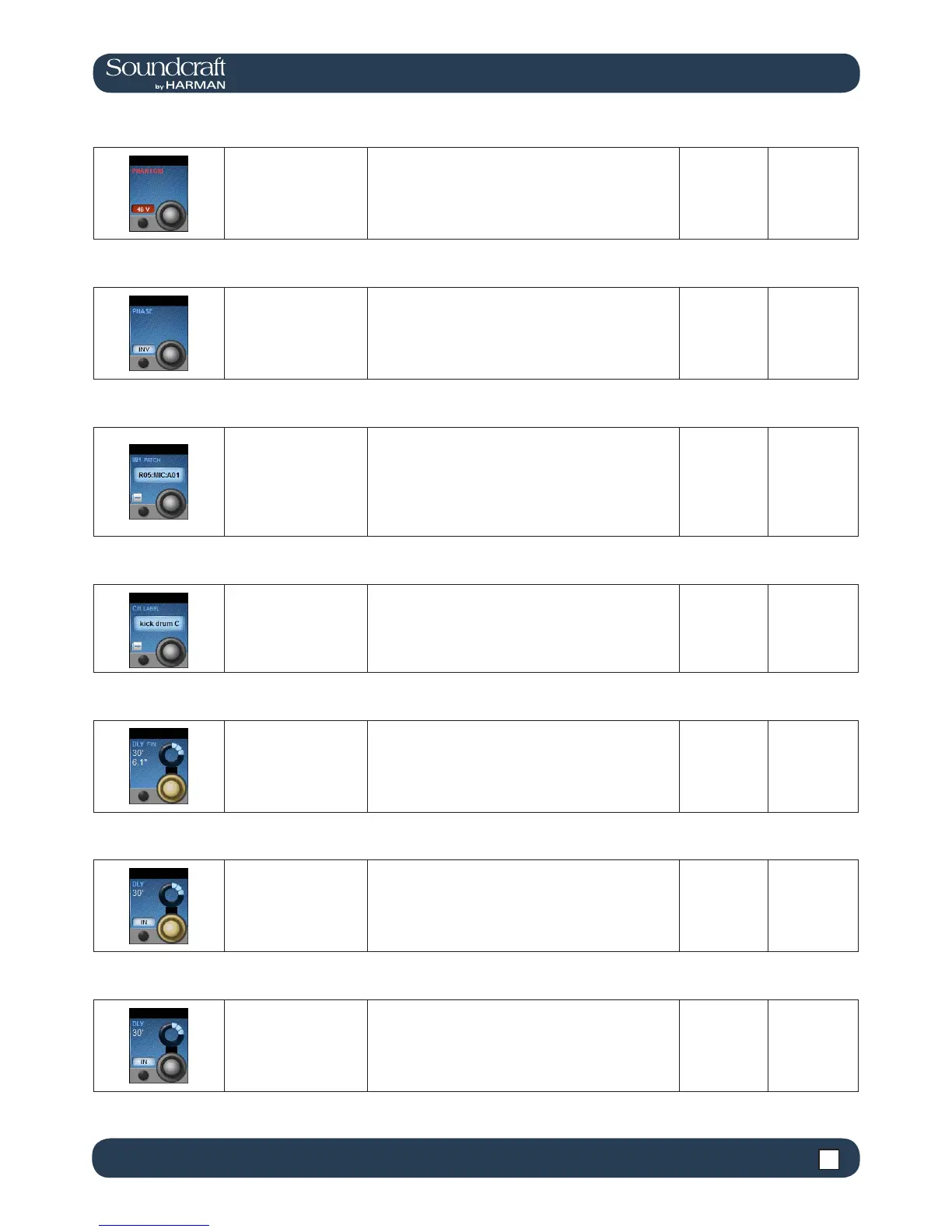

6.5.1: INPUT CHANNEL > INPUT
Phantom Power
Field / Group:
PHANTOM
Apply Phantom Power
(+ 48V) to XLR patched
to this input.
When phantom power is applied to this channel's input,
the '48V' indicated (touch screen input section) is high-
lighted in red.
Off 48V
Phase Invert Field / Group: PHASE
Invert the phase of
audio through this
channel.
When phase invert is active, the phase symbol in the
input section of the touch screen is highlighted blue.
Off 180 degrees
Input Patch
Field / Group: IN1
PATCH / IN 2 PATCH
Activate input patch-
ing selection on touch
screen.
The input patch selection screen will give you access
to all available inputs / sources, both external (local
I/O, Stage Box, MADI, and so on) and internal (Lexicon
effects). If an input channel is paired, you will also have
to option to select L or R assignment from the same
screen. The IN 1 and IN 2 eld text areas will show the
selected source.
Inactive
Selection
active
Channel Label
Field / Group:
CH LABEL
Activate channel
labeling functionality on
main touch screen.
Thsi control brings up the standard ASCII keyboard
display and colour selector in order to label the channel.
You can specify short and long channel names, and a la-
bel colour. You can also use a connected USB keyboard
if available.
Inactive Active
Delay Fine
Adjust Field / Group: DLY FIN Range Low Range High
Fine adjustment of the
channel delay time.
Adjusts overall delay time in small steps. The delay
units (feet, meters, seconds etc) of adjustment can be
changed in the main Settings screen, via the [MENU]
button.
0 Seconds
Delay Adjust Field / Group: DLY
Adjustment of the chan-
nel delay time.
Adjusts overall delaytime. The delay units (feet, meters,
seconds etc) can be changed in the main Settings
screen, via the [MENU] button.
0 Seconds MONO
Delay In / Out Field / Group: DLY Range Low Range High
Activates the delay for
this channel.
When the channel delay is active, the 'DLY' indicator in
the touch screen input area is highlighted blue.
Out In
