Vi3000 USER MANUAL
®
6.5.4 6.5.4: INPUT CHANNEL > VISTONICS>BUSSES
®
Vi3000 USER MANUAL
6.5.4: INPUT CHANNEL > BUSSES

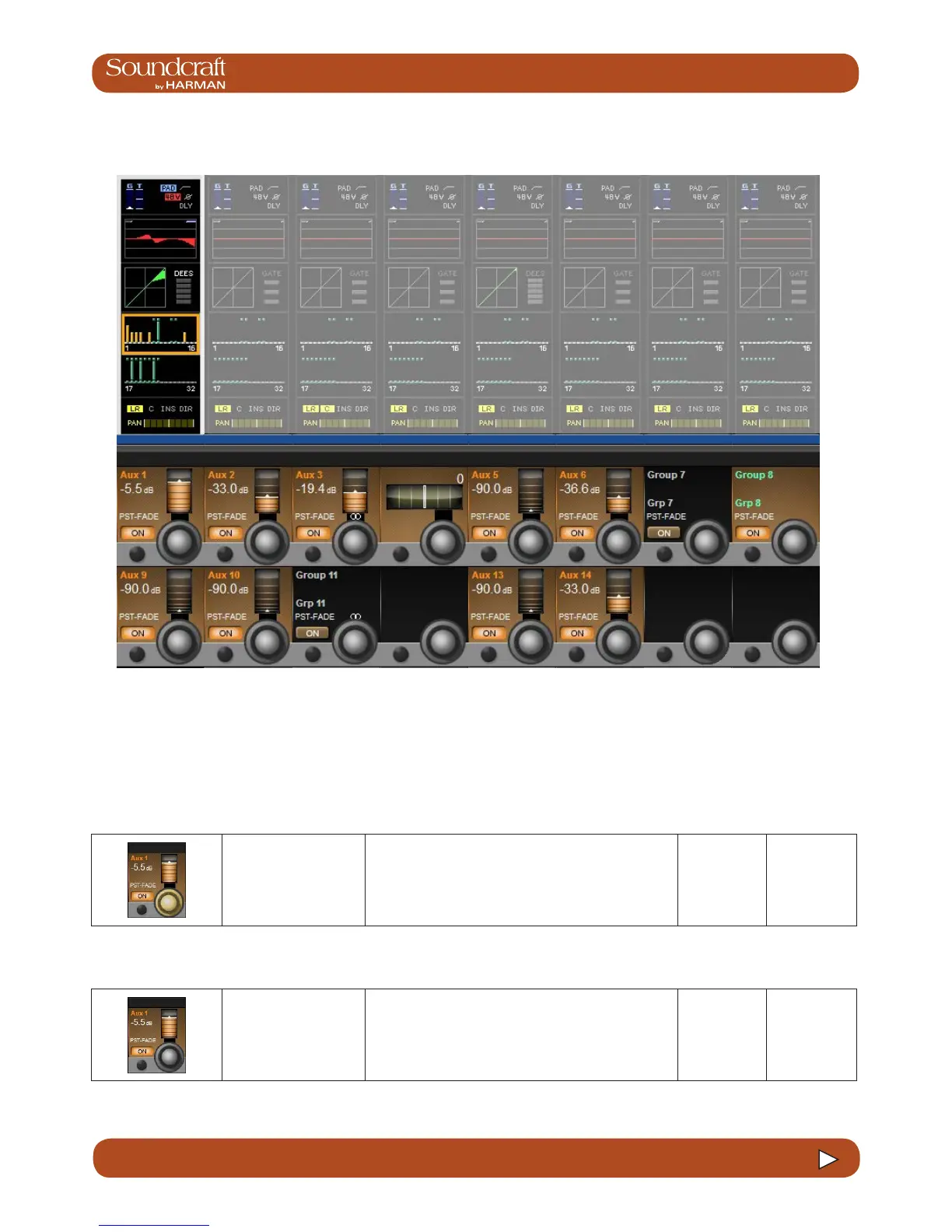

Input Touch Screen Audio Blocks - Busses
The Busses section ofthe input channel vistonics touch screen signal path provides access to all Aux and Group
contributions in the VST area, The Touch Screen block graphic shows activated Aux levels in orange and group
routings in Green. The controls vary depending on whether you are working on Auxilliaries or groups.
Auxiliary Send
Level Field / Group: Aux n Range Low Range High
Adjust the send level
from the input channel
to the numbered Aux
Bus.
The Orange bars in the bus touch screen areas show
also aux send levels. The control display includes post /
pre-fade routing of the aux buss.
-90dB +10dB
Auxiliary Send
On Field / Group: Aux n Inactive Active
Enables the numbered
aux send from the input
channel.
The corresponding aux level bar in the bus touch screen
area is highlighted orange when the aux send is enabled.
Off On

SoundCraft Vi3000 Specifications

General

Busses	24 mono/stereo
Fader Layers	4
Touch Screens	2
Sample Rate	96 kHz
Bit Depth	24-bit
Faders Type	Motorized
Digital I/O	AES/EBU
Remote Control	Via ViSi Remote iPad app
Faders	36
EQ	4-band parametric
Output Channels	24 mono/stereo busses + matrix
Connectivity	Ethernet, USB
Mixing Channels	Up to 96
Effects	Lexicon FX engine
Routing	Fully flexible
Input Channels	Up to 96
