4.1 4.1: Hardware > Local I/O
4.1: Hardware > Local I/O

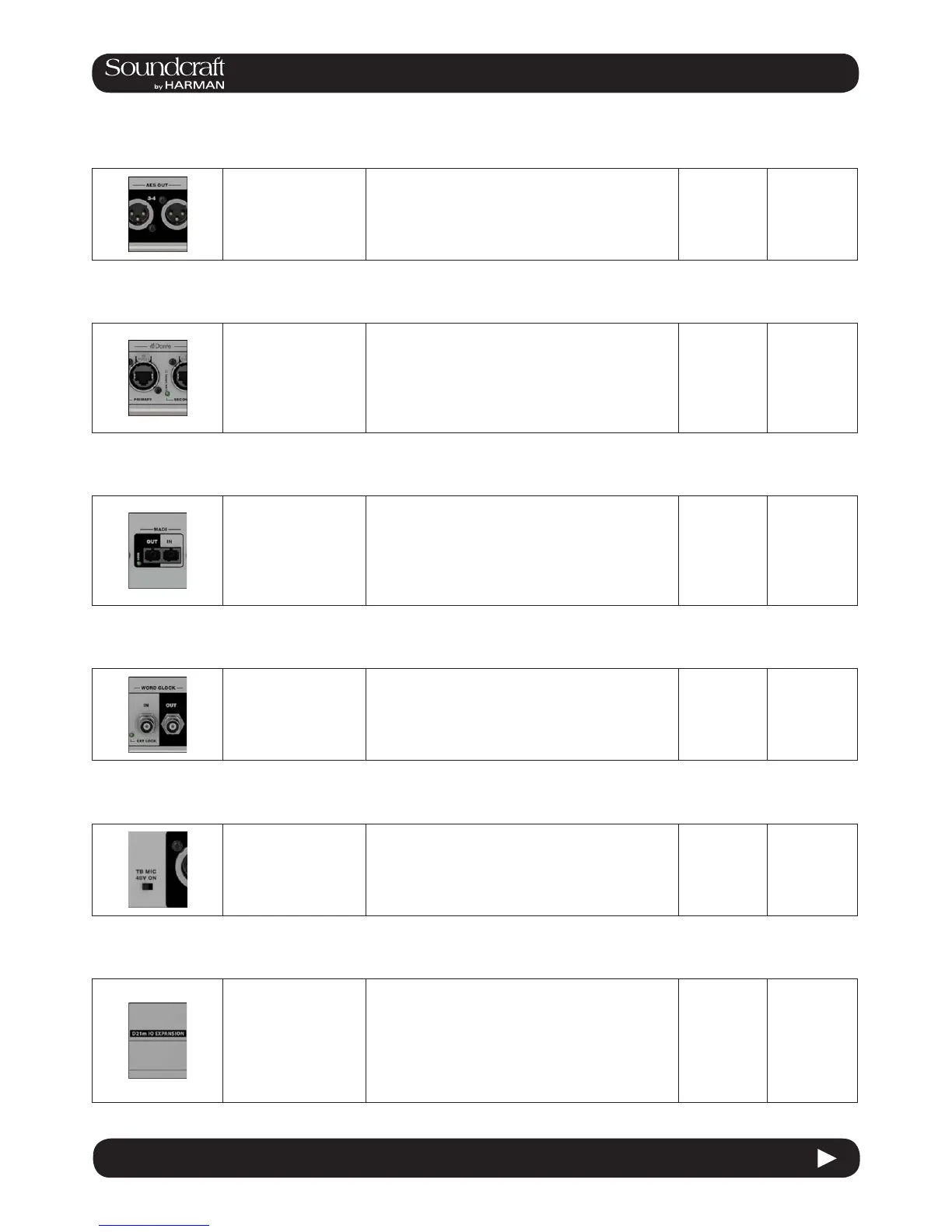

AES I/O
2 x 3-pin XLR AES (two-
chanel) digital audio
input and output.
DANTE
Input and output
Interface ports for a
a DANTE (Audinate)
digital audio network.
Please note, the Vi 3000 MADI local MADI and DANTE
ports share an input and so are exclusive. That is, you
can choose either a local MADI or DANTE input. The
outputs are 'parallel' and a work concurrently. The choice
between the MADI and DANTE inputs is determined by
the DANTE/MADI global switch in the Setting tab of the
main menu - accessed with the [MENU] button.
MADI I/O
Input and output
Interface ports for a
a DANTE (Audinate)
digital audio network.
Please note, the Vi 3000 MADI local MADI and DANTE
ports share an input and so are exclusive. That is, you
can choose either a local MADI or DANTE input. The
outputs are 'parallel' and a work concurrently. The choice
between the MADI and DANTE inputs is determined by
the DANTE/MADI global switch in the Setting tab of the
main menu - accessed with the [MENU] button.
Wordclock I/O
External wordclock
interface. Currently,
an external clock input
must be set to 48kHz
Talkback Mic
48V Inactive Active
Switch to apply 48
phantom power to the
talkback mix input on
the top panel of the
console.
No Power
phantom
powered
D21m Slots
D21m Slots, labelled
slots I, J, K, and L.
These card slots can be used for any available D21m op-
tion cards of which there is a large range including MADI
(Cat 5 or Optical) Stagebox connection, Universal Audio
Realtime Rack connection, ADAT (16ch single slot), Blu
Link (32ch single slot), Aviom (16 ch single slot), Ether-
sound (64ch double slot), Cobranet (32ch single slot),
Line in (8ch single slot), line out (8ch single slot), AES/
EBU (16ch double slot), and mic in (4ch single slot).
