SPECTRA PRECISION FOCUS 2 SERIES TOTAL STATION USER GUIDE
5 – Applications
89

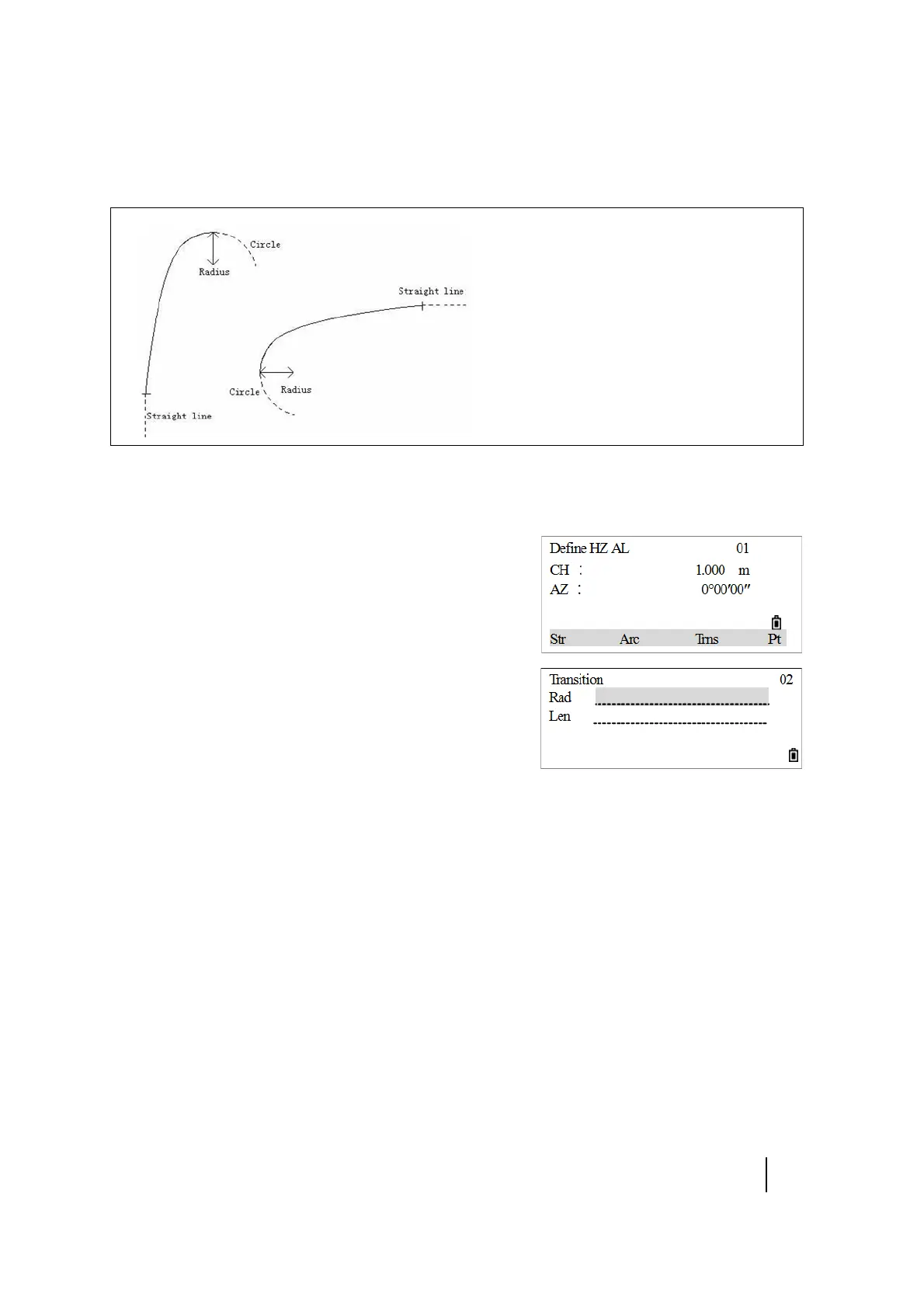

Transition
A transition curve consists of the minimum radius and arc length. Transition radius value rules is the
same as the arc radius value rule; that is, the arc length cannot be negative.
To define the transition curve:
1. In the Define HZ AL screen, press Trns.
The Transition Definition screen appears.
2. Enter the radius and arc length, and press [REC/ENT] to
record this data.
The display returns to the Alignment Definition main
menu, and displays the chainage of end point of the
transition and azimuth at this point.
