Oxygen Analyzer
B–6 4900002239 rev. G 7-11-17
5. Press down on the corner of the electro-optical module and hold.
6. With the screwdriver, press down on the clip extension and away
from the top of the module. Refer to Figure B–4. The electro-optical
module should pop up.
7. Tilt the electro-optical module forward and lift away from the DIN
rail.

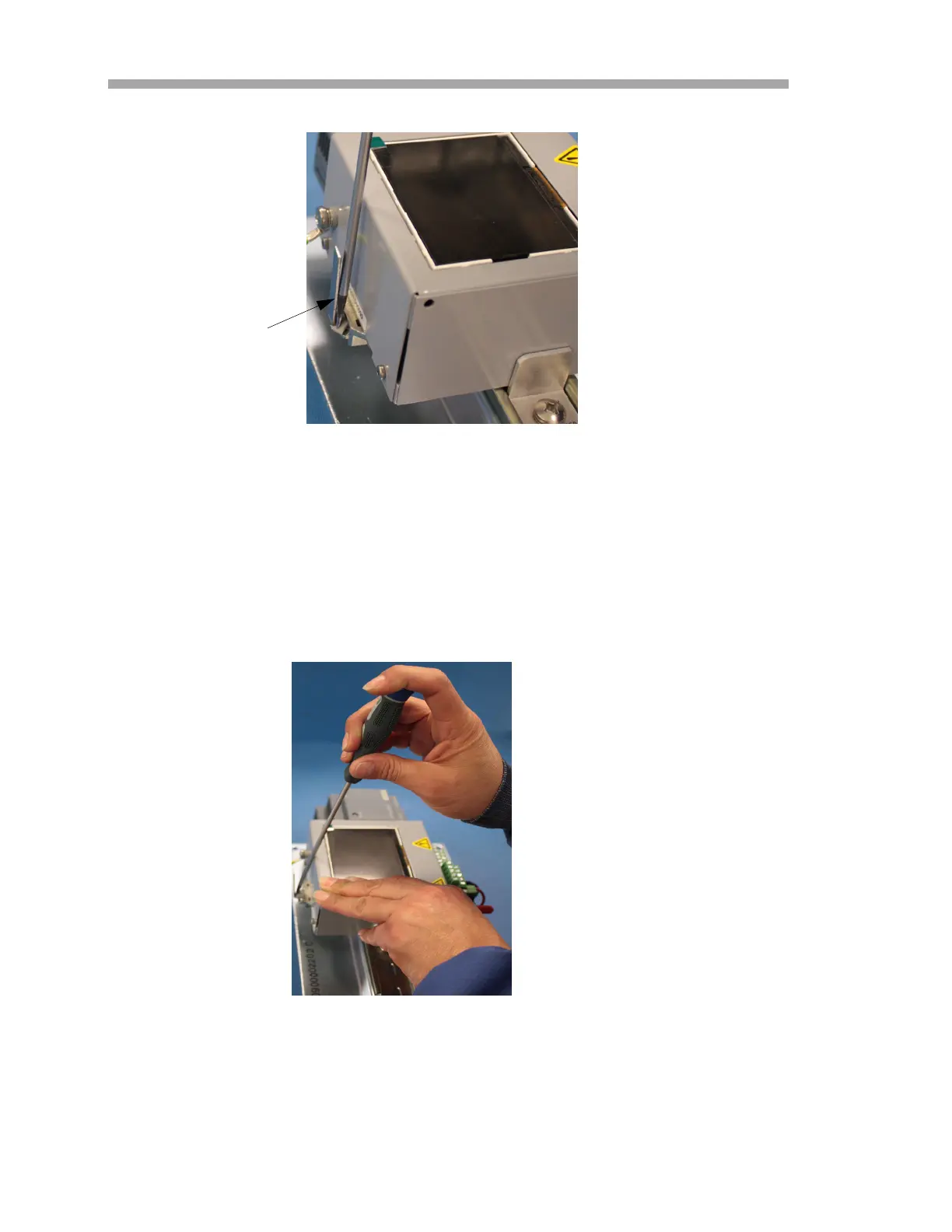

Figure B–3 Inserting screwdriver into clip
extension
CLIP EXTENSION
Figure B–4 Disconnecting the electro-optical
module from the DIN rail
