Oxygen Analyzer
B–14 4900002239 rev. G 7-11-17
9. Turn the conduit bracket parallel to the panel and carefully
disengage the probe from the Tee union (panel side). Refer to
Figure B–14.
10. Extend the probe conduit away from the panel and remove the
fittings from the probe tip (panel side). Refer to Figure B–15.
Take care not to disturb the temperature probe while removing
the oxygen probe conduit.
Take care to secure the tube nut, cable gland cap and plastic
ferrules for use with the replacement probe.

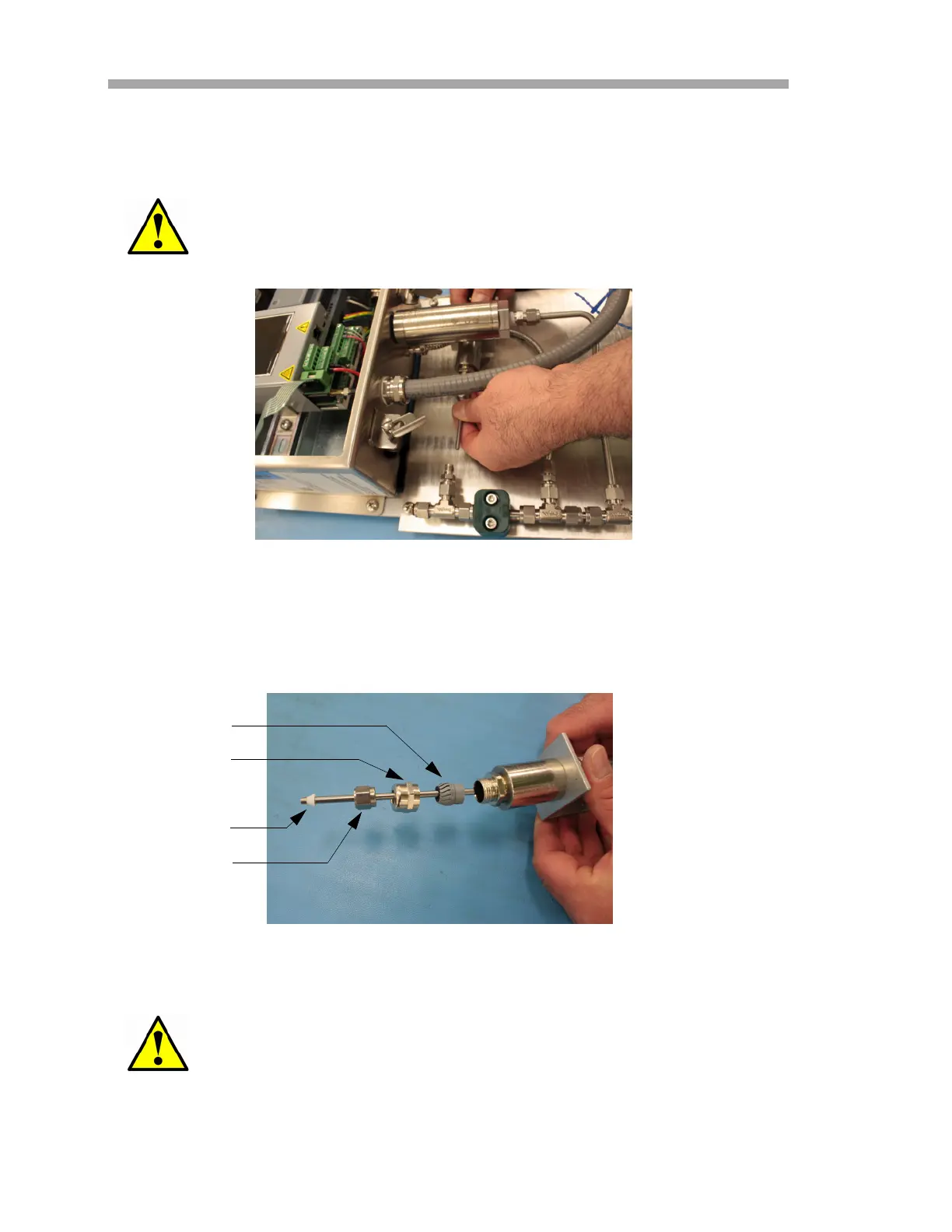

Figure B–14 Remove probe from Tee union (panel side)
Figure B–15 Fittings on oxygen probe (panel side)
PLASTIC
FERRULE
TUBE NUT
CABLE GLAND
CAP
CABLE GLAND
