Stihl MS 441 User Manual

99MS 441, MS 441 C

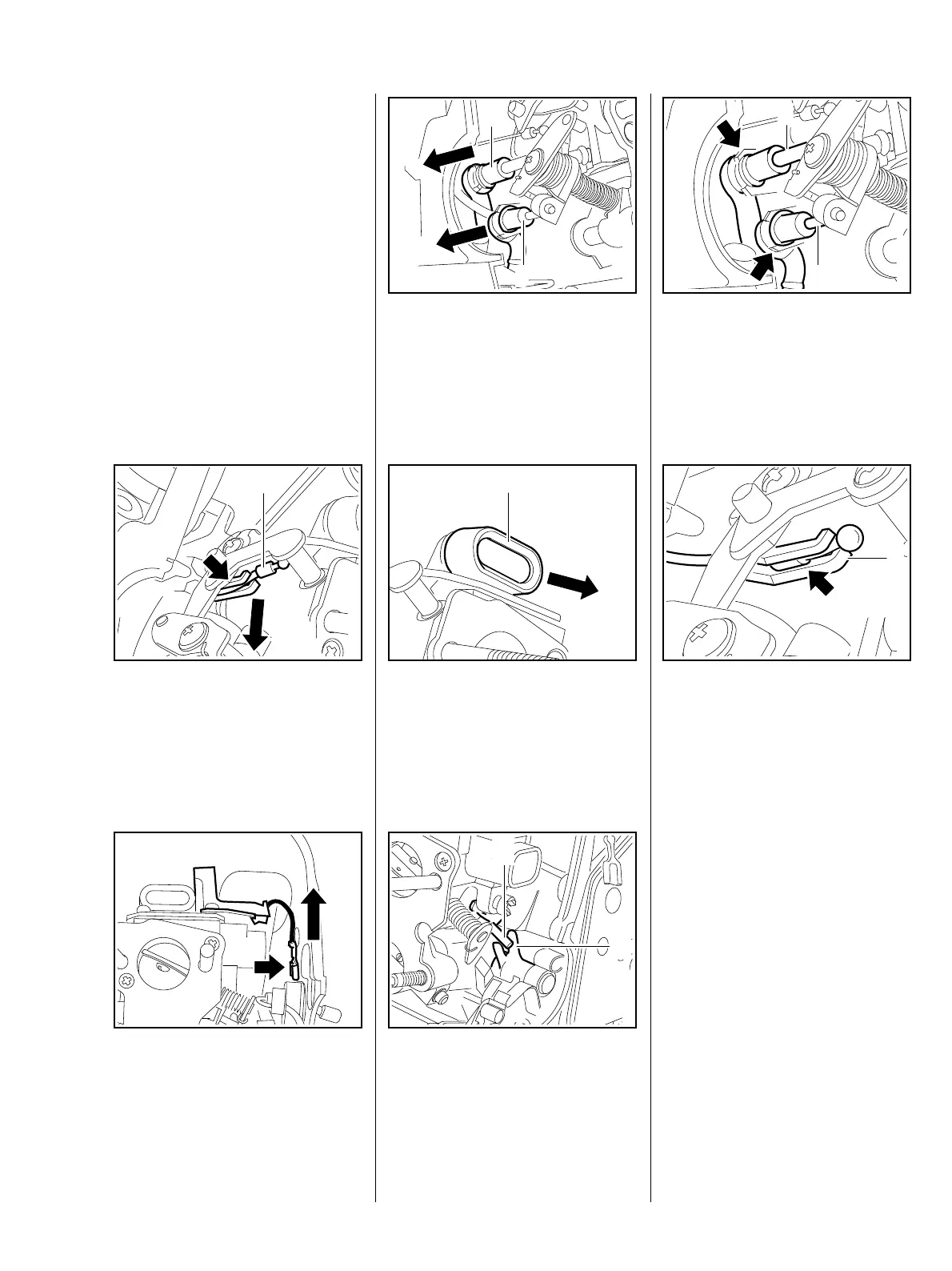

– Remove air filter, b 14.1.
– Remove filter base, b 14.1.2.
– Open filler cap and drain fuel
tank.
– Collect fuel in a clean container
and dispose of it in accordance
with environmental regulations.
The carburetor may only be
removed when the tank filler cap is
open.
: Set throttle trigger (arrow) to full
throttle and disconnect throttle
cable (1).
219RA200 TG
1
Machines with handle heating
: Unplug connector (arrow) from
terminal socket.
219RA201 TG
: Push fuel hose (1) and impulse
hose (2) back slightly to release
them.
– Remove carburetor.
219RA202 TG
1
2
– Examine carburetor, replace if
necessary.
: Remove and examine
bushing (1), replace if necessary.
1
219RA203 TG
– Refit carburetor.
: Lever (1) must engage lever (2)
in the carburetor.
2
1
219RA204 TG
– Hoses must be located in the
mounts (arrows).
– When reconnecting the hoses,
ensure that connectors (1+2) are
pushed into the hoses.
219RA205 TG
2
1
: Hook throttle cable into the
throttle cable retainer (1) so that
the nipple is squarely seated in
the mount (arrow).
– Reassemble all other parts in the
reverse sequence.
219RA206 TG
1
– Tightening torques, b 3.5.
– Check correct operation.
14.3 Carburetor removal
and installation

Stihl MS 441 Specifications

General

Displacement	70.7 cc
Weight	6.6 kg
Fuel Capacity	0.78 L
Chain Oil Capacity	0.36 l
Oil Capacity	0.36 l
Oil tank volume	0.36 l
Chain pitch	3/8"
