Stihl MS 441

137MS 441, MS 441 C
– Remove shroud, b 8.4.
– Pull boot off spark plug, b 9.4.
– Remove ignition module,
b 9.1.1.
Remove flywheel, b 9.5, so that
generator lead can be routed
correctly.
– Remove carburetor support,
b 14.6.1.
– Remove short circuit wire,
b 9.6.2.

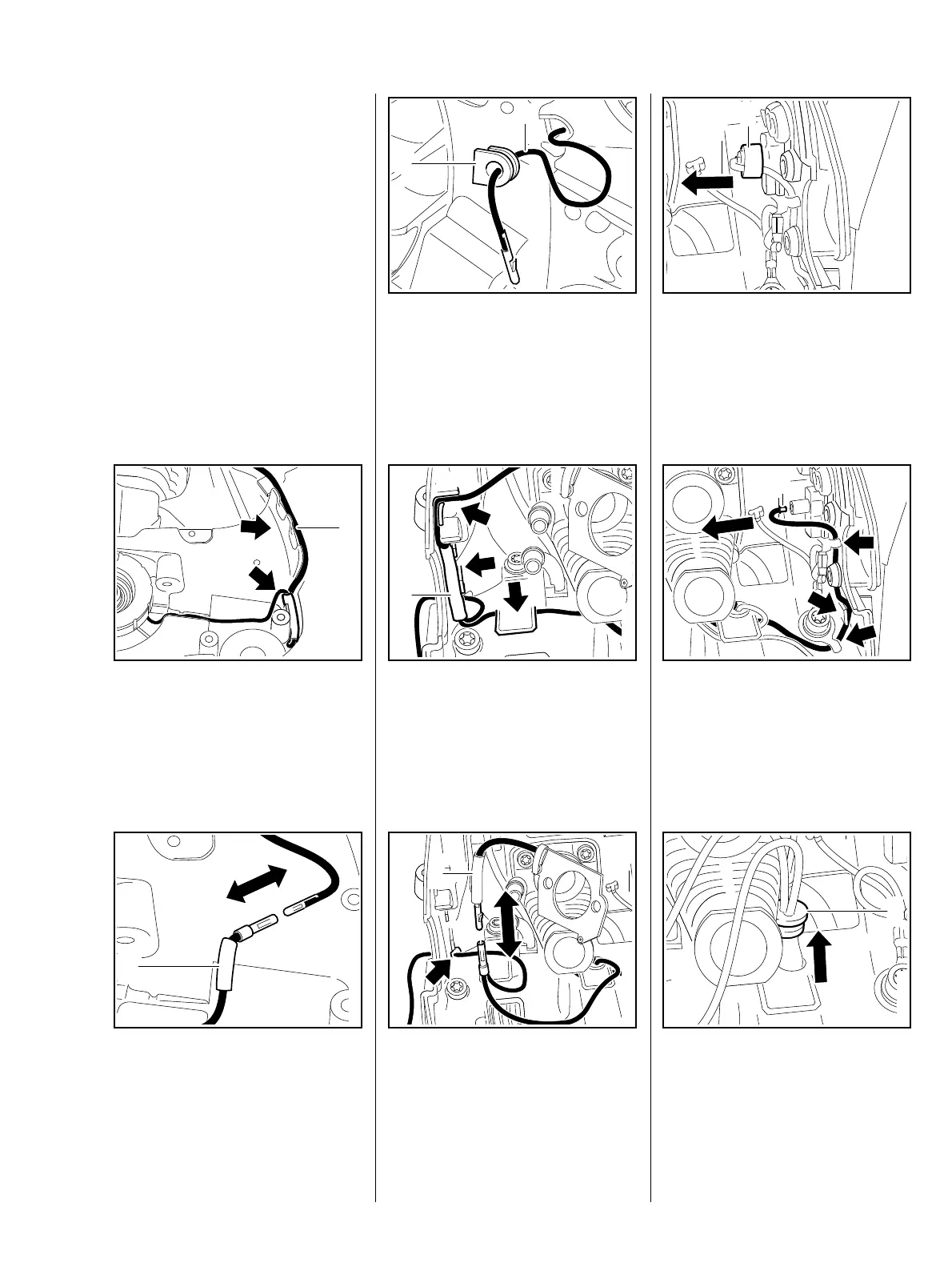

: Pull wiring harness (1) and plug
connection out of cable guides
(arrows).
219RA588 TG
1
: Slide insulating tube (1) towards
generator lead and disconnect
plug connection.
219RA589 TG
1
: Pull grommet (1) off wiring
harness (2).
– Examine grommet for signs of
damage, replace if necessary.
N
2
219RA590 TG
1
: Pull plug connection (1) and
wiring out of guides (arrows).
219RA591 TG
1
: Slide insulating tube (1) towards
carburetor heating element and
disconnect plug connection.
– Pull wiring harness out through
opening at the side (arrow).
219RA592 TG
1
: Pull cable retainer (1) off.
219RA593 TG
1
: Pull contact sleeve (1) out of
heating switch.
: Pull wiring harness out of cable
guides (arrows).
219RA594 TG
1
: Prise out grommet (1) and pull it
off the wiring harness.
– Examine grommet, replace if
necessary.
219RA595 TG
1
15.8 Wiring harness
15.8.1 Removal
