Stihl MS 441 User Manual

25MS 441, MS 441 C

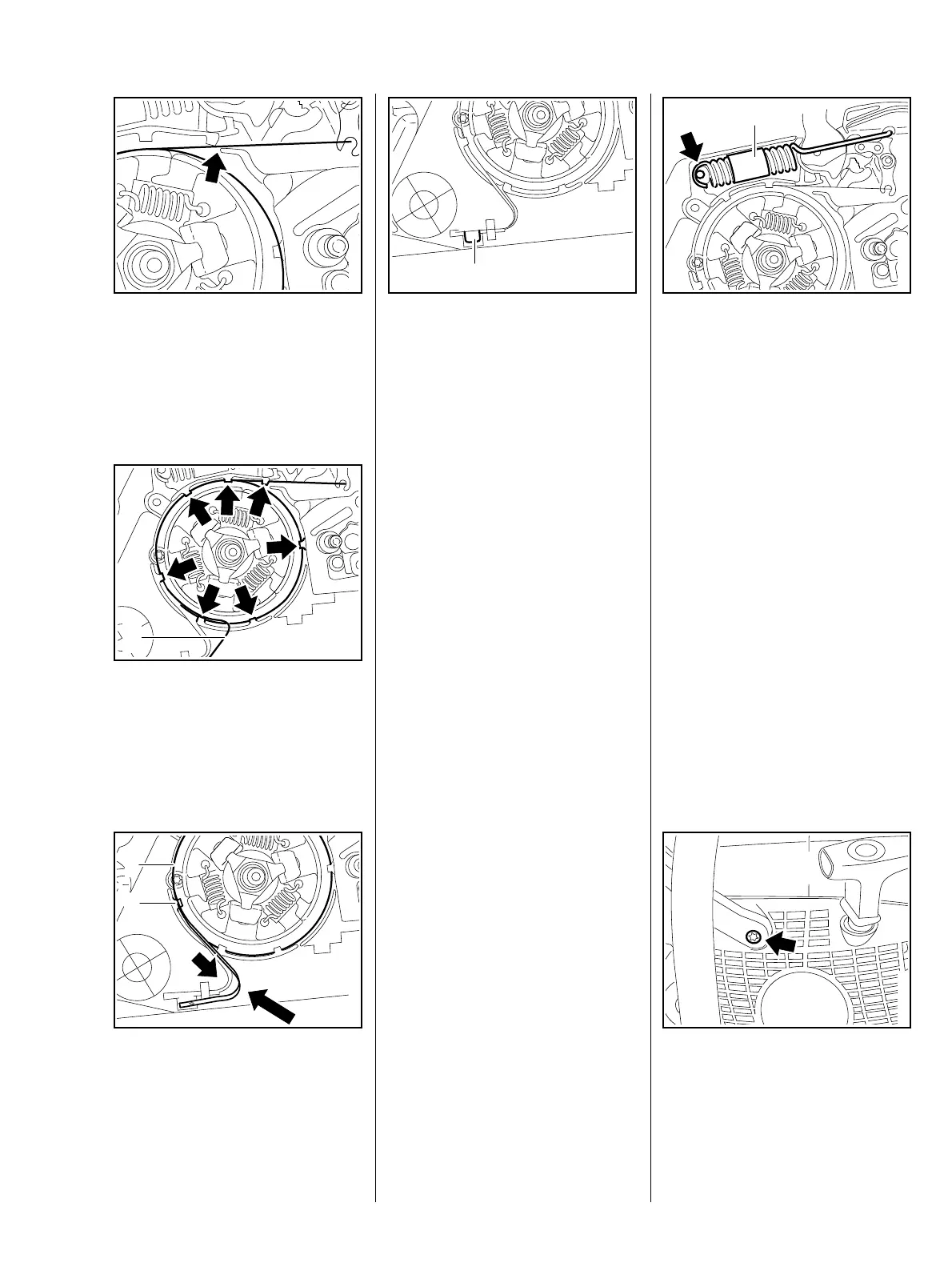

: First place brake band in guide
(arrow).
219RA051 TG
: Then guide brake band (1) over
studs (arrows) and press it into
the mount.
219RA047 TG
1
: Press brake band (1) into guide
(arrow) and at the same time
guide it over the studs (2).
1
2
219RA053 TG
: Fit and tighten down screw (1).
– Tightening torques, b 3.5.
– Reassemble all other parts in the
reverse sequence.
– Check correct operation.
219RA611 TG
1
– Troubleshooting chart, b 4.2.
– Remove shroud, b 8.4.
– Remove brake band, b 7.1.
– Push hand guard towards saw
chain.
219RA052 TG
1
The brake spring is now relaxed.
: Ease brake spring (1) off pivot pin
(arrow).
– Disconnect brake spring from
brake lever.
: Take out screw (arrow).
219RA054 TG
7.2 Brake lever

Stihl MS 441 Specifications

General

Displacement	70.7 cc
Weight	6.6 kg
Fuel Capacity	0.78 L
Chain Oil Capacity	0.36 l
Oil Capacity	0.36 l
Oil tank volume	0.36 l
Chain pitch	3/8"
