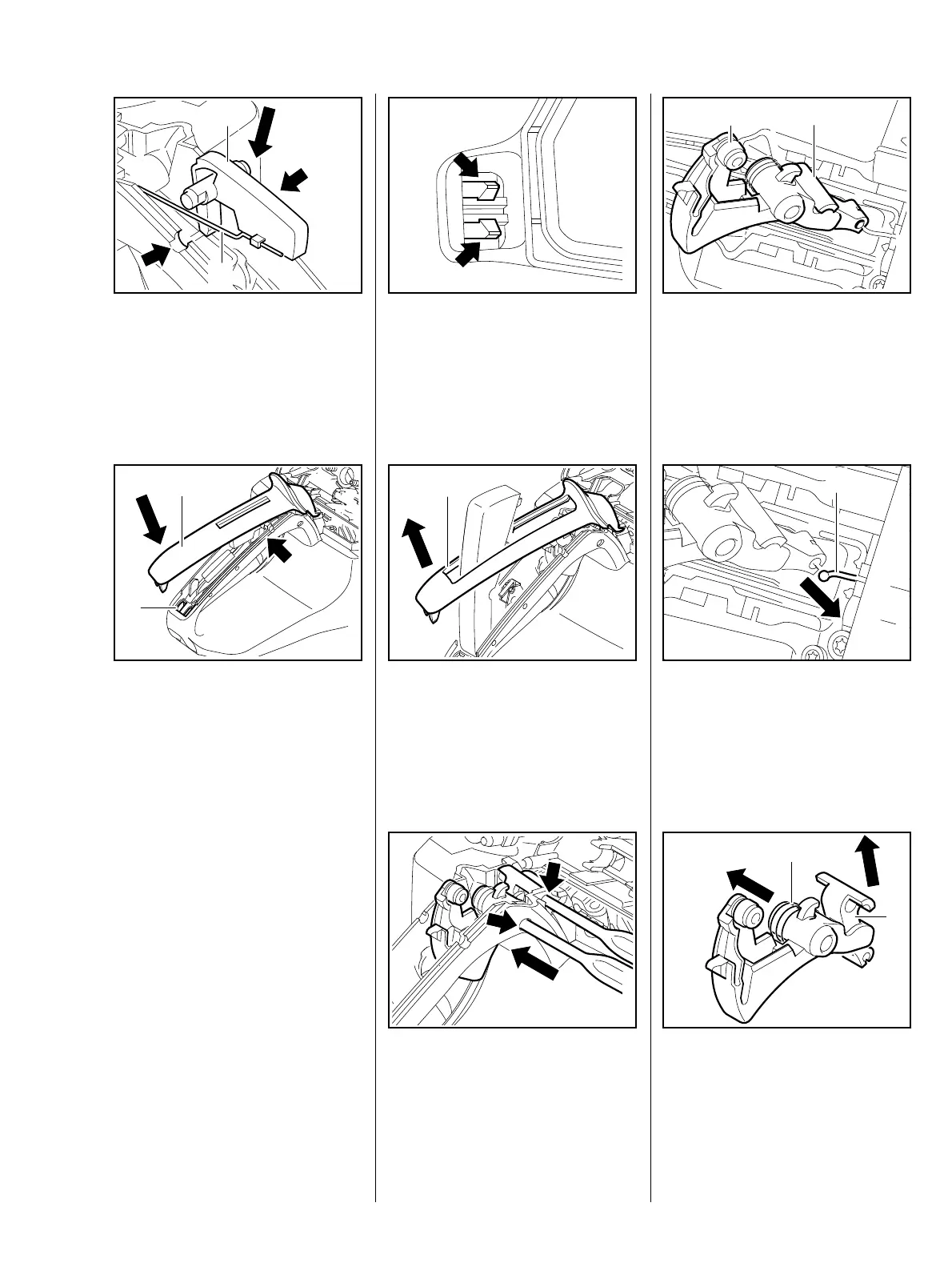

: Hook trigger interlock (1) into leg
spring (2) and insert it in the
bearing guides (arrows).
The trigger interlock may pop out.
219RA357 TG
1
2
– Attach handle moulding (1)
(arrow).
: Fit handle moulding (1) over the
trigger interlock and press the
pegs into the mounts (2) until
they engage.
1
2
219RA358 TG
– Check correct operation.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5.
– Remove spacer flange,
b 14.2.
: Push pegs (arrows) apart and
through the tank housing.
219RA342 TG
: Remove handle moulding (1).
1
219RA435 TG
The drag lever is located in the
throttle trigger and must therefore
also be removed.
: Drive pins (arrows) out with
a punch.
219RA436 TG
: Lift and turn throttle trigger (1)
with lever (2).
219RA437 TG
21
: Disconnect throttle cable (1).
– Remove throttle trigger and lever.
219RA438 TG
1
: Pull out the lever (1).
– Unhook leg spring (2) from
throttle trigger.
219RA439 TG
1
2
12.3 Throttle trigger / throttle
trigger interlock /
QuickStop Super
