Stihl MS 441 User Manual

92 MS 441, MS 441 C

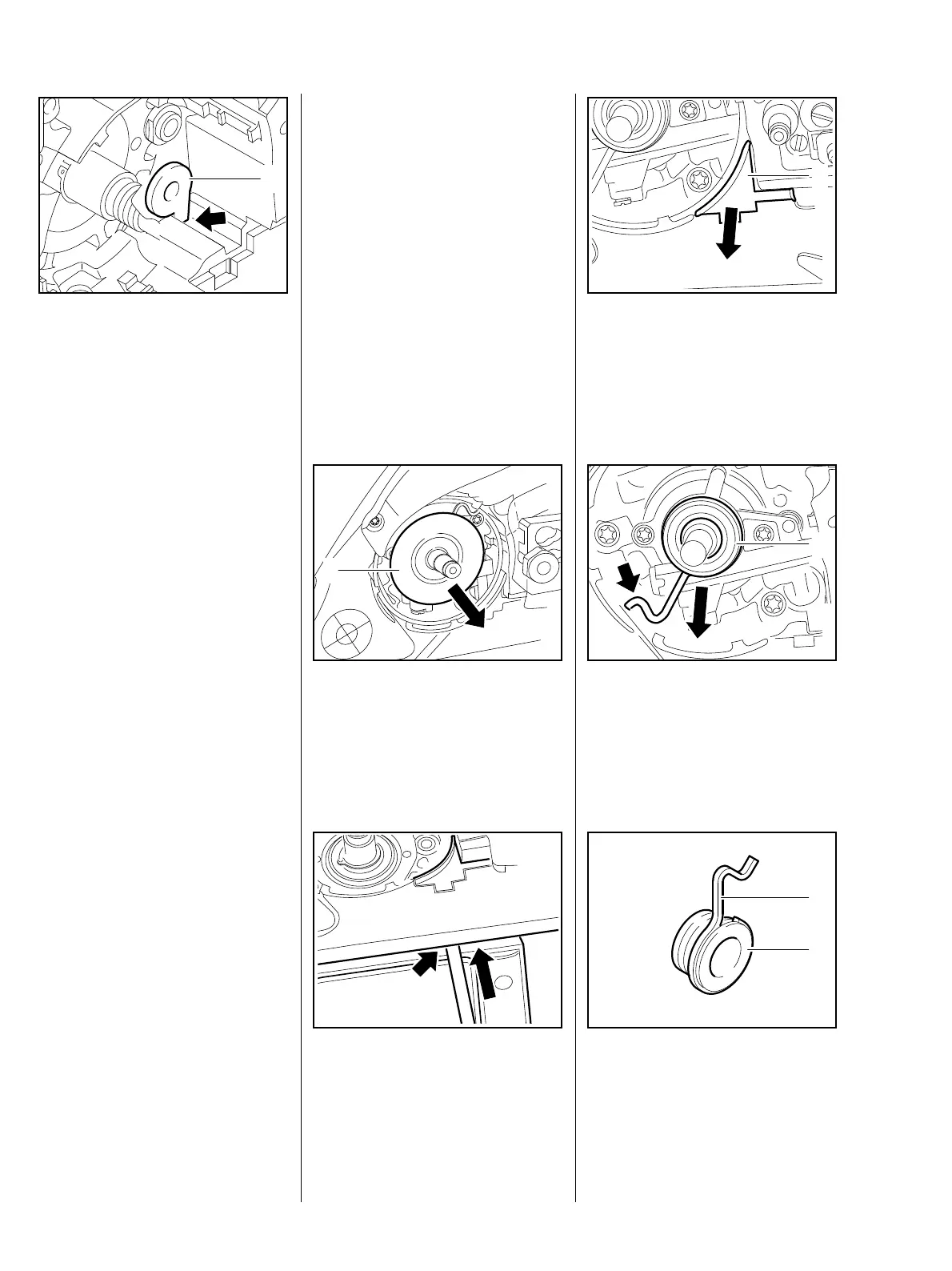

: Align oil suction hose (1) – the tab
(arrow) must engage in the guide.
– Press oil suction hose in until the
groove engages the bevel on the
crankcase.
– Check position of pick-up body
219RA462 TG
1
with the aid of assembly hook
5910 893 8800 if necessary.
– Install oil pump, b 13.3.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5.
– Troubleshooting chart, b 4.3.
– Remove clutch, b 6.
– Remove side plate, b 7.1.
: Remove washer (1).
TOP
1
219RA463 TG
: Push out detent between
crankcase and tank housing
(arrow).
219RA616 TG
: Take out cover (1).
1
219RA464 TG
: Pull worm (1) with spring (arrow)
out of oil pump.
219RA465 TG
1
: Examine spring (1) and worm (2),
replace if necessary.
219RA470 TG
1
2
13.3 Oil pump

Stihl MS 441 Specifications

General

Displacement	70.7 cc
Weight	6.6 kg
Fuel Capacity	0.78 L
Chain Oil Capacity	0.36 l
Oil Capacity	0.36 l
Oil tank volume	0.36 l
Chain pitch	3/8"
