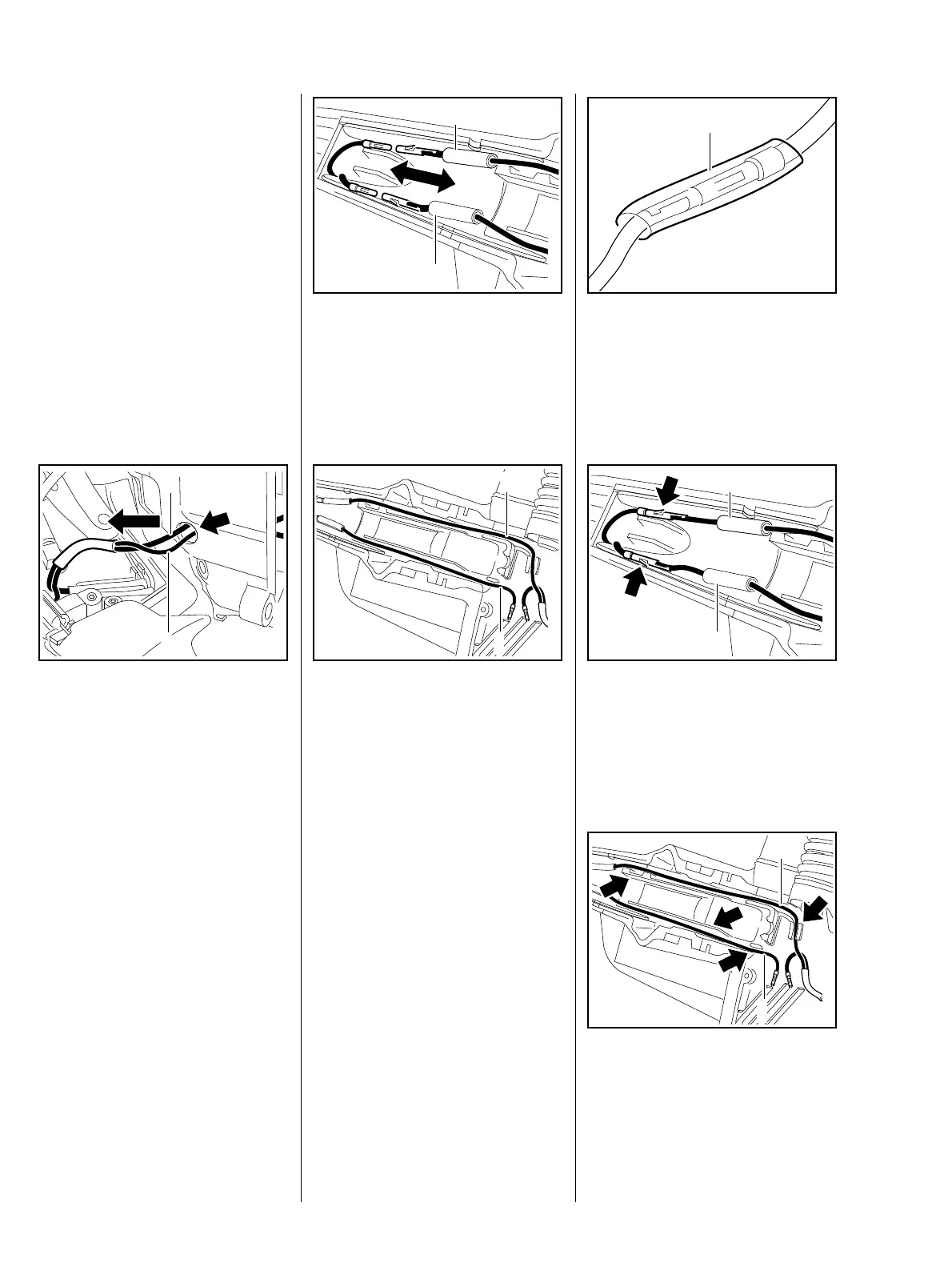

138 MS 441, MS 441 C
– Remove carburetor housing and
turn it aside, b 14.6.2.
: Pull wiring harness (1) out of
carburetor housing.
– Disconnect front handle heating
element from wiring harness,
b 11.5.
– Remove throttle trigger and
219RA569 TG
1
1
trigger interlock, b 12.2 or
b 12.3.
– Remove throttle cable retainer,
b 7.3.2.
: Slide insulating tubes (1) towards
handle heating element and
disconnect plug connections.
219RA596 TG
1
1
: Detach wiring harness (1) and
wiring (2) from guides and
examine them, replace if
necessary.
219RA597 TG
1
2
For all the following assembly steps:
: Insulating tubes must enclose the
plug connections completely –
risk of short circuiting.
219RA606 TG
1
– Push connector and socket
terminals (arrows) together as far
as possible.
: Slide insulating tubes (1) over the
plug connections.
1
1
219RA598 TG
: Press wiring harness (1) and
wiring (2) into the guides
(arrows).
– Install throttle trigger and trigger
interlock, b 12.2.
219RA599 TG
1
2
15.8.2 Installation
