40 MS 441, MS 441 C

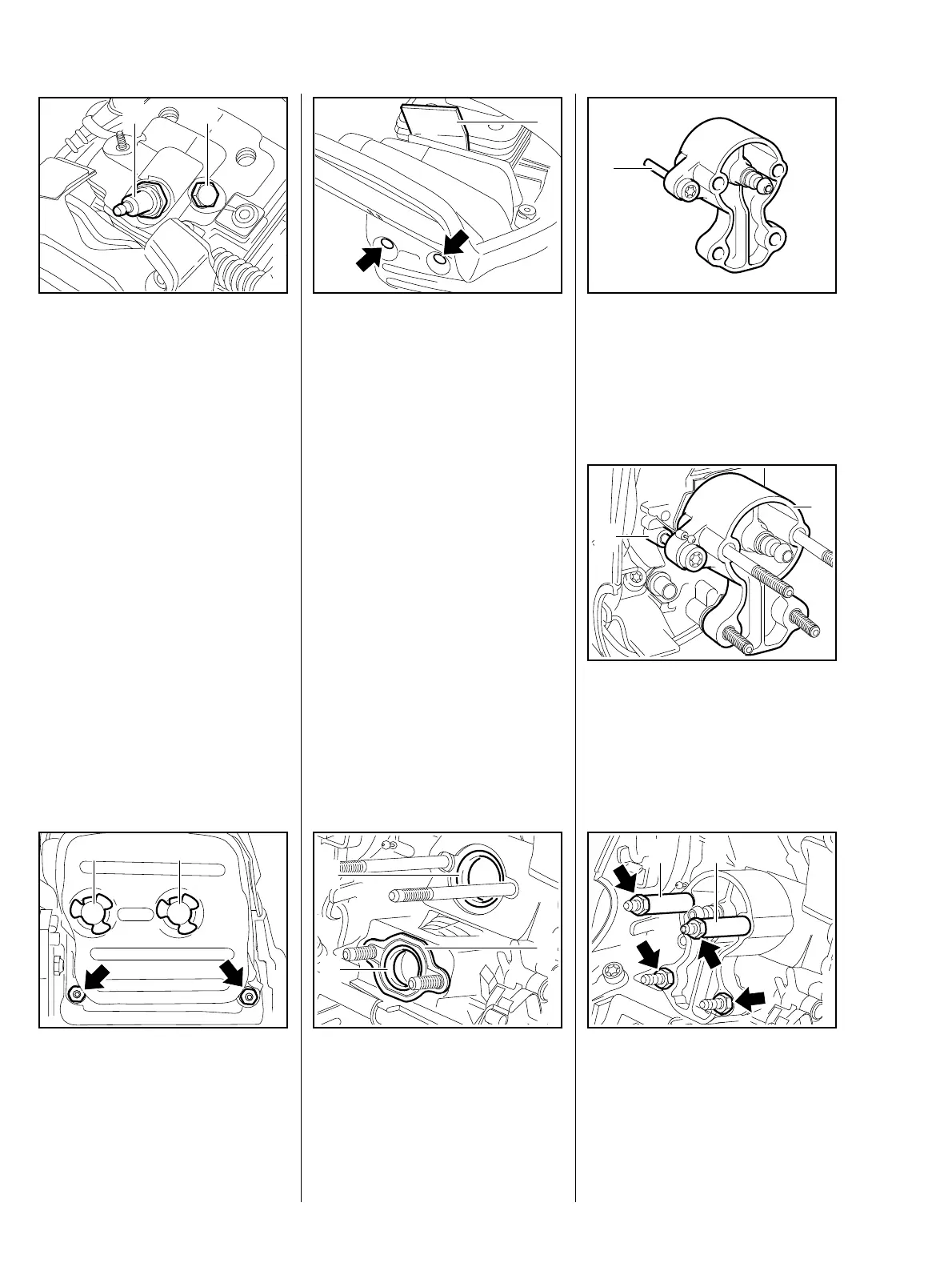

– Remove shroud, b 8.4.
– Set piston to top dead centre
(TDC) (can be seen through the
spark plug hole).
– Remove decompression valve,
b 8.9.
219RA279 TG
2 1
: Screw in plug (1) 1122 025 2200
and tighten it securely.
: Screw in spark plug (2) and
tighten it securely.
– Tightening torques, b 3.5.
: Prise out plugs (1).
: Unscrew nuts (arrows).
219RA280 TG
1 1
: Undo screws (arrows).
: Slide sealing plate (1)
0000 855 8107 between cylinder
exhaust port and heat shield and
lightly retighten the screws.
The sealing plate must fill the space
219RA281 TG
1
between the screws completely.
– Remove carburetor, b 14.3.
: Ensure that the sleeves (1) and
washer (2) are present.
219RA282 TG
1
2
1
: Pin (1) must be present on test
flange 1138 890 1200 – seal
impulse hose.
219RA283 TG
1
– Slide test flange
1138 890 1200 (1) into place.
– The pin must be inserted in the
impulse hose (2) when sliding the
test flange into place.
219RA284 TG
1
2
– Push 35 mm long sleeves (1)
onto the upper stud bolts.
: Screw on nuts (arrows) and
tighten them securely.
219RA285 TG
1 1
8.2.1 Preparations
