73MS 441, MS 441 C
– Remove fan housing,
b 10.2.

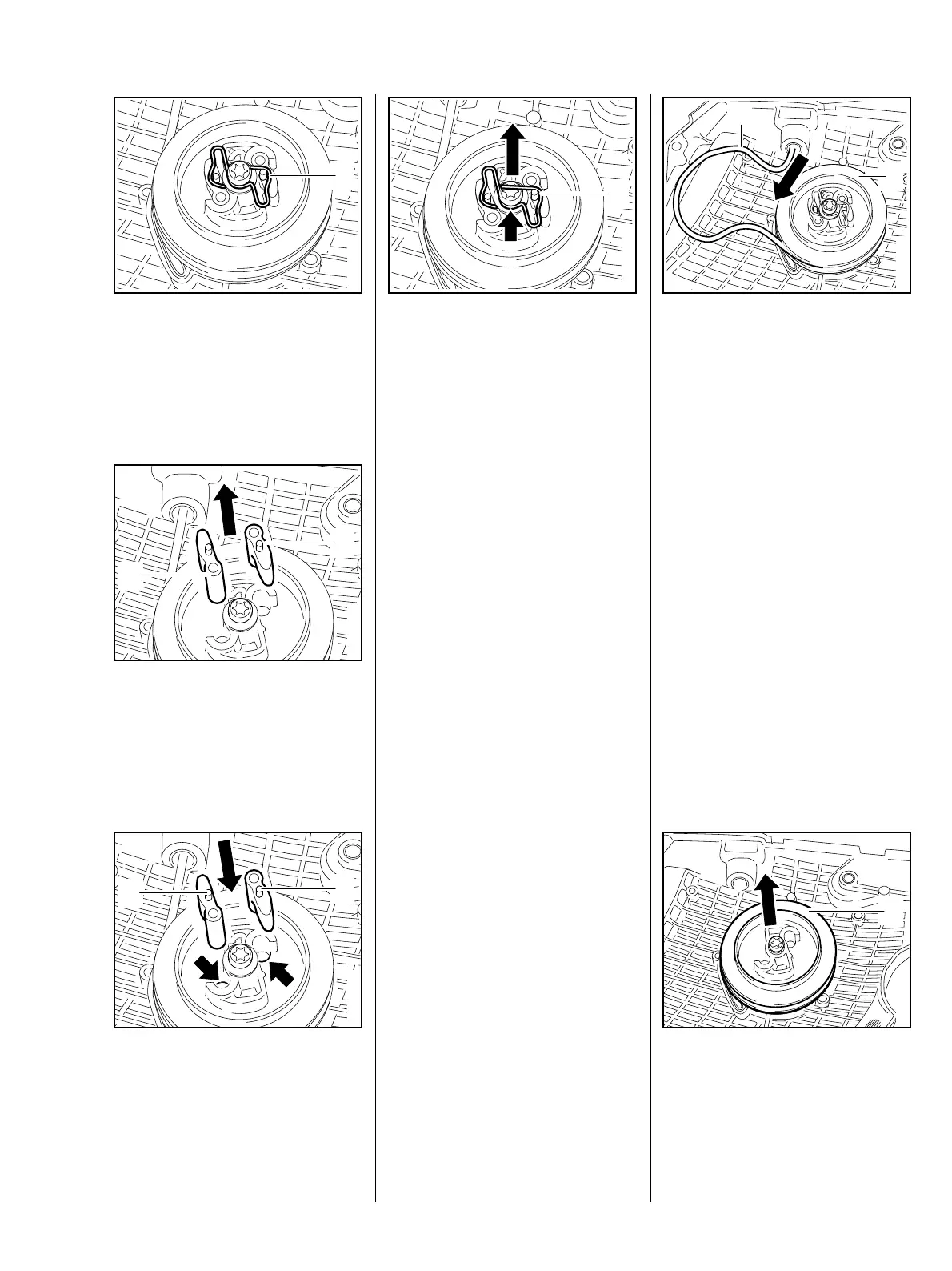

: Carefully ease spring (1) off the
rope rotor post.
219RA407 TG
1
: Pull out pawls (1).
219RA408 TG
1
1
– Press new pawls into holes
(arrows) and grease the pegs (1),
b 17.
219RA409 TG
1
1
: Position spring (1) so that its
anchor loops engage the pegs of
the pawls and the curved part of
the spring (arrow) is located in
the groove of the rope rotor post.
: Then slide the straight part of the
spring over the rope rotor post
219RA414 TG
1
until it engages in the groove.
– Reassemble all other parts in the
reverse sequence.
Relieve tension of rewind spring
– Remove fan housing,
b 10.2.
: Pull out the starter rope (1) about
5 cm, holding the rope rotor (2)
steady at the same time.
219RA410 TG
2
1
– Take three full turns off the
installed rope rotor.
– Pull out the rope with the starter
grip and carefully release the
rope rotor.
– Remove the starter rope and any
remaining rope, b 10.5.
The system will not be under
tension if either the starter rope or
the rewind spring is broken.
– Remove spring and pawls,
b 10.3.
– Take out washer (1).
The rewind spring must be relieved.
219RA412 TG
1
10.3 Pawls 10.4 Rope rotor
