31MS 441, MS 441 C

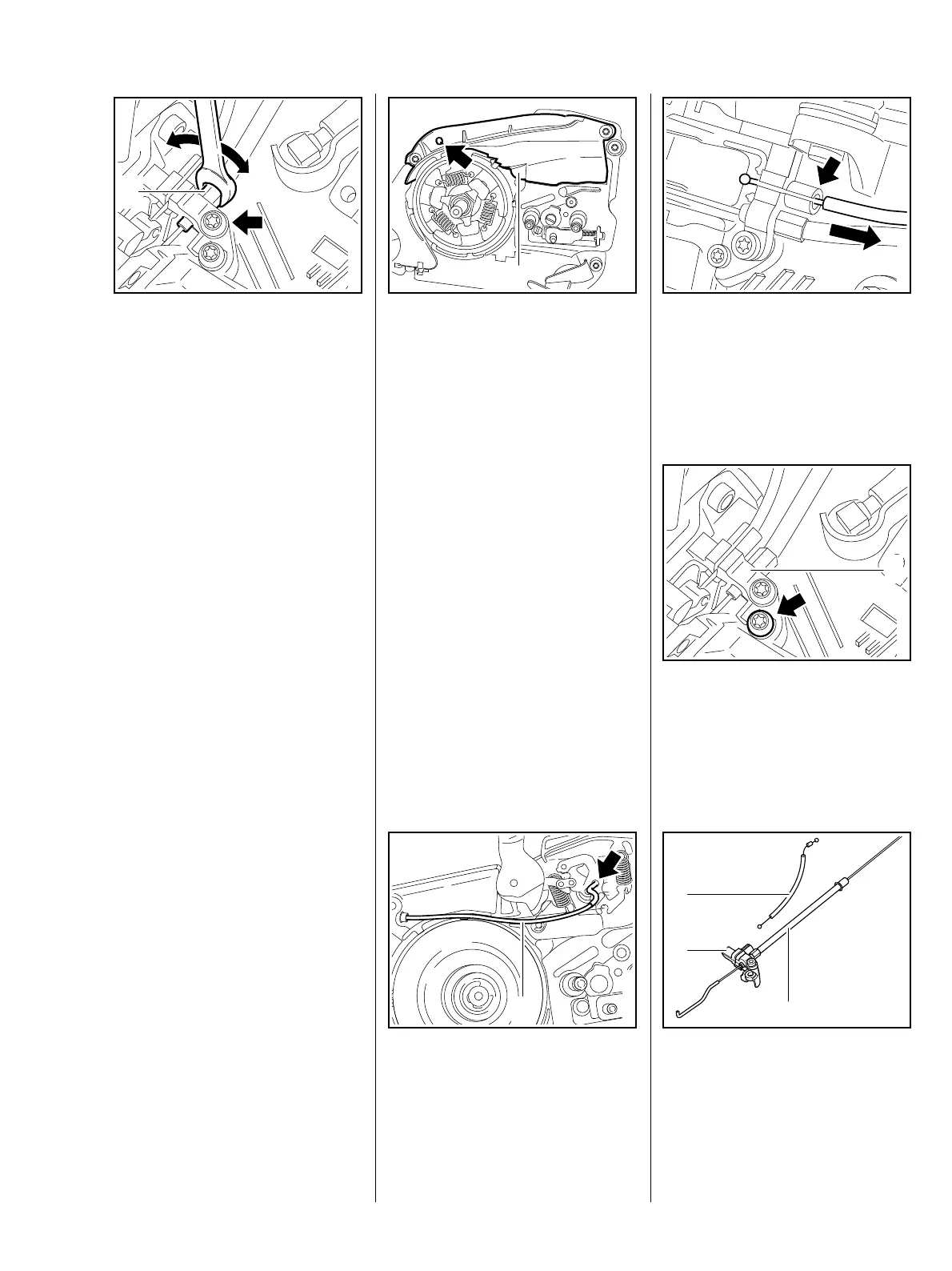

: Use a size 6 fork wrench to
adjust the play via the adjusting
screw (1).
Turn the fork wrench
counterclockwise to reduce the
play.
219RA084 TG
1
Turn the fork wrench clockwise to
increase the play.
: Tighten clamping screw (arrow).
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5.
– Remove chain sprocket cover,
bar and chain, b 5.
– Remove cover (1), b 7.1.
The cover (1) for machines with
QuickStop Super is marked with the
letter "Q" (arrow).
219RA066 TG
1
– Remove carburetor housing,
b 14.6.2.
– Remove throttle trigger, b 12.3.
– Remove switch lever, b 12.3.1.
– Unhook brake spring from
brake lever, b 7.3.
: Pull brake cable (1) out slightly
and disconnect it.
1
219RA085 TG
: Pull throttle cable out of guide
(arrow).
219RA086 TG
: Take out screw (arrow).
– Remove throttle cable retainer (1)
with brake cable and pull brake
cable out of crankcase.
219RA087 TG
1
– Examine throttle cable (1),
brake cable (2) and throttle cable
retainer (3) and replace any
damaged parts.
219RA088 TG
2
1
3
7.3.2 Brake cable, removal and
installation
