38 MS 441, MS 441 C

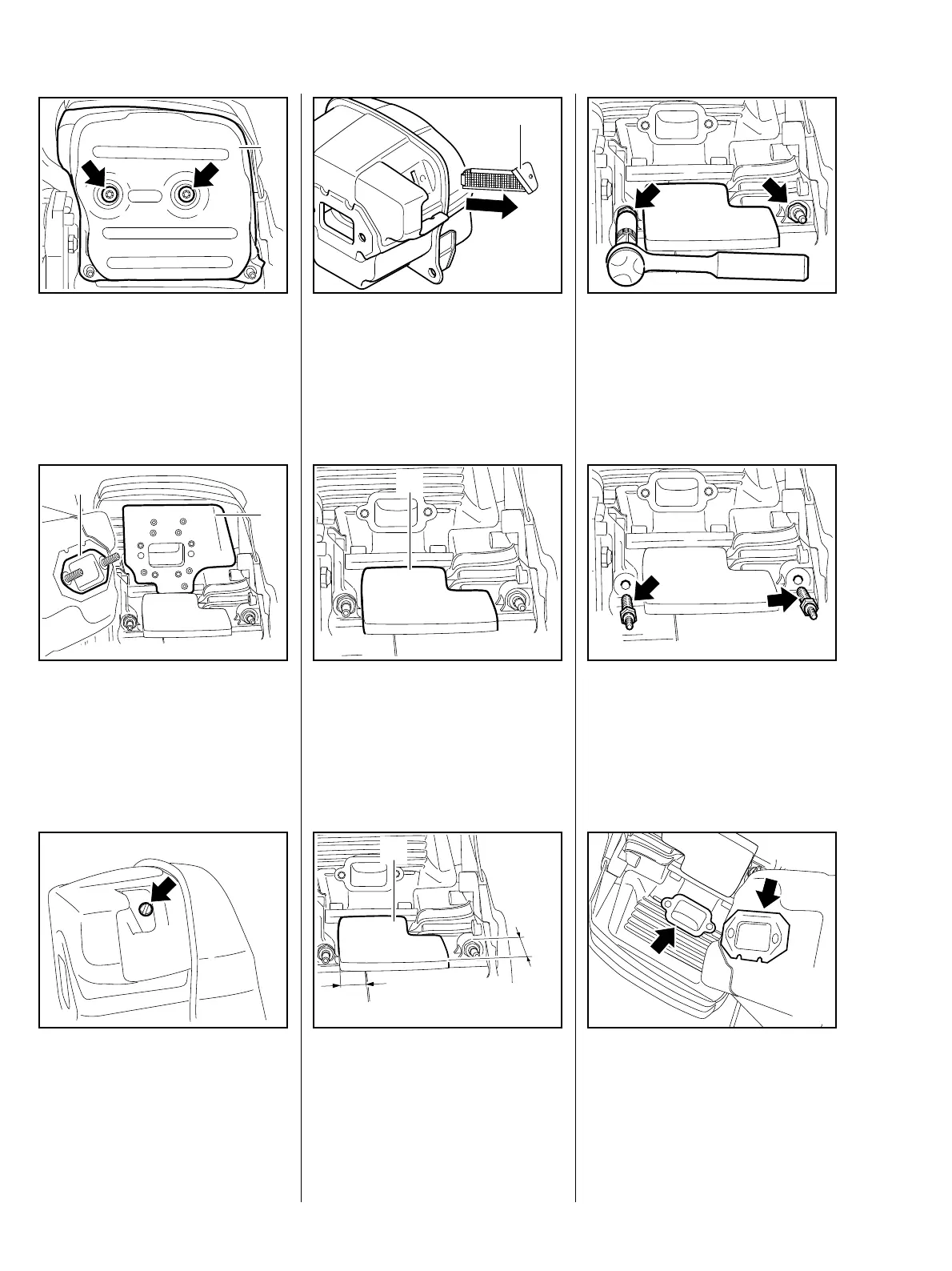

: Take out screws (arrows).
– Remove and examine muffler (1),
replace if necessary.
219RA190 TG
1
: Remove heat shield (1) and
gasket (2).
Spark arresting screen
219RA191 TG
1
2
: Take out screw (arrow).
219RA192 TG
: Pull out spark arresting
screen (1).
– Clean spark arresting screen (1)
and fit a new screen if necessary.
219RA193 TG
1
: Examine insulating mat (1)
if fitted and use a new mat if
necessary.
219RA194 TG
1
– Note the following dimensions
when installing the insulating
mat (1):
a = 11 mm
b = 9 mm
219RA194 TG
a
b
1
– Examine stud bolts (arrows) and
replace if necessary.
: Take out stud bolts (arrows).
219RA195 TG
– Coat screw thread (arrow) of stud
bolts with screw locking adhesive
before fitting the stud bolts,
b 17.
219RA196 TG
– Move the machine into a vertical
position.
: Examine and clean the sealing
faces (arrows), and remove any
gasket residues.
219RA197 TG

Stihl MS 441 Specifications

General

Displacement	70.7 cc
Weight	6.6 kg
Fuel Capacity	0.78 L
Chain Oil Capacity	0.36 l
Oil Capacity	0.36 l
Oil tank volume	0.36 l
Chain pitch	3/8"
