97MS 441, MS 441 C

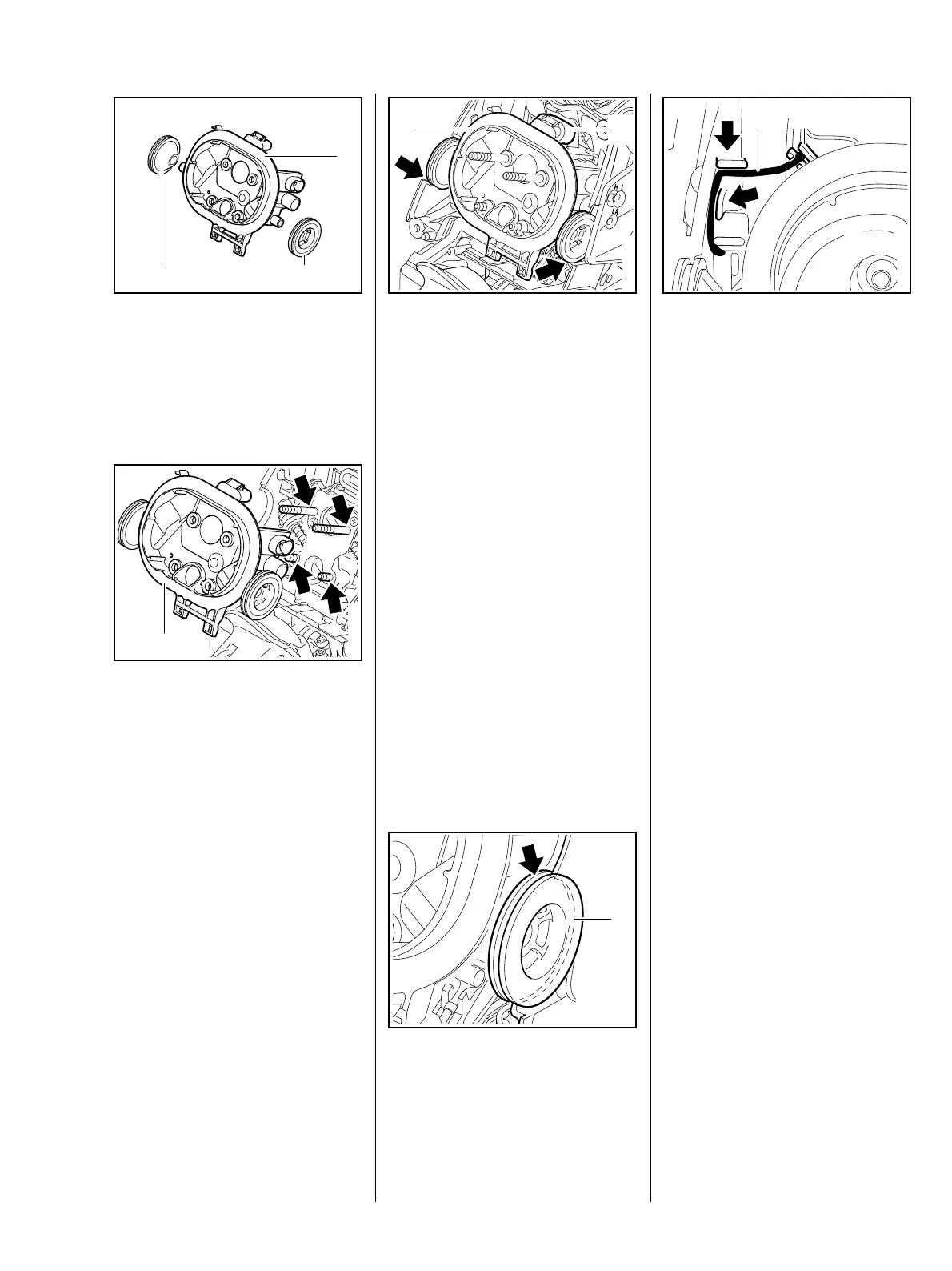

– Examine buffer (2) and filter
base (1), replace if necessary.
219RA491 TG
1
22
: Slide filter base (1) onto stud
bolts (arrows).
219RA492 TG
1
– Coat bushing (2) with STIHL
Press Fluid before installing the
filter base, b 17.
: Push filter base (1) fully home in
bushing (2) and mounts (arrows).
219RA493 TG
1
2
: The groove (arrow) on the buffer
must engage the ridge (1) of the
carburetor housing.
– Fit nuts and screw them tight.
219RA617 TG
1
Machines with handle heating
: Attach lead (1) to mount (2) and
press it into the cable guides
(arrows).
The lead must not touch either the
carburetor levers or the spacer
219RA494 TG
1 2
flange.
– Reassemble in the reverse
sequence.
– Tightening torques, b 3.5.
