Objet260 User Guide 6 Operating and Maintaining the Objet260 3DPrinter
DOC-37004 Rev.E 6-37
Toreplacetherollerscraper:
1. Prepare—
❒ anewrollerscraperblade(KIT-01026-S)
❒ aPhillips1x75mmscrewdriver
❒ M2.5andM2Hex(Allen)keys
2. RemovetherightUVlampandtherollerwastecollectorcovering(see
steps3to6onpage6-34).
3. Loosenthetwoscrewssecuringtherollerwastecollectorandpullitout.

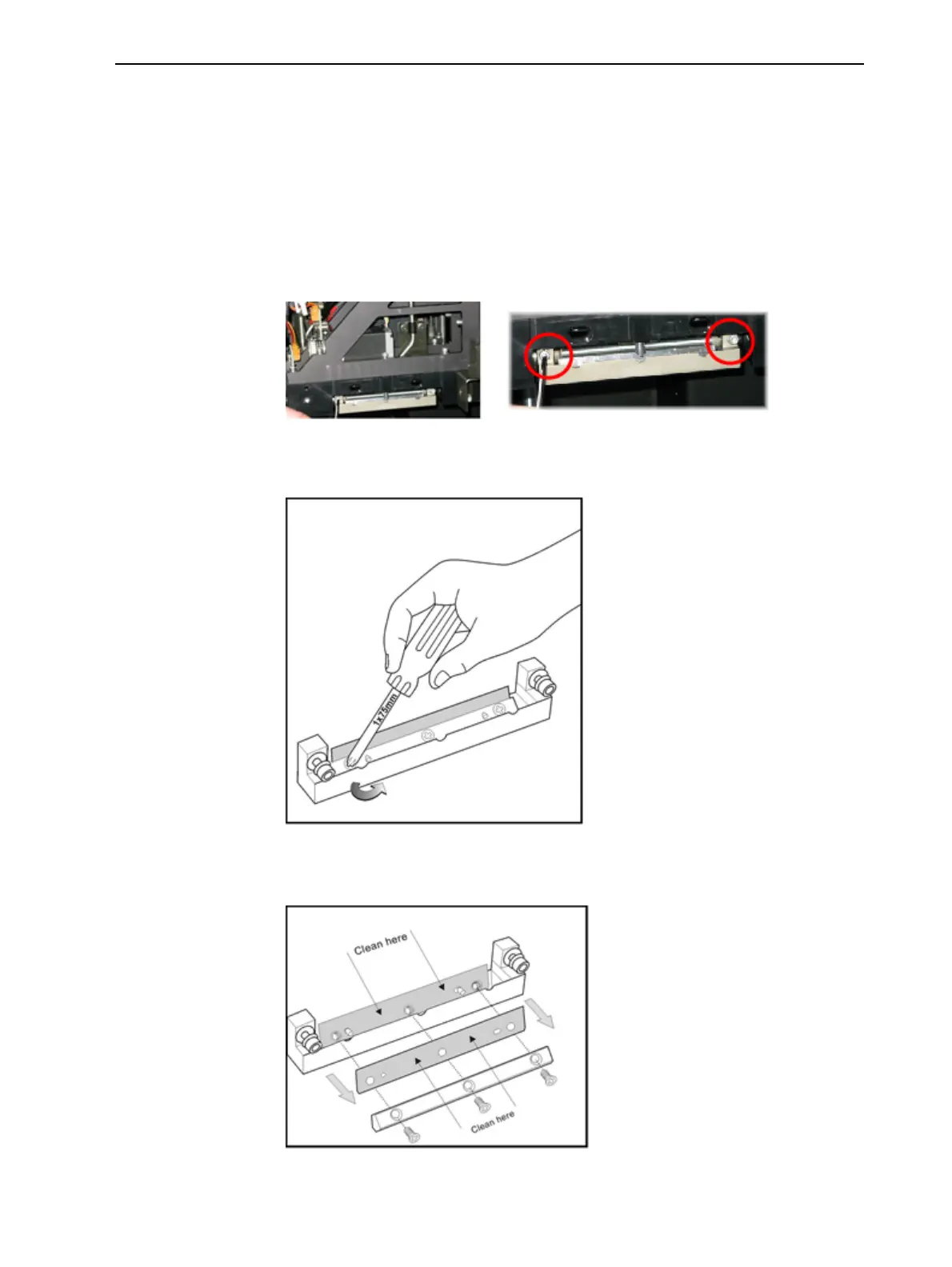

Figure6-43Removingtherollerwastecollector
4. Removethescrewsthatsecuretherollerscraperassembly.
Figure6-44Removingtherollerscraperscrews
5. Removethescraperbladeanddiscardit.
Figure6-45Removingtheoldrollerscraperblade
