Stryker S3 User Manual

24 3006-209-001 REV B www.stryker.com
Operation
Raising the lower leg section
Prop the footrest to raise the lower leg section manually.
To raise the lower leg section:
1. Grasp the lower leg section with both hands (A) (Figure 10 on page 24).
2. Swing the foot prop toward the foot end of the bed.
3. Release the foot prop when the prop rod is in the gatch bracket.
A
B

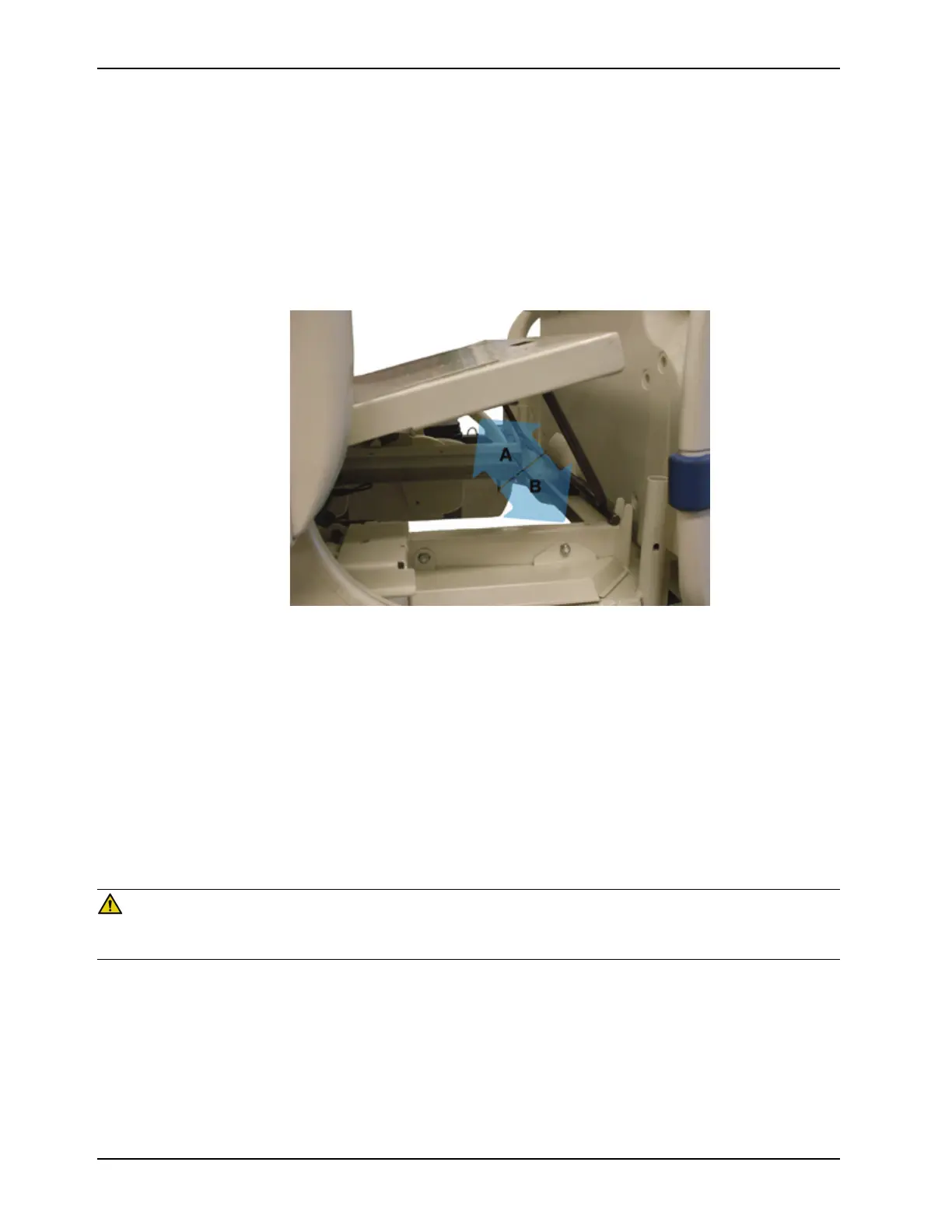

Figure 10: Raising or lowering the lower leg section
Lowering the lower leg section
Prop the footrest to lower the lower leg section manually.
To lower the lower leg section:
1. Lift up the end of the lower leg section to release the prop rod from the gatch bracket.
2. Swing the foot prop toward the head end.
3. Guide the foot prop down into the litter (B) (Figure 10 on page 24).
Attaching a fracture frame
WARNING
Use only retractable traction or fracture frames. Failure to use a retractable frame may result in injury to the patient
and/or damage to the equipment.

Stryker S3 Specifications

General

Weight Capacity	500 lbs (227 kg)
Maximum Patient Weight	500 lbs (227 kg)
Bed Frame Material	Steel
Type	Hospital Bed
Bed Width	35 inches (89 cm)
Caster Size	5 inches (12.7 cm)
Electrical Requirements	120 VAC, 60 Hz
Width	35 inches (89 cm)
Power Requirements	120 VAC, 60 Hz
Power Backup	Battery backup available
Accessories	IV pole
Siderails	Yes
