Operation
Attaching a fracture frame (Continued)
You can attach a standard fracture frame to the product using the IV sockets that are located on all four corners of the
bed. You can use IV poles with a fracture frame if you purchase the IV pole adaptor sockets (Accessories on page 64).
Securing a Foley bag to the Foley bag hooks
To secure a Foley bag to the Foley bag hook, place the hook of the Foley bag on the Foley bag hook. Make sure that
you secure the Foley bag to the Foley bag hook.
You can find two isolated Foley bag hooks under the gatch section on both sides of the product (A) (Figure 11 on page
25). If you weigh the patient with the scale system, the isolated Foley bag weight is not included with the patient weight.
There are four Foley bag hooks under the seat section (B) and foot section (C) on both sides of the product (Figure 12
on page 25). If you weigh the patient with the scale system, the Foley bag weight is included with the patient weight.

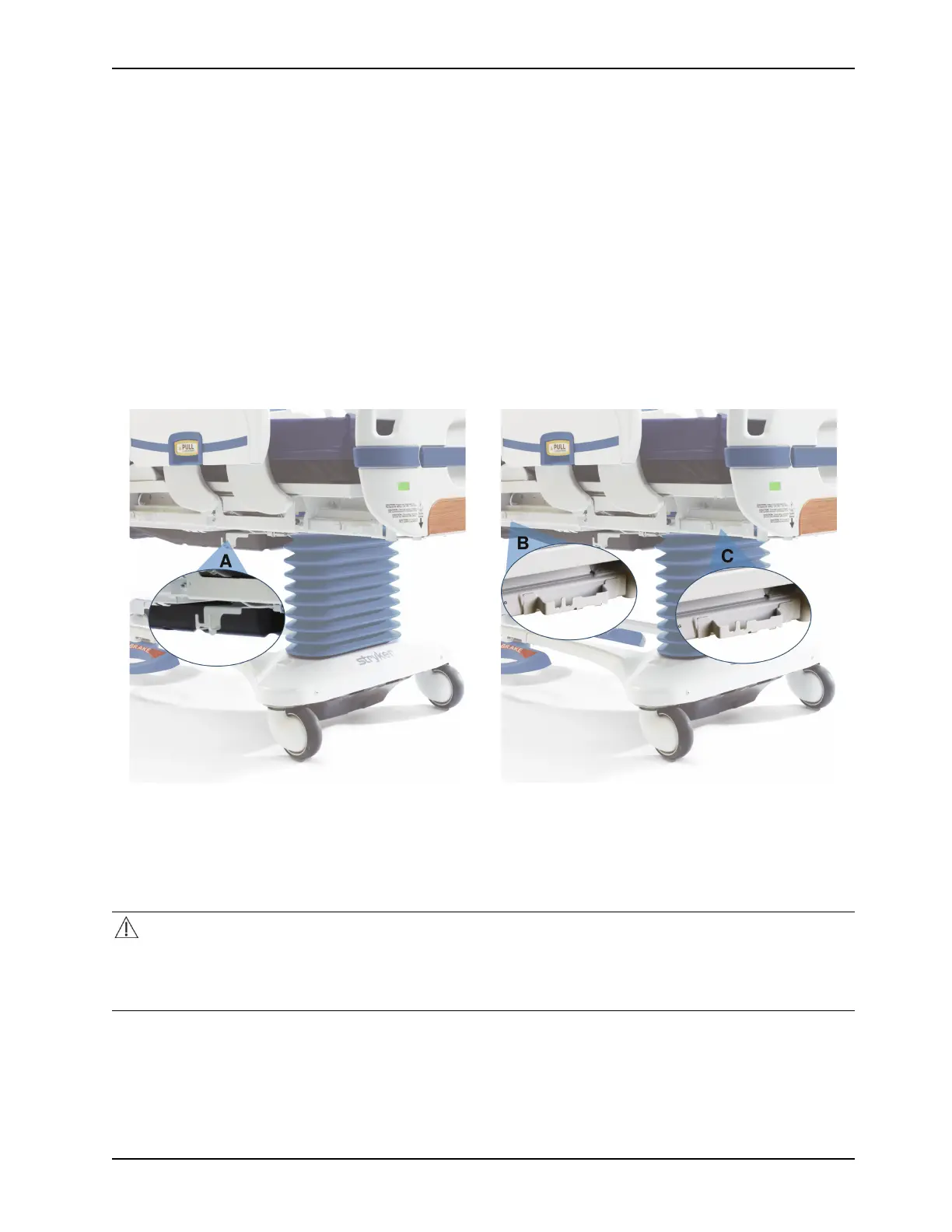

Figure 11: Isolated Foley bag hook Figure 12: Foley bag hook
Installing the patient restraint strap tie-ins
CAUTION
• Always determine the proper use of the restraint straps and restraint strap locations. Improperly adjusted restraint
straps can cause serious injury to a patient. Stryker is not responsible for the type or use of restraint straps on any
Stryker products.
