Stryker S3 - Positioning the Optional Removable IV Pole

www.stryker.com 3006-209-001 REV B 29
Operation
Positioning the optional two-stage permanently attached IV pole (Continued)
A
B
C
Figure 17: Two-stage IV pole
Positioning the optional removable IV pole
CAUTION
• Do not load the IV pole above the safe working load of 40 lb (18 kg).
1. Install the pole at any of the four receptacles of the litter, located on all four corners of the frame.

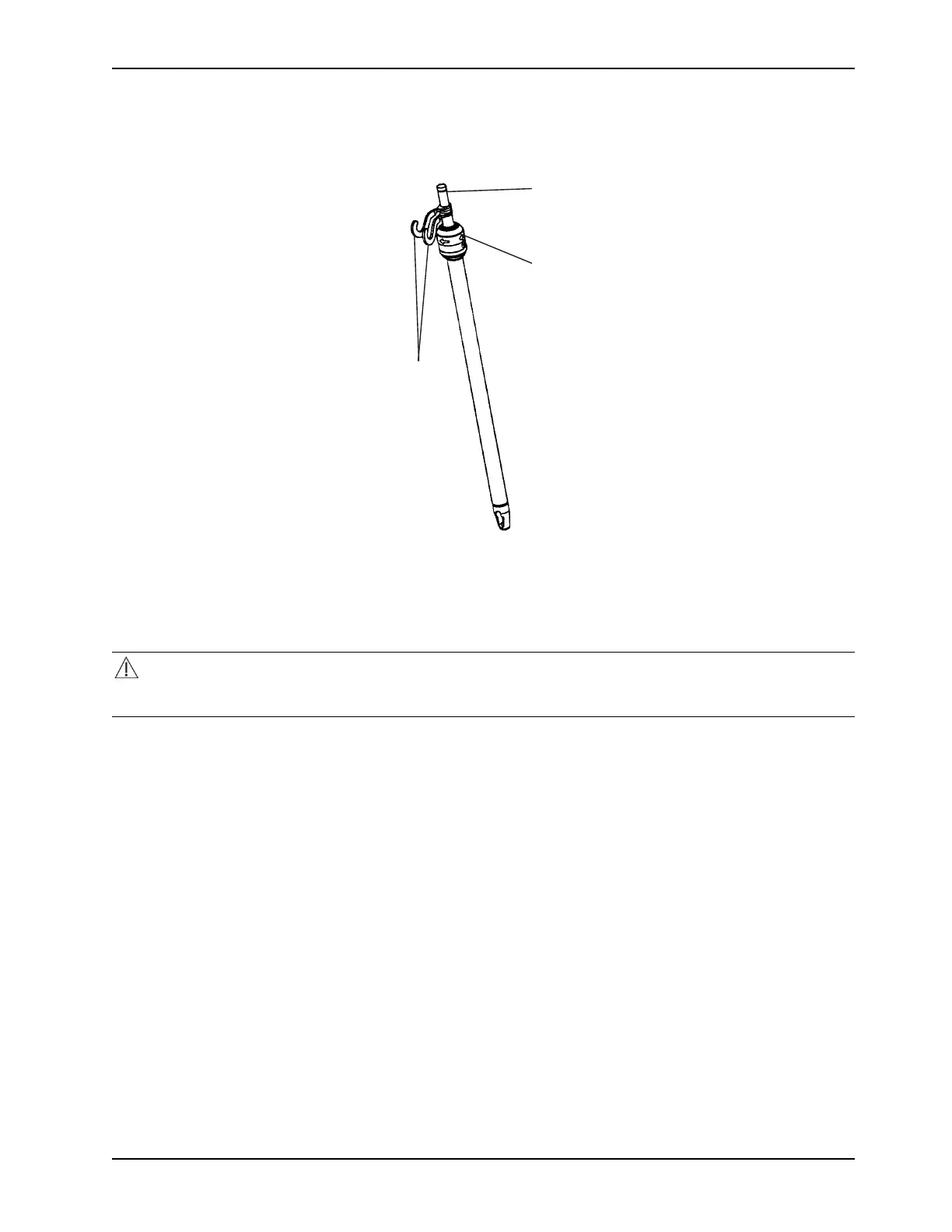

2. To raise the height of the pole, turn the knob (A) counterclockwise and pull up on the telescoping portion (B) of the
pole (Figure 18 on page 30).
3. Turn the knob (A) clockwise to tighten the telescoping portion (B) in place (Figure 18 on page 30).
