Operation
iBed Awareness (option) (Continued)

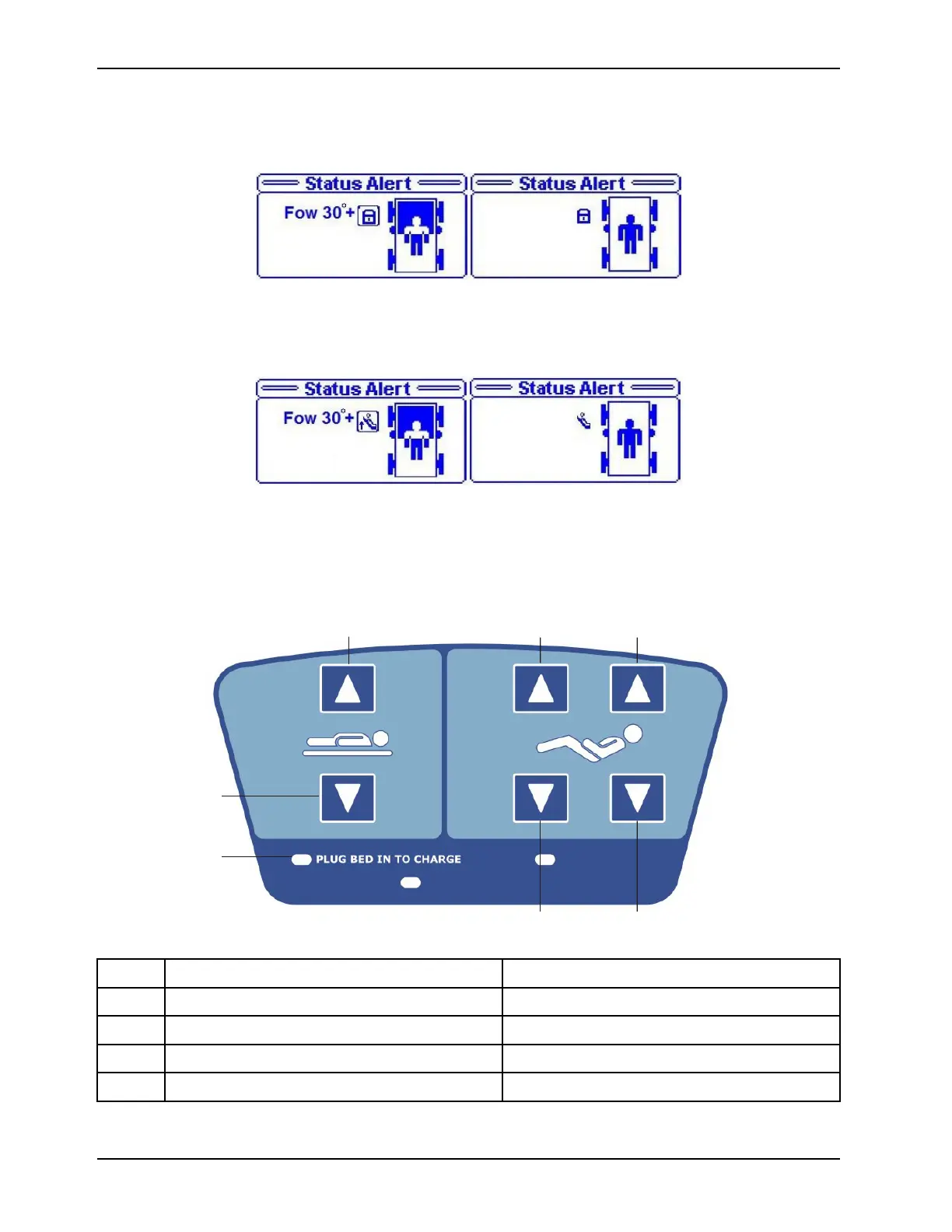

Figure 57: Fowler 30°+ lock status alert
If the Fowler 30°+ position changes (Figure 58 on page 58), return Fowler 30°+ to its original position.
Figure 58: Fowler 30°+ position status alert
Battery backup panel (option)
CA
D F
E
G
B
A
Bed height up
Raises the litter
B
Bed height down
Lowers the litter
C
Gatch up
Raises the gatch
D Gatch down
Lowers the gatch
E
Fowler up
Raises the Fowler
