www.stryker.com 3006-209-001 REV B 57
Operation
iBed Awareness (option) (Continued)
If the Low Height position changes (Figure 53 on page 57), return the product to low height (see operator control panel
or the footboard control panel).

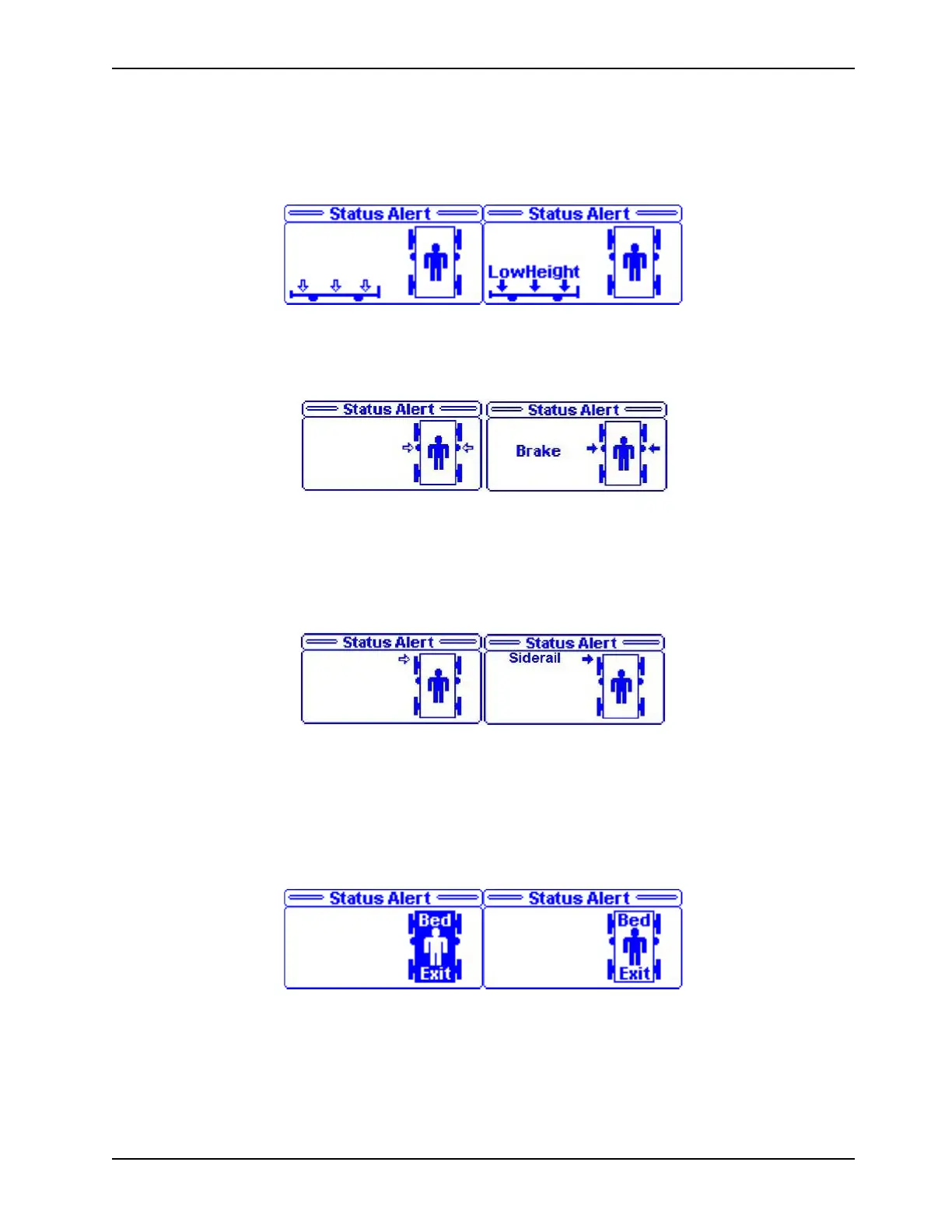

Figure 53: Low Height status alert
If the brakes are released (Figure 54 on page 57), apply the brake (see Applying or releasing the brakes on page 19).
Figure 54: Brake status alert
If a siderail position changes (Figure 55 on page 57), return the affected siderail to its original position. See Raising the
siderails on page 26 and Lowering the siderails on page 27.
Note: The arrow in the status alert points to the affected siderail.
Figure 55: Siderail status alert
If a patient moves from a Chaperone bed exit zone (Figure 56 on page 57), you must:
• disarm bed exit, see Arming or disarming Chaperone bed exit (option) on page 40 or Arming or disarming
Chaperone bed exit with zone control (option) on page 42
• disarm iBed Awareness, see Configuring iBed Awareness on page 56
Then return the patient to the product and position them to the monitored zone, arm bed exit, and arm iBed Awareness.
Figure 56: Chaperone Bed Exit status alert
If Fowler 30°+ becomes unlocked (Figure 57 on page 58), lock Fowler 30°+.
