Stryker S3 - Operator Control Panel

34 3006-209-001 REV B www.stryker.com
Operation

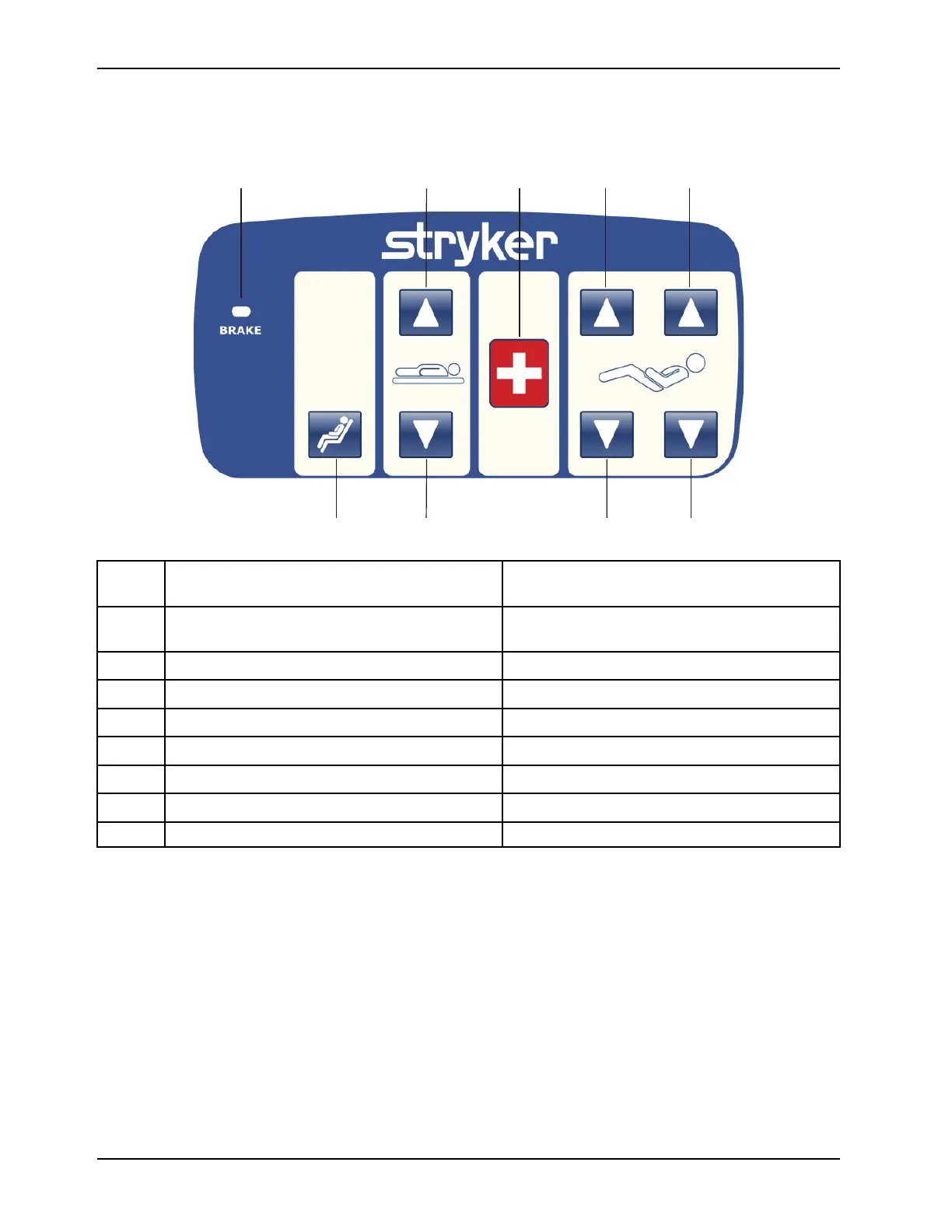

Operator control panel (outside siderail)
A
B
C
D
E F
G
H
I
A Brake LED
Flashes amber when you release the brakes. Brake
LED turns off when you apply the brakes.
B
Cardiac chair position
Press and hold to place the product into the cardiac
chair position
C
Bed height up
Raises the litter
D
Bed height down
Lowers the litter
E
Nurse call (optional)
Activates nurse call
F
Gatch up
Raises the gatch
G Gatch down
Lowers the gatch
H
Fowler up
Raises the Fowler
I Fowler down Lowers the Fowler
