Stryker S3 User Manual

62 3006-209-001 REV B www.stryker.com
Operation

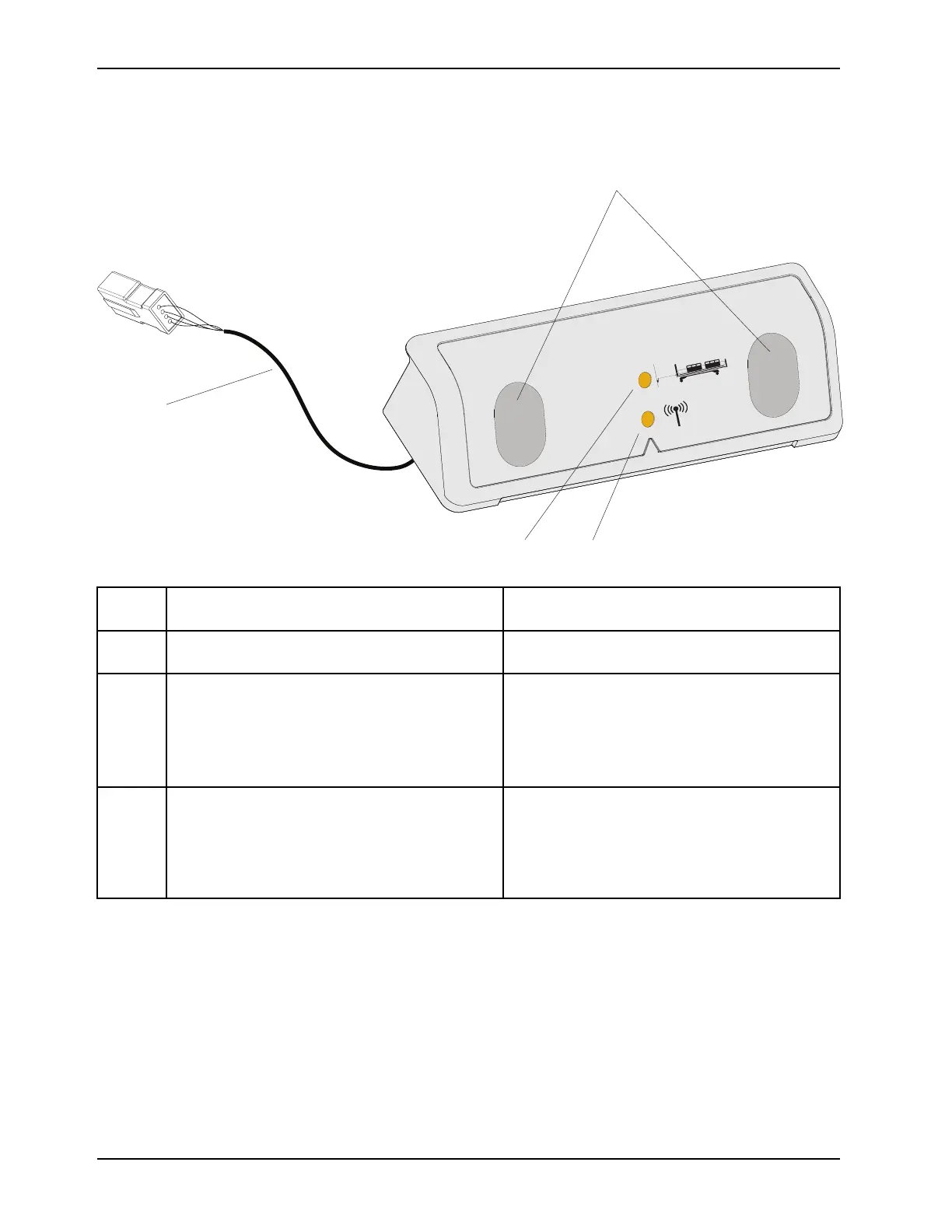

Infrared (IR) module (option)
A
B
C D
A
IR (infrared) module cable
Connects to the bed and provides power and signal
communications
B
IR (infrared) lens
Provides infrared communications with the iBed
Locator
C iBed Locator connection LED
Provides connection status for the IR (infrared)
communications with iBed Locator
Slow flash - Attempting to connect to iBed locator
Solid LED - iBed locator connected
Rapid flash - Error condition detected
Off - iBed locator is not trying to connect
D
Wireless (WiFi) connection LED
Provides connection status for wireless (WiFi)
communications with wireless access point
Slow flash - WiFi attempting to connect
Solid LED - WiFi connected
Rapid flash - WiFi was not connected after six
minutes and timed out
iBed Locator (option)
The iBed Locator provides the iBed Locator ID and battery status information to the IR module. See the iBed Locator
Instructions For Use manual for installation and operational procedures for the iBed Locator.
The IR (infrared) lens (A) provides infrared communications with the iBed IR module (Figure 59 on page 63).

Stryker S3 Specifications

General

Weight Capacity	500 lbs (227 kg)
Maximum Patient Weight	500 lbs (227 kg)
Bed Frame Material	Steel
Type	Hospital Bed
Bed Width	35 inches (89 cm)
Caster Size	5 inches (12.7 cm)
Electrical Requirements	120 VAC, 60 Hz
Width	35 inches (89 cm)
Power Requirements	120 VAC, 60 Hz
Power Backup	Battery backup available
Accessories	IV pole
Siderails	Yes
