Stryker S3 - iBed Awareness Operation

www.stryker.com 3006-209-001 REV B 59
Operation
Battery backup panel (option) (Continued)
F
Fowler down Lowers the Fowler
G
Plug bed in to charge LED
LED illuminates amber when the battery power
switch is on and the battery charge level is low

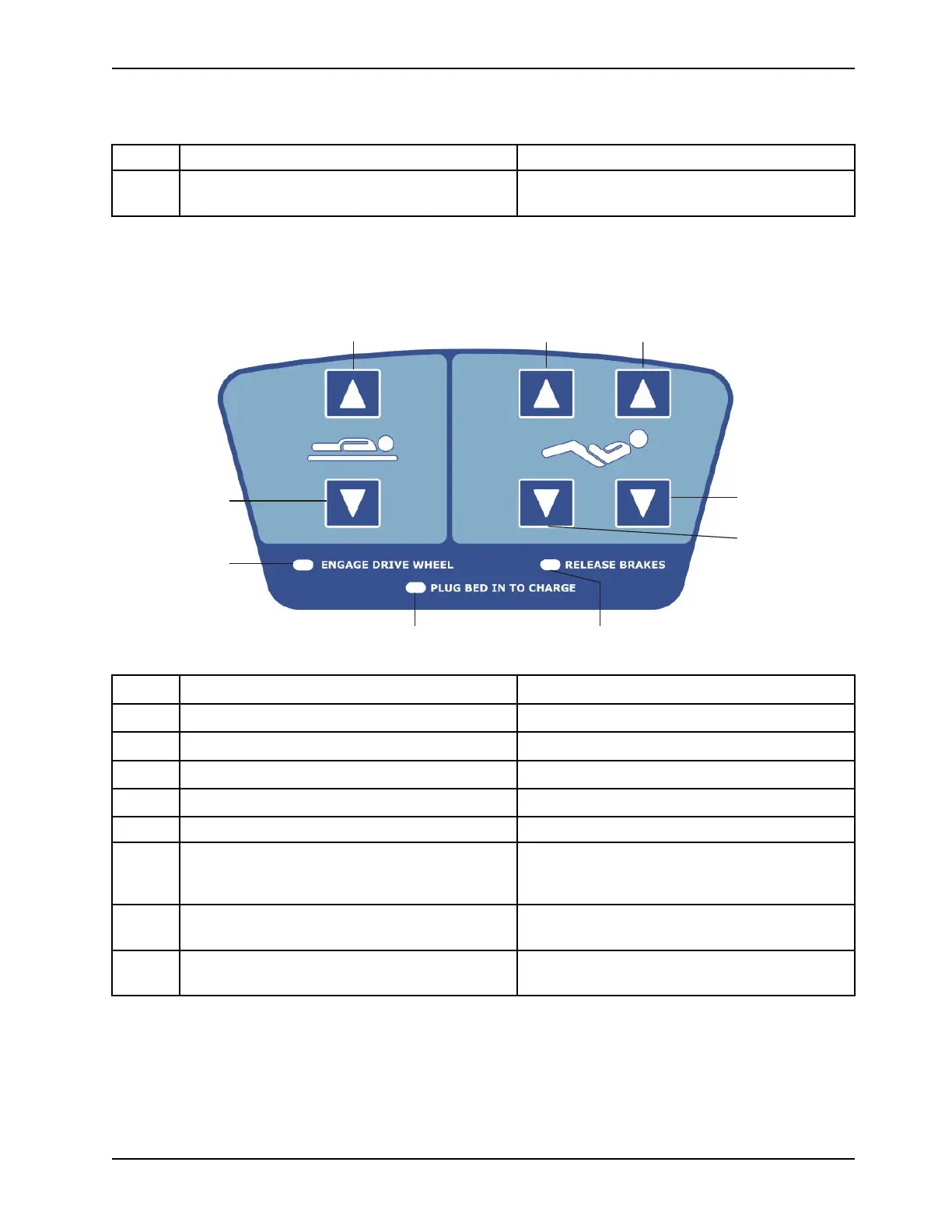

Zoom motorized drive panel (option)
CA
D
F
E
G
B
H I
A
Bed height up
Raises the litter
B
Bed height down
Lowers the litter
C
Gatch up
Raises the gatch
D Gatch down
Lowers the gatch
E
Fowler up
Raises the Fowler
F Fowler down Lowers the Fowler
G
Engage drive wheel LED
LED illuminates amber when the battery power
switch is on and the drive wheel pedal is in the
neutral position
H
Plug bed in to charge LED
LED illuminates amber when the battery power
switch is on and the battery charge level is low
I Release brakes LED
LED illuminates amber when the battery power
switch is on and the brakes are applied
