Footboard control panel - Lockouts
WARNING
• Always lock the control panel when you leave the patient unattended.
• Always lock the patient control panel when the patient's condition requires extra safety measures.
Lockouts can lock out motion control input from the operator control panel, patient control panel, and motion pendants
(optional). Bed Exit (option), scale (option), and nurse call (optional) features are still available.

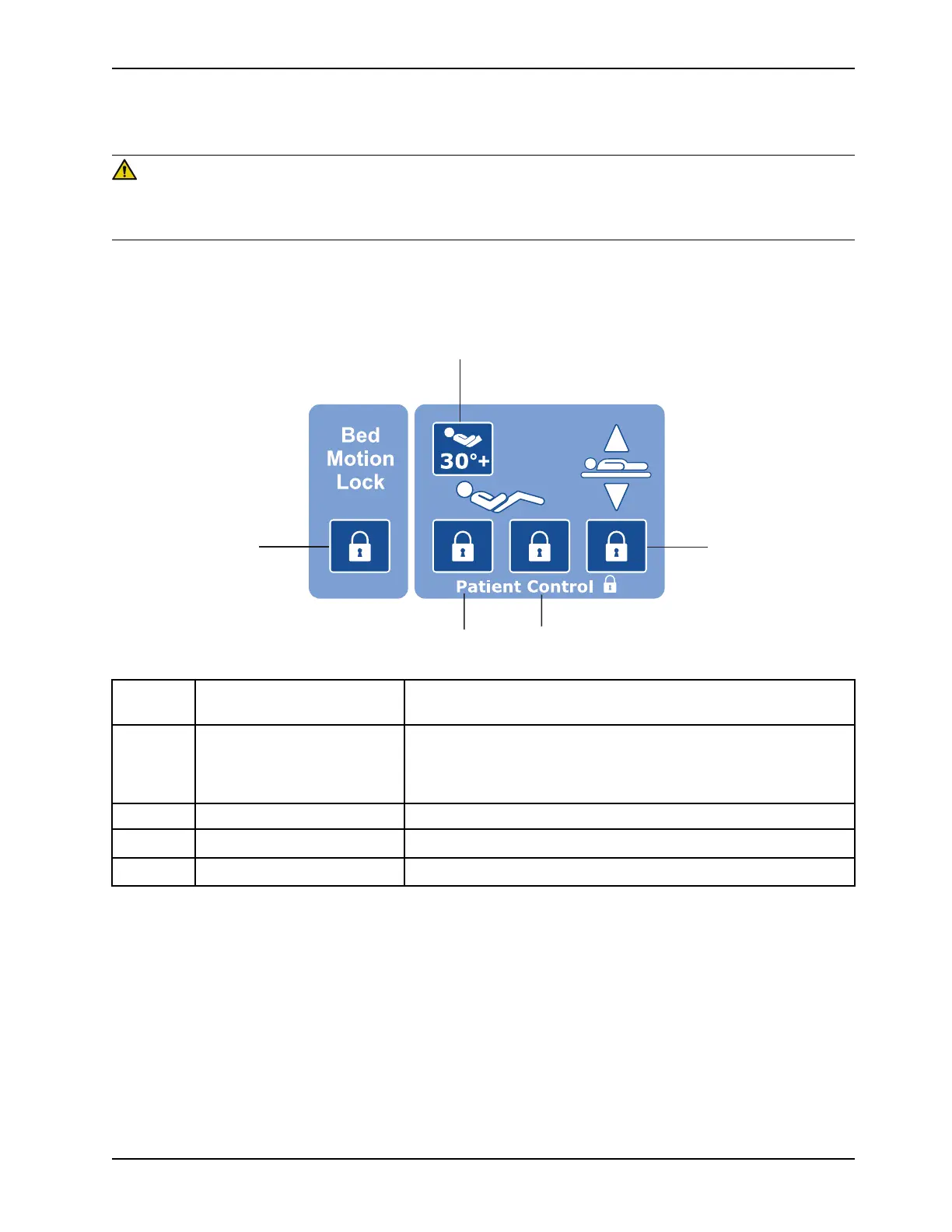

A
Bed motion lock
Locks all motion controls from the operator control panel and patient
control panel
B Fowler 30°+
Press and hold to raise and lock the Fowler at 30°.
Note: You can raise the Fowler between 30° and 60° after you lock
the Fowler at 30°+.
C Patient control Fowler lock Locks or unlocks the Fowler
D
Patient control gatch lock Locks or unlocks the gatch
E
Bed height lock
Locks or unlocks the litter
Notes
• The CPR button overrides all lockouts.
• The corresponding lock LED illuminates when you lock a motion control.
• The Bed Motion Lock footboard LED indicator illuminates when you lock bed motion.
• The Fowler 30°+ footboard LED indicator illuminates when you lock the Fowler.
• If the product is held in a specific position when a lock is enabled, the product will be locked in that position.
• Lock parameters are saved when the product is unplugged or during a power failure.
• Do not lock the control panel functions from the footboard if you must access the control panel functionality when
you remove the footboard.
